Phoenix Contact 0790621 OTTA6-P/P YE Series Yellow, 0.1 → 6mm², Single-Level, Bolt Termination
- RS Stock No.:
- 855-8614
- Mfr. Part No.:
- 0790621
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£228.05
(exc. VAT)
£273.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £228.05 | £4.561 |
*price indicative
- RS Stock No.:
- 855-8614
- Mfr. Part No.:
- 0790621
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Yellow | |
| Number of Levels | Single | |
| Voltage Rating | 800 V | |
| Series | OTTA6-P/P YE | |
| Termination Method | Bolt | |
| Cable CSA | 0.1 → 6mm² | |
| Current Rating | 41A | |
| Model Number | OTTA 6-P/P YE | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Yellow | ||
Number of Levels Single | ||
Voltage Rating 800 V | ||
Series OTTA6-P/P YE | ||
Termination Method Bolt | ||
Cable CSA 0.1 → 6mm² | ||
Current Rating 41A | ||
Model Number OTTA 6-P/P YE | ||
- COO (Country of Origin):
- IN

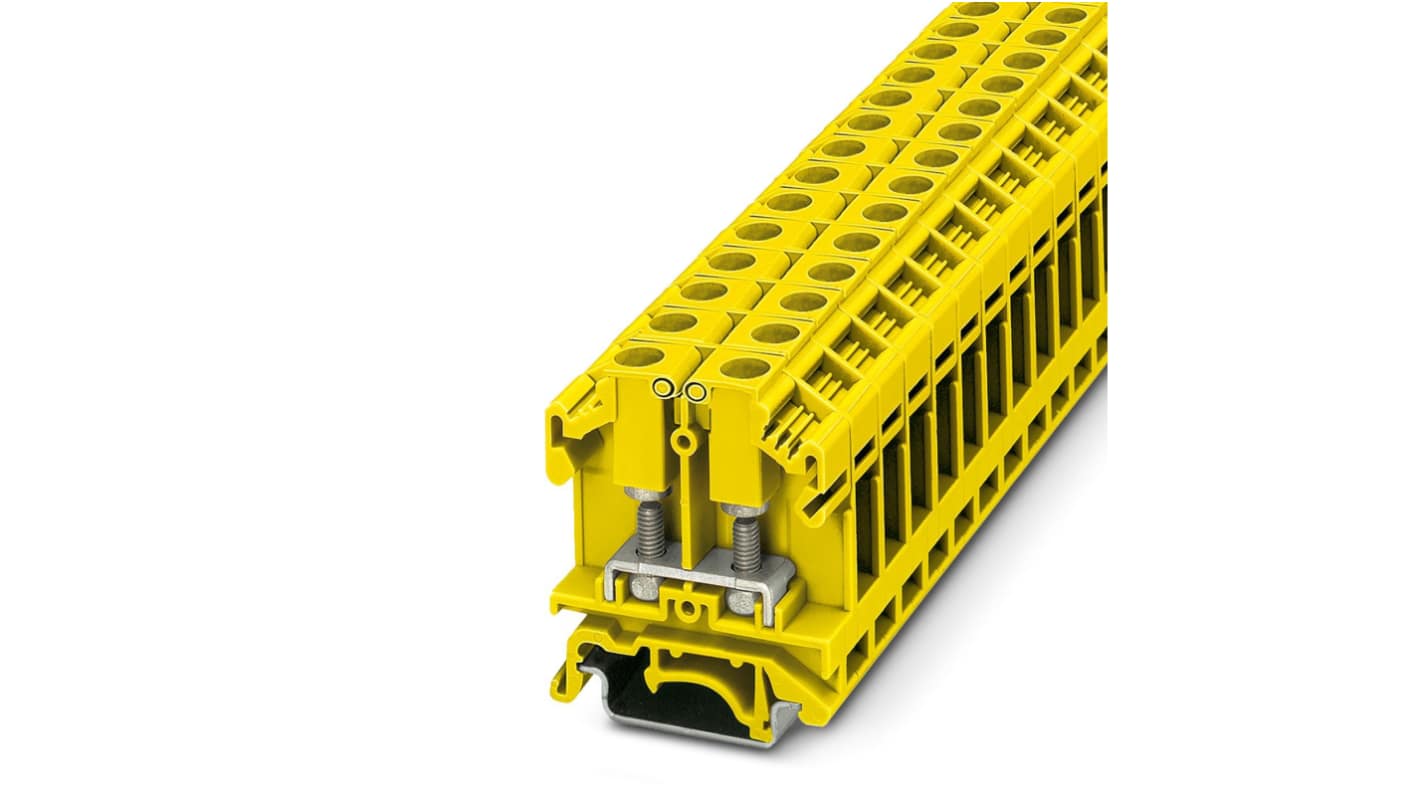

Bolt connection terminal block, With test socket screws for insertion of test plugs, nom. voltage: 800 V, nominal current: 41 A, connection method: Bolt connection, number of connections: 2, width: 11 mm, color: yellow, mounting type: NS 35/7,5, NS 35/15, NS 32
