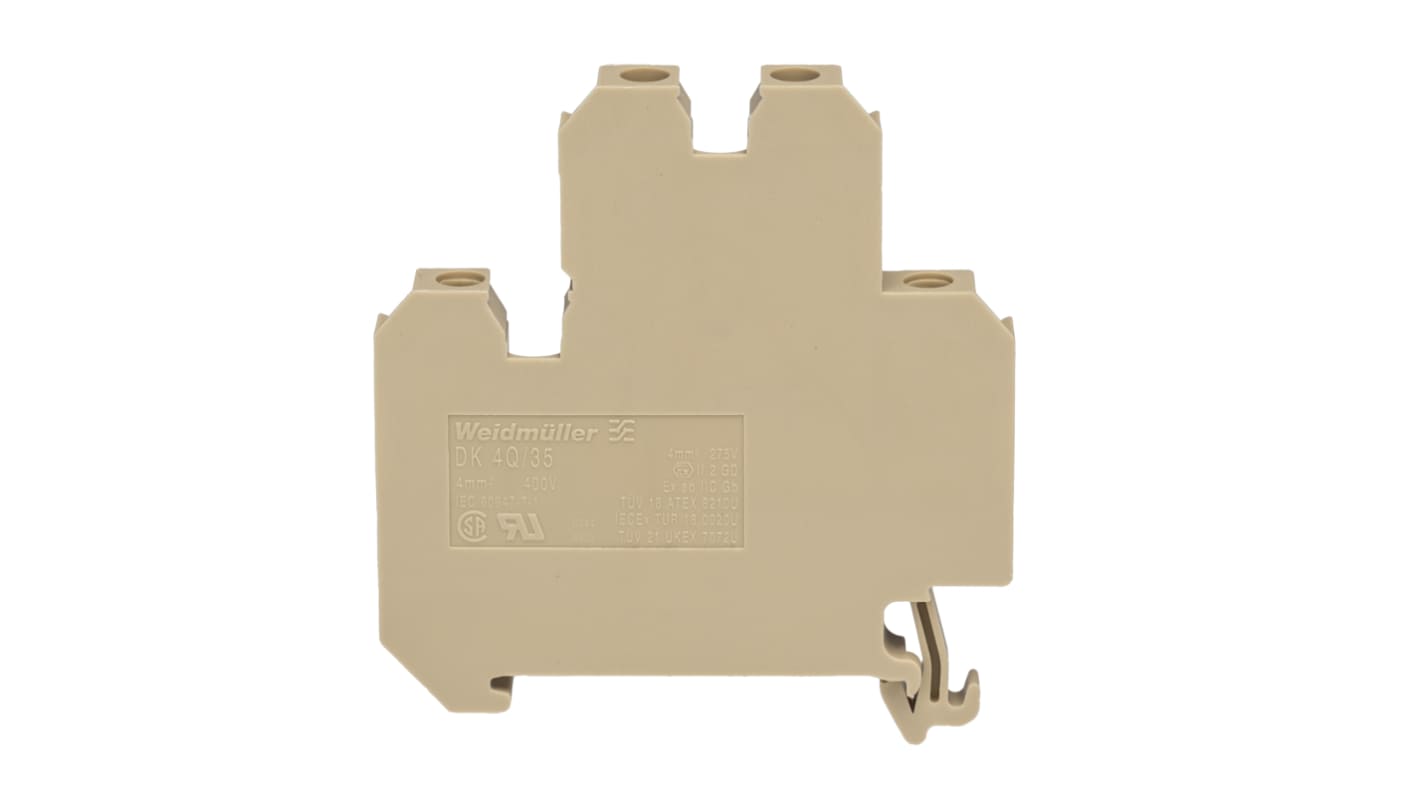

Weidmüller 0590160000 SAK Series Feed Through Terminal Block Beige, Yellow, 4mm², 2-Level, Screw
- RS Stock No.:
- 829-6600
- Distrelec Article No.:
- 304-02-308
- Mfr. Part No.:
- 0590160000
- Brand:
- Weidmüller
Subtotal (1 pack of 10 units)*
£56.26
(exc. VAT)
£67.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 176 unit(s) ready to ship
- Plus 60 unit(s) shipping from 30 June 2026
- Plus 60 unit(s) shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £56.26 | £5.626 |
*price indicative
- RS Stock No.:
- 829-6600
- Distrelec Article No.:
- 304-02-308
- Mfr. Part No.:
- 0590160000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Beige, Yellow | |
| Product Type | Feed Through Terminal Block | |
| Number of Levels | 2 | |
| Voltage | 500V | |
| Series | SAK | |
| Cable CSA | 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Pitch | 6mm | |
| Terminal Block Current | 32A | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -50°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | IEC 60947-7-1 | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Beige, Yellow | ||
Product Type Feed Through Terminal Block | ||
Number of Levels 2 | ||
Voltage 500V | ||
Series SAK | ||
Cable CSA 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 12AWG | ||
Pitch 6mm | ||
Terminal Block Current 32A | ||
Termination Type Screw | ||
Minimum Operating Temperature -50°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals IEC 60947-7-1 | ||
- COO (Country of Origin):
- CN
Weidmuller Feed-Through Terminal Block, 26 to 12AWG Wire Size Range, 8mm Stripping Length - SAK Series - DK 4Q/35
Streamline your connections by routing wires through this feed-through terminal block from Weidmuller. The module's two-tier design allows you to connect multiple wires in a stacked configuration, keeping your setup neat and tidy. You can mount the block in a snap by simply clipping it onto a TS 35 DIN rail, saving you time and effort during installation. Its PA66 construction holds its own against chemicals and UV light, so you can depend on it in challenging settings.
Features & Benefits
• Screw terminals for reliable and convenient wiring
• Performs reliably at temperatures between -50°C and +100°C for use in harsh environments
• Slim dimensions of 54 (H) x 6 (W) x 59.9mm (D) to maximise space on your rail
Applications
• Control panels
• Power distribution
• Telecommunications
• Amplifiers
How much does this terminal block weigh?
It weighs less than 4g, so it places minimal strain on your equipment.
What's the current rating of this device?
The block has a current rating of 32A, so it's a good choice for medium-duty applications.
