Weidmuller 1820840000 W Series Dark Beige, 70mm², Single-Level, Screw Termination

View all DIN Rail Terminal Blocks

Subtotal (1 unit)*

£8.89

(exc. VAT)

£10.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 116 unit(s) ready to ship
  • Plus 13 unit(s) ready to ship from another location
  • Plus 120 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£8.89

*price indicative

Sponsored
Weidmuller Jumper Bars
Weidmuller Jumper Bars
Weidmuller jumper bars are valued for their reliability, durability, and ease of use in a wide range of electrical applications
Explore Weidmuller Jumper Bars
RS Stock No.:
826-3145
Mfr. Part No.:
1820840000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Colour

Dark Beige

Number of Levels

Single

Voltage Rating

1 kV

American Wire Gauge

8 → 0AWG

Series

W

Termination Method

Screw

Cable CSA

70mm²

Current Rating

150A

Minimum Operating Temperature

-50°C

Maximum Operating Temperature

+120°C

Standards Met

CE, RoHS

Model Number

WDU 50N

COO (Country of Origin):
RO

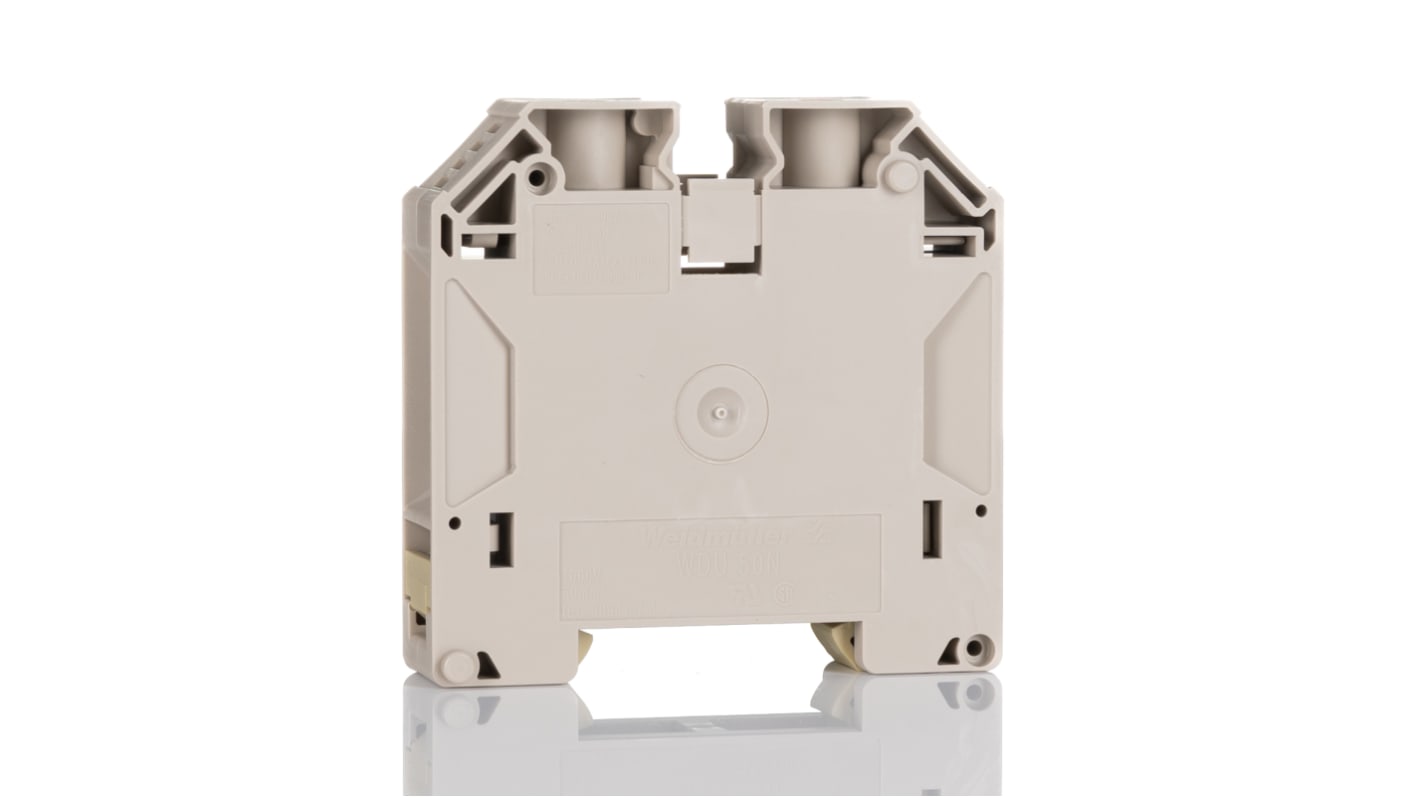

Weidmuller Feed-Through Terminal Block, 8 to 0AWG Wire Size Range, 150A Current Rating - W Series - WDU 50N -1820840000


Need a way to protect and connect the wiring in your electrical setup? This feed-through terminal block from Weidmuller covers all your bases. It has closed sides to protect your cables from interference and keep a lid on dust and moisture. The product is an ideal choice for high-power applications thanks to its hefty voltage rating of 1kV. This component's screw terminals offer a simple and secure wiring solution to prevent you from going around the twist during installation.

Features & Benefits


• Safe for use in explosive environments
• Self-extinguishing for safety in the event of a fire
• Wemid housing offers resistance to impact, heat and abrasion for long-term performance
• Compact dimensions of 70 (H) x 18.5 (W) x 69.6mm (D) for installation in tight areas

Applications


• Industrial automation
• Robotics
• Sensors and motors

How environmentally friendly is this product?


This component is free from harmful elements like cadmium and halogen, making it a greener choice.

What temperatures can this block withstand?


It has a wide operating temperature range between -50°C and +120°C, so it's suitable for use in demanding industrial settings.


The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
