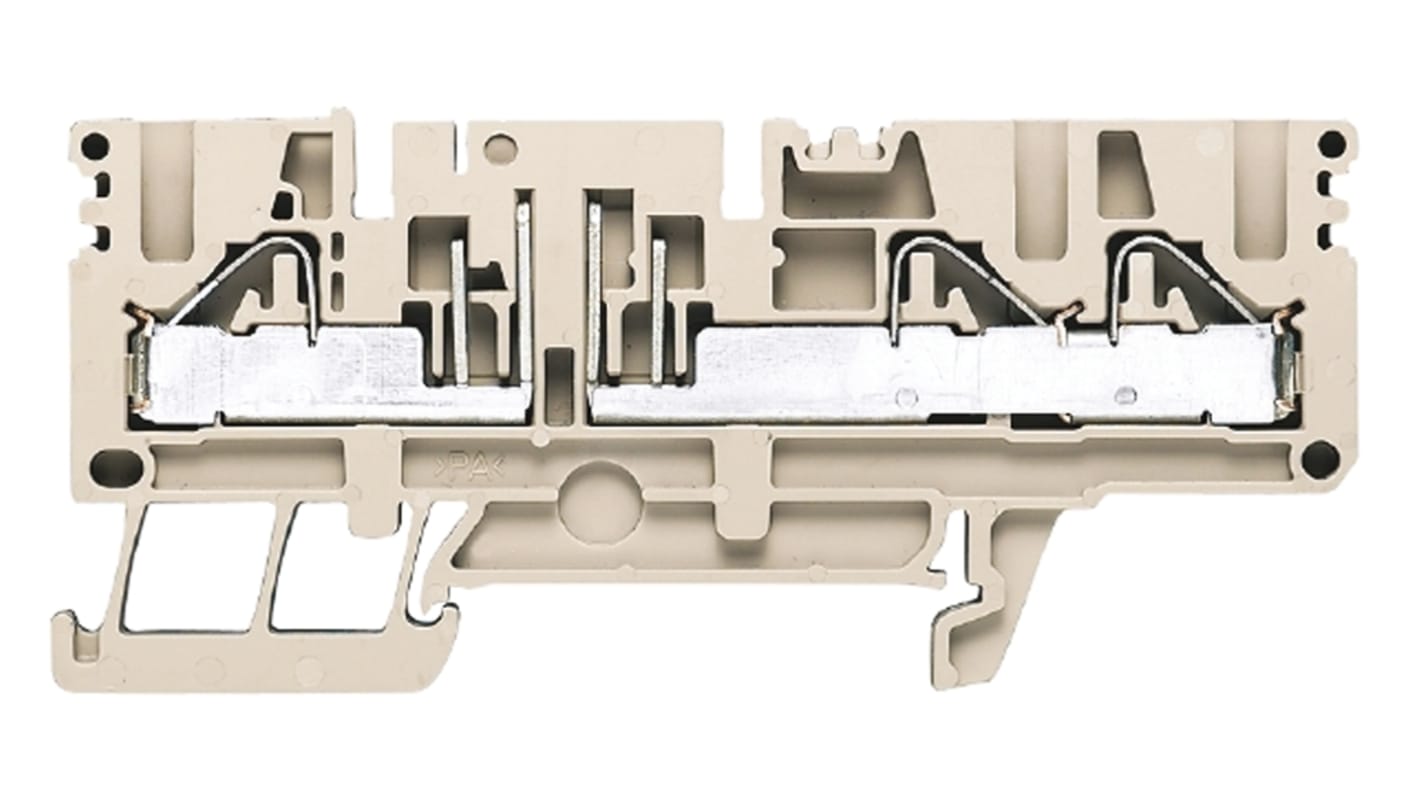

Weidmuller 1933990000 P Series Dark Beige, 0.5 → 6mm², Single-Level, Push In Termination
- RS Stock No.:
- 824-0032
- Mfr. Part No.:
- 1933990000
- Brand:
- Weidmüller
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 824-0032
- Mfr. Part No.:
- 1933990000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Colour | Dark Beige | |
| Number of Levels | Single | |
| Series | P | |
| Termination Method | Push In | |
| Cable CSA | 0.5 → 6mm² | |
| Fused | No | |
| Voltage Rating | 500 V | |
| Current Rating | 24A | |
| Pitch | 5.1mm | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +120°C | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Colour Dark Beige | ||
Number of Levels Single | ||
Series P | ||
Termination Method Push In | ||
Cable CSA 0.5 → 6mm² | ||
Fused No | ||
Voltage Rating 500 V | ||
Current Rating 24A | ||
Pitch 5.1mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +120°C | ||
- COO (Country of Origin):
- DE
PTR Test Disconnect Terminal Blocks
Weidmuller PTR Series disconnect-test terminals with push in connections can be combined with fuse holders, component plugs and isolating plugs. The direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types.
Features and Benefits
• Continuous operating temperature -50 °C to 120 °C
• Spring connection with push in technology
• Direct insertion
P Series
