- RS Stock No.:
- 823-9663
- Mfr. Part No.:
- 7910270000
- Brand:
- Weidmüller
686 In stock - FREE next working day delivery available
45 available from Europe for delivery within 2 working day(s).
Price Each
£3.90
(exc. VAT)
£4.68
(inc. VAT)
Units | Per unit |
---|---|
1 - 5 | £3.90 |
6 - 11 | £3.71 |
12 + | £3.52 |
- RS Stock No.:
- 823-9663
- Mfr. Part No.:
- 7910270000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- RO
Product Details

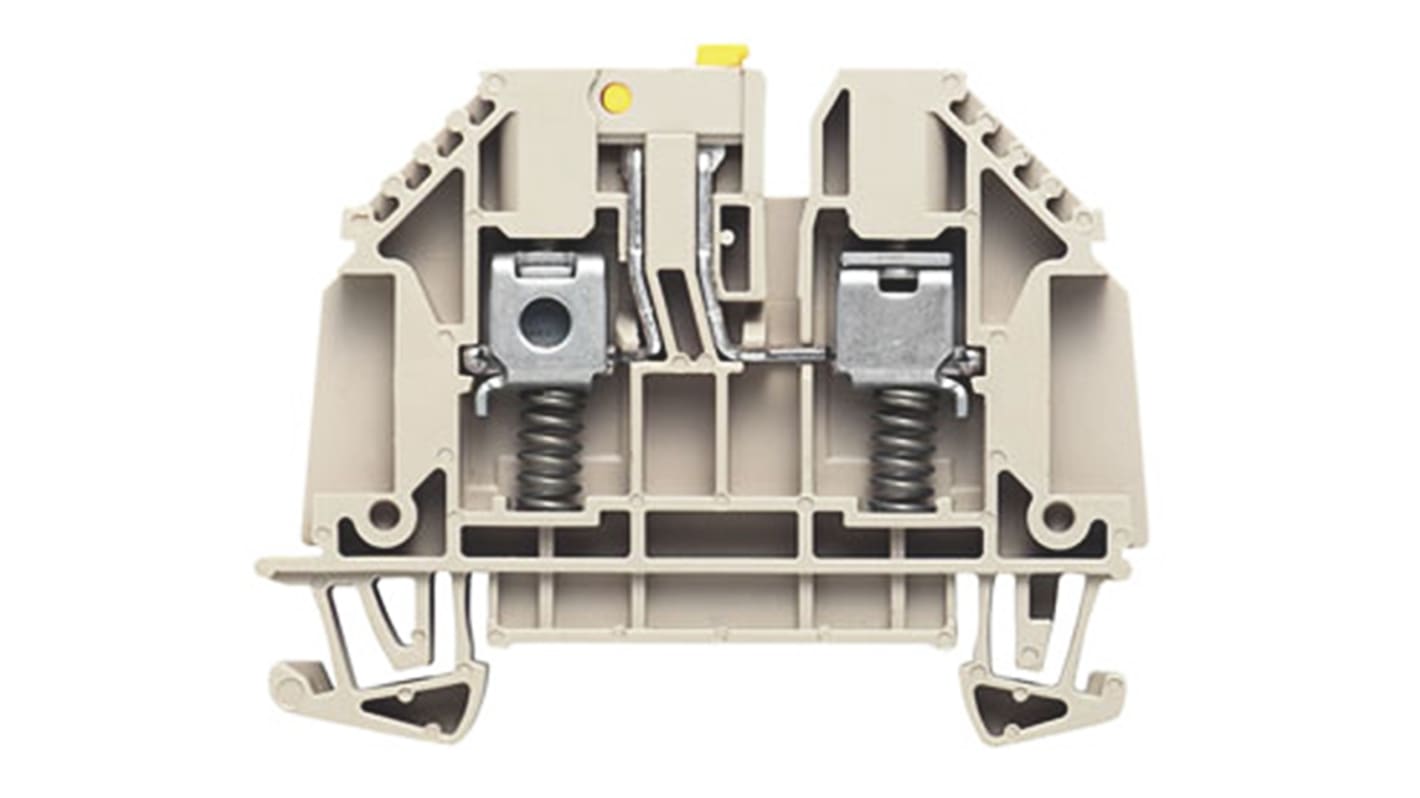

WTR Feed-Through Terminals
W-Series (WTR) test-disconnect terminal.
Rated cross-section: 4 mm²
Screw connection
Screw connection
The W series screw clamp terminals are suitable for Top Hat DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric Top Hat rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Attribute | Value |
---|---|
Colour | Beige |
Number of Levels | Single |
American Wire Gauge | 26 → 10AWG |
Series | W |
Termination Method | Screw |
Voltage Rating | 500 V |
Current Rating | 32A |
Pitch | 6.1mm |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +120°C |
