Wieland 56.203.9055.0 WTP 2.5/4 PE Series Earth Terminal Block Green, Yellow, 2.5mm², 1-Level, Plug-In, ATEX
- RS Stock No.:
- 811-3930
- Mfr. Part No.:
- 56.203.9055.0
- Brand:
- Wieland

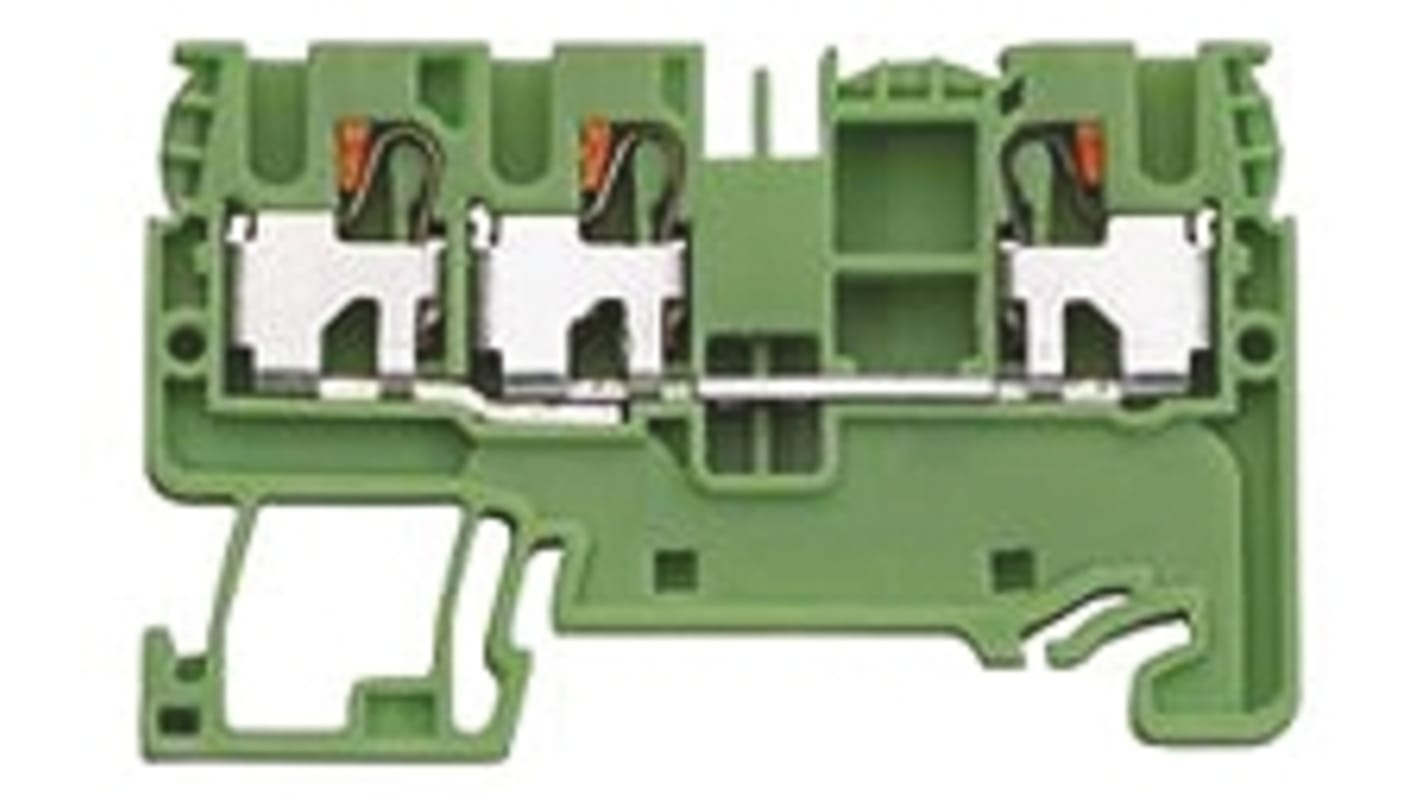

Image representative of range
Subtotal (1 pack of 5 units)*
£16.94
(exc. VAT)
£20.33
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- Final 35 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.388 | £16.94 |
*price indicative
- RS Stock No.:
- 811-3930
- Mfr. Part No.:
- 56.203.9055.0
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Product Type | Earth Terminal Block | |
| Colour | Green, Yellow | |
| Number of Positions | 2 | |
| Number of Levels | 1 | |
| Series | WTP 2.5/4 PE | |
| Voltage | 800V | |
| Minimum Wire Size AWG | 24AWG | |
| Cable CSA | 2.5mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Pitch | 5mm | |
| Minimum Operating Temperature | 120°C | |
| Termination Type | Plug-In | |
| Hazardous Area Certification | ATEX | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | CSA, GL, VDE | |
| Select all | ||
|---|---|---|
Brand Wieland | ||
Product Type Earth Terminal Block | ||
Colour Green, Yellow | ||
Number of Positions 2 | ||
Number of Levels 1 | ||
Series WTP 2.5/4 PE | ||
Voltage 800V | ||
Minimum Wire Size AWG 24AWG | ||
Cable CSA 2.5mm² | ||
Maximum Wire Size AWG 12AWG | ||
Pitch 5mm | ||
Minimum Operating Temperature 120°C | ||
Termination Type Plug-In | ||
Hazardous Area Certification ATEX | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals CSA, GL, VDE | ||
- COO (Country of Origin):
- IN
WTP 2.5/4 Feed-Through Terminals
Feed-through DIN rail terminal block with push in spring connection for mounting on TS 35
Nominal cross section 2.5 and 4 mm²
Width 5mm
For the compatible WTP 2.5/4 earth (ground) block, please see RS 811-3930
