Wieland WT 10 Series Grey Feed Through Terminal Block, Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 811-3810
- Mfr. Part No.:
- 58.510.0055.0
- Brand:
- Wieland
Available to back order for despatch 02/05/2024
Added
Price Each (In a Pack of 5)
£1.674
(exc. VAT)
£2.009
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 25 | £1.674 | £8.37 |
| 30 - 55 | £1.588 | £7.94 |
| 60 + | £1.524 | £7.62 |
| *price indicative | ||
- RS Stock No.:
- 811-3810
- Mfr. Part No.:
- 58.510.0055.0
- Brand:
- Wieland
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

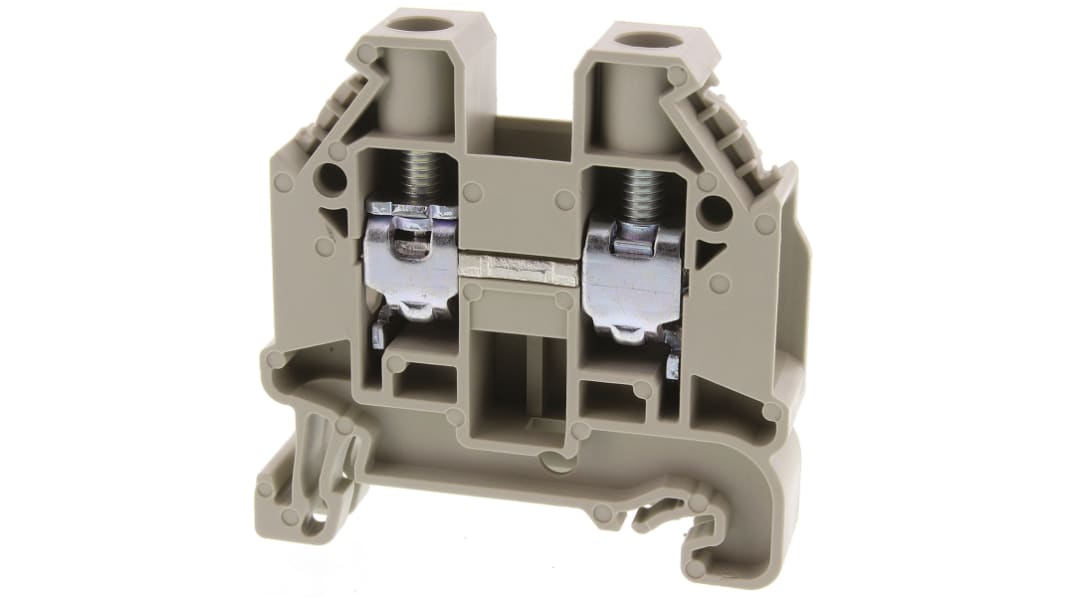

WT 10 Feed-Through Terminals and Earth Terminal
Feed through block with screw connection for mounting on TS35
Nominal cross section: 10 mm²
Maximum current: 76A/16 mm²
Connection capacity: 2 wires, equal size 0.5 - 6 mm²
For the compatible WT 10 PE earth (ground) block, please see RS 811-3823
Nominal cross section: 10 mm²
Maximum current: 76A/16 mm²
Connection capacity: 2 wires, equal size 0.5 - 6 mm²
For the compatible WT 10 PE earth (ground) block, please see RS 811-3823
Selos
Specifications
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Single |
| American Wire Gauge | 20 → 6AWG |
| Series | WT 10 |
| Termination Method | Screw |
| Current Rating | 57A |
| Voltage Rating | 1 kV |
| Pitch | 10mm |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX |
| Standards Met | CSA, GL, VDE |
