Phoenix Contact 3046388 UT 2.5-TG Series Grey, 2.5mm², Single-Level, Screw Termination
- RS Stock No.:
- 804-3288
- Mfr. Part No.:
- 3046388
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£2.07
(exc. VAT)
£2.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 225 unit(s) ready to ship
- Plus 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.07 |
*price indicative
- RS Stock No.:
- 804-3288
- Mfr. Part No.:
- 3046388
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Voltage Rating | 400 V | |
| American Wire Gauge | 26 → 12AWG | |
| Series | UT 2.5-TG | |
| Termination Method | Screw | |
| Cable CSA | 2.5mm² | |
| Current Rating | 20A | |
| Maximum Operating Temperature | +120°C | |
| Model Number | UT 2,5-TG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Voltage Rating 400 V | ||
American Wire Gauge 26 → 12AWG | ||
Series UT 2.5-TG | ||
Termination Method Screw | ||
Cable CSA 2.5mm² | ||
Current Rating 20A | ||
Maximum Operating Temperature +120°C | ||
Model Number UT 2,5-TG | ||
- COO (Country of Origin):
- DE

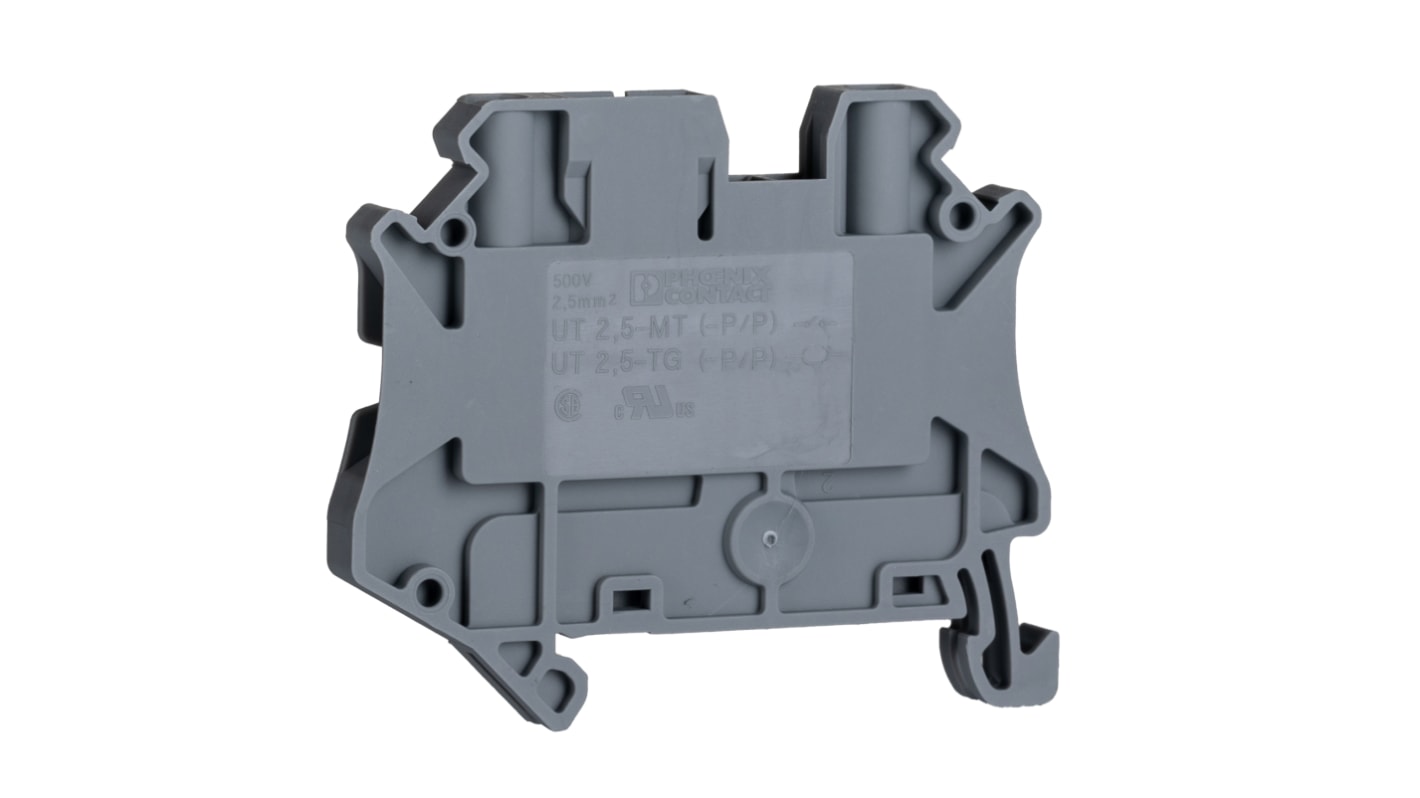

Phoenix Contact UT 2.5-TG Series Disconnect Terminal Block, 20A - 3046388
This disconnect terminal block is designed for precision in various electrical applications. Its compact form and sturdy build make it suitable for use in automation, electronics, and mechanical sectors. The device ensures safe and efficient operations while providing reliable connections and managing high voltage.
Features & Benefits
• Single-level design simplifies installation and maintenance
• Screw termination enhances connection reliability and stability
• Rated for 20A, suitable for a range of electrical tasks
• Compatible with AWG wires, increasing versatility across projects
• Screw termination enhances connection reliability and stability
• Rated for 20A, suitable for a range of electrical tasks
• Compatible with AWG wires, increasing versatility across projects
Applications
• Utilised in plant engineering for efficient electrical connections
• Appropriate for machine building where dependable performance is essential
• Effective in railway industry setups adhering to high safety standards
• Used in automation systems that require robust electrical connections
• Appropriate for machine building where dependable performance is essential
• Effective in railway industry setups adhering to high safety standards
• Used in automation systems that require robust electrical connections
Can this device handle multiple conductor types?
It accommodates both rigid and flexible conductors, enhancing versatility.
What is the appropriate tightening torque for installation?
A tightening torque between 0.5Nm and 0.6Nm is required for installation.
Is it suitable for outdoor use?
While the operating temperature range supports various environmental conditions, specific outdoor considerations should be assessed.
Phoenix Contact CLIPLINE UT Range
