Phoenix Contact 3000540 UK 5-HESILED 24 N Series Black, 0.2 → 6mm², Single-Level, Screw Termination, Fused
- RS Stock No.:
- 804-1239
- Mfr. Part No.:
- 3000540
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£507.95
(exc. VAT)
£609.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 50 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £10.159 | £507.95 |
*price indicative
- RS Stock No.:
- 804-1239
- Mfr. Part No.:
- 3000540
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Black | |
| Number of Levels | Single | |
| American Wire Gauge | 24 → 10AWG | |
| Series | UK 5-HESILED 24 N | |
| Voltage Rating | 24 V | |
| Termination Method | Screw | |
| Cable CSA | 0.2 → 6mm² | |
| Fused | Yes | |
| Current Rating | 6.3A | |
| Pitch | 8.2mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +105°C | |
| Standards Met | EAC | |
| Model Number | UK 5-HESILED 24 N | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Black | ||
Number of Levels Single | ||
American Wire Gauge 24 → 10AWG | ||
Series UK 5-HESILED 24 N | ||
Voltage Rating 24 V | ||
Termination Method Screw | ||
Cable CSA 0.2 → 6mm² | ||
Fused Yes | ||
Current Rating 6.3A | ||
Pitch 8.2mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +105°C | ||
Standards Met EAC | ||
Model Number UK 5-HESILED 24 N | ||
- COO (Country of Origin):
- CN

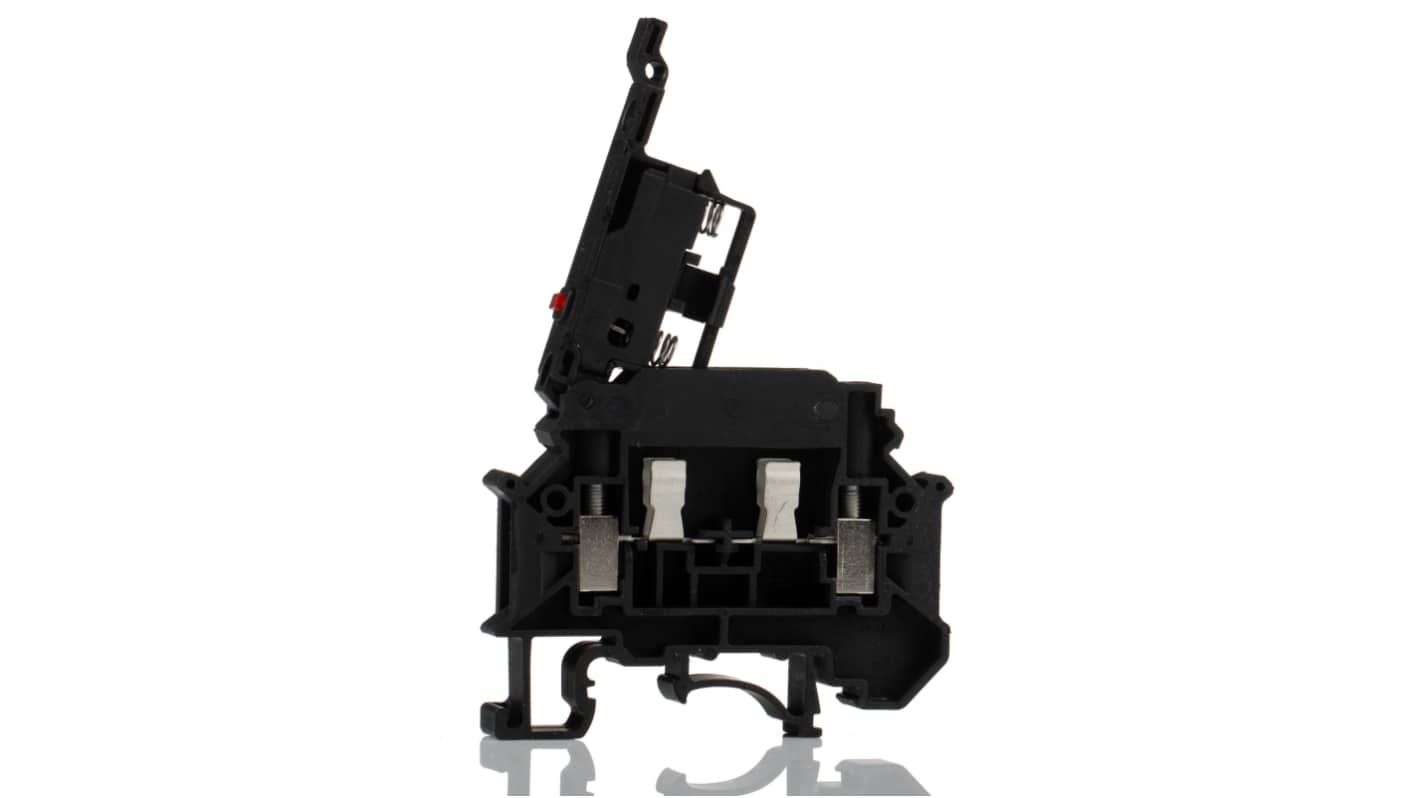

Phoenix Contact Fused DIN Rail Terminal, Screw Connection Type, 0.2 to 6mm² Conductor Size - UK 5-HESILED 24 N - 3000540
Protect sensitive electrical components from short circuits and overvoltage with this fused DIN rail terminal from Phoenix Contact. The integrated glass fuse blows in the event of a surge in current, helping to safeguard your equipment against damage. As the PA housing is resistant to heat and wear, this is a durable choice for long-lasting use in harsh conditions.
For ease of installation, this terminal is designed for mounting on a DIN rail. Its compact dimensions of 58 (L) x 8.2 (W) x 58mm (H) mean it won't take up too much space in your setup. Components like this are commonly used to protect critical sensor or relay devices in energy management systems and electrical installations.
For ease of installation, this terminal is designed for mounting on a DIN rail. Its compact dimensions of 58 (L) x 8.2 (W) x 58mm (H) mean it won't take up too much space in your setup. Components like this are commonly used to protect critical sensor or relay devices in energy management systems and electrical installations.
Features & Benefits
• Flammability rating of UL94 V0 means burning stops in 10 seconds or less for safety in the event of a fire
• Screw terminals for secure electrical connections, even in vibrating equipment
• Accommodates wires ranging in size from 0.2 to 6mm² for versatility
• LED indicator lets you monitor its operating status at a glance
• Screw terminals for secure electrical connections, even in vibrating equipment
• Accommodates wires ranging in size from 0.2 to 6mm² for versatility
• LED indicator lets you monitor its operating status at a glance
