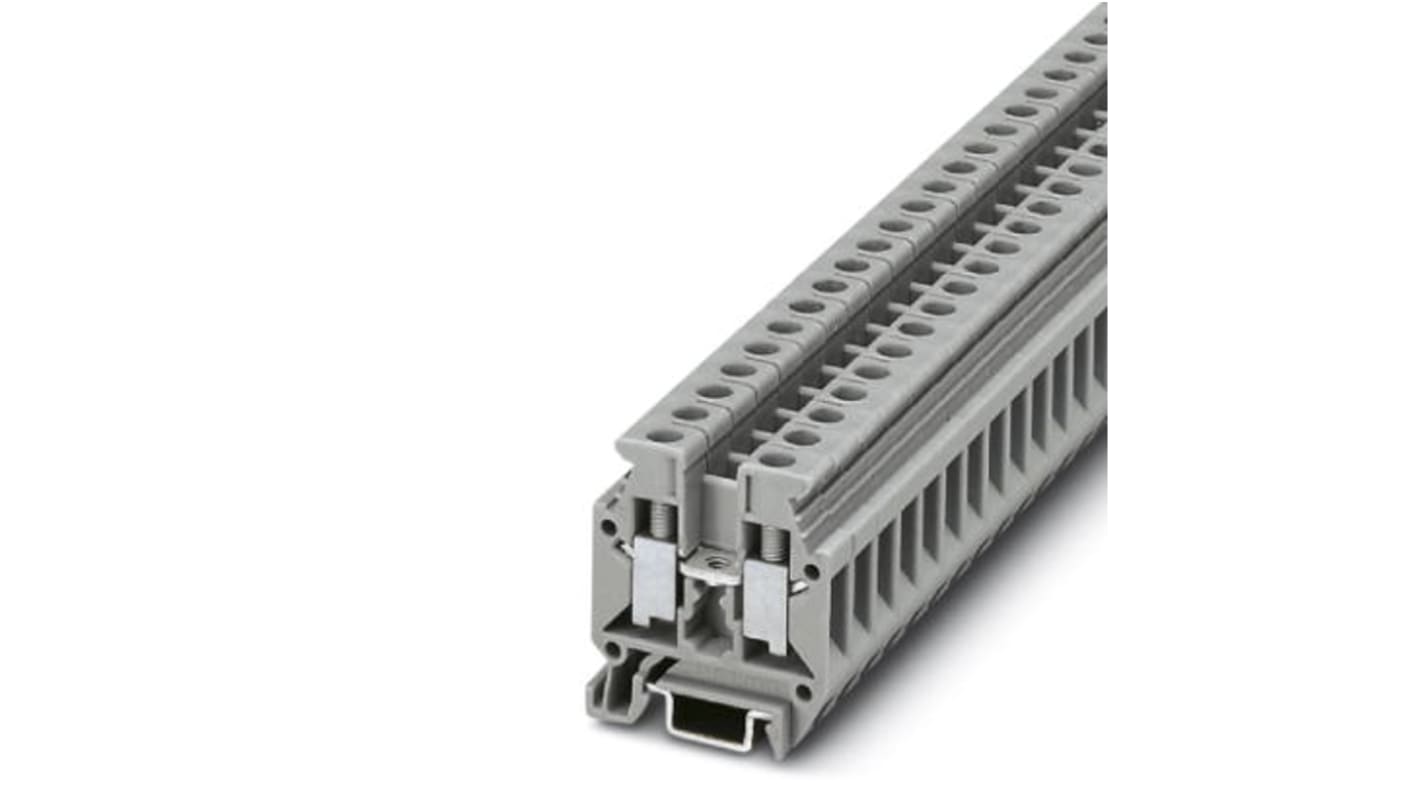

Phoenix Contact 1402940 MBK 5/E-Z Series Grey, 4mm², Single-Level, Screw Termination
- RS Stock No.:
- 804-0539
- Mfr. Part No.:
- 1402940
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£1.288
(exc. VAT)
£1.546
(inc. VAT)
- RS Stock No.:
- 804-0539
- Mfr. Part No.:
- 1402940
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Single | |
American Wire Gauge | 24 → 10AWG | |
Series | MBK 5/E-Z | |
Termination Method | Screw | |
Cable CSA | 4mm² | |
Current Rating | 32A | |
Voltage Rating | 500 V | |
Minimum Operating Temperature | -60°C | |
Maximum Operating Temperature | +85°C | |
Model Number | MBK 5/E-Z | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
American Wire Gauge 24 → 10AWG | ||
Series MBK 5/E-Z | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Current Rating 32A | ||
Voltage Rating 500 V | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +85°C | ||
Model Number MBK 5/E-Z | ||
Phoenix Contact MBK 5/E-Z Series Feed Through Terminal Block, 32A Current Rating, 500V Voltage Rating - 1402940
This feed through terminal block is designed for reliable electrical connections in various industrial applications. It features a compact grey design suitable for mounting on a 15mm DIN rail, accommodating conductor sizes from AWG 10 to 24. The terminal block operates within a wide temperature range from -60°C to 85°C, enhancing its versatility in diverse environments.
Features & Benefits
• Compact design optimises space on DIN rail installations
• Screw termination method ensures secure connections
• Rated for 32A current handling for robust performance
• Supports cable cross-sections up to 4mm² for flexible use
• Overvoltage category III meets high voltage requirements
• Clear terminal markings enhance user efficiency and safety
• Screw termination method ensures secure connections
• Rated for 32A current handling for robust performance
• Supports cable cross-sections up to 4mm² for flexible use
• Overvoltage category III meets high voltage requirements
• Clear terminal markings enhance user efficiency and safety
Applications
• Used for wiring in control panels and automation systems
• Employed in electrical connections in mechanical engineering
• Ideal for constructing reliable circuits in industrial setups
• Employed in electrical connections in mechanical engineering
• Ideal for constructing reliable circuits in industrial setups
What types of conductor cross-sections can be accommodated?
It accommodates rigid conductors from 0.2mm² to 6mm² and flexible conductors from 0.2mm² to 4mm², ensuring versatility for different wiring needs.
How does the terminal block perform under extreme temperatures?
This model is rated for operation between -60°C and 85°C, making it suitable for challenging environments while maintaining secure electrical connections.
What is the maximum voltage rating for this terminal block?
The terminal block is rated for a maximum voltage of 500V, suitable for high voltage applications within specified limits.
CLIPLINE COMBI terminal blocks
A highly flexible system of terminal blocks featuring a disconnectable plug-in zone and 4 connection methods: screw (UT), spring-cage (ST), push-in (DT) and self-stripping (QT). The entire range is standardised. These four connections methods can be freely combined to connect terminal blocks and pluggable connectors, whatever their connector type. Both the bases and connectors are protected from coming into contact with hands. Self-stripping connections (QT-COMBI): Wiring time is reduced by up to 60%, as cables need not be stripped.A screwdriver is used to lock the self-stripping mechanism. Spring terminals (ST - COMBI): The connection point is opened using a screwdriver to lever the spring. This technology provides constant contact force for vibration-proof use. Screw connection (UT - COMBI): Universal terminal enabling a multi-conductor connection.
