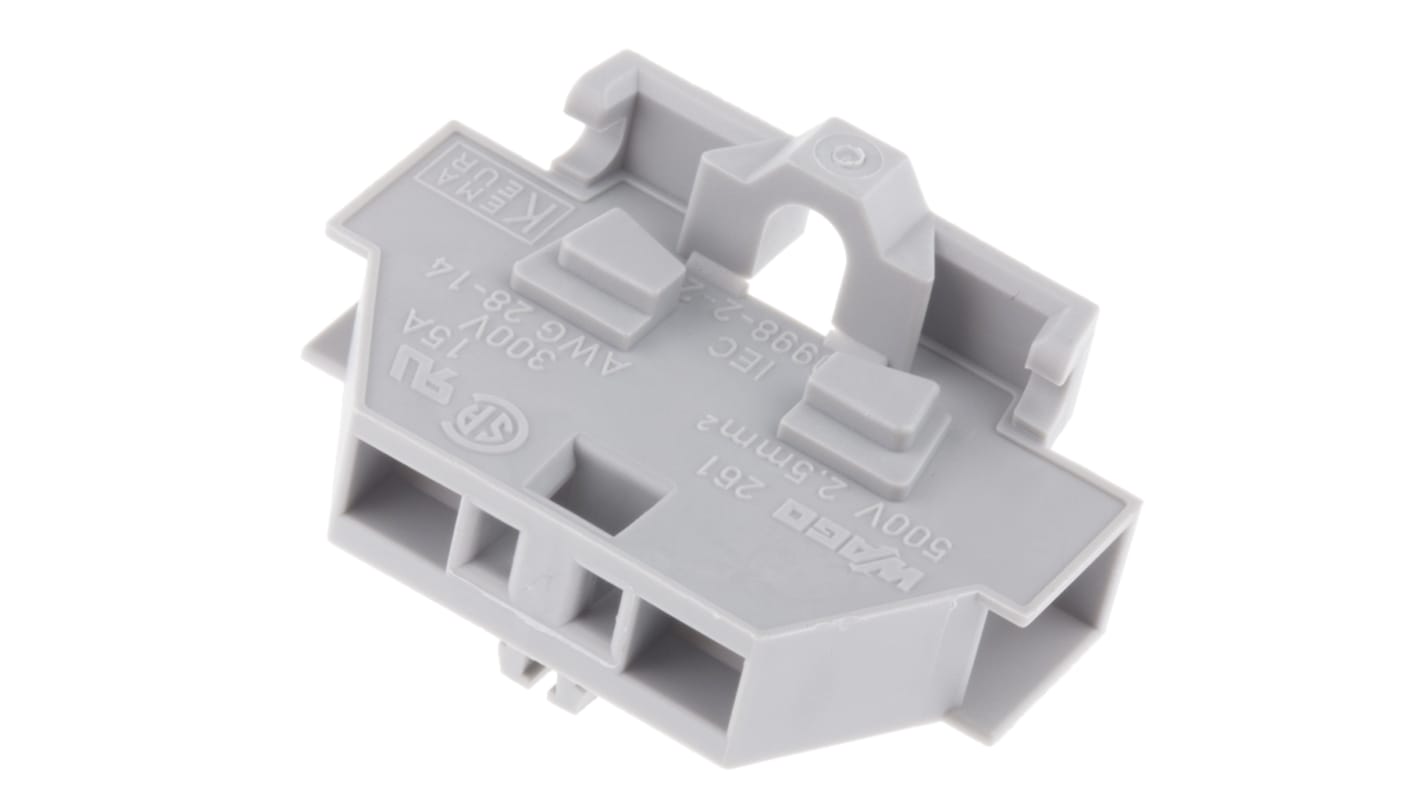

WAGO 261-301 261 Series Grey, 2.5mm², Single-Level, Cage Clamp Termination

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£4.75

(exc. VAT)

£5.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,570 unit(s) ready to ship
  • Plus 70 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.475£4.75

*price indicative

RS Stock No.:
803-6729
Mfr. Part No.:
261-301
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Grey

Number of Levels

Single

American Wire Gauge

28 → 14AWG

Series

261

Voltage Rating

500 V

Termination Method

Cage Clamp

Cable CSA

2.5mm²

Fused

No

Current Rating

24A

COO (Country of Origin):
CH

Cage Clamp - 261 Series


Cage clamp® connection terminal blocks with side entry are screwdriver actuated and include fixing flanges at either end of the terminal block. A DIN Rail mounting adapter is also available which screw mounts into the base of the terminal blocks. It is recommended that the maximum distance between adapters is 35-40 mm.

Features and Benefits


• 2 Conductor-through terminal block
• 6 kV surge voltage
• 101-3877 is a mounting foot with screw for DIN 35 rail


260 Series
