WAGO 280-901 280 Series Grey, 2.5mm², 1-Level, Cage Clamp Termination
- RS Stock No.:
- 796-0451
- Distrelec Article No.:
- 304-02-287
- Mfr. Part No.:
- 280-901
- Brand:
- WAGO
Subtotal (1 pack of 5 units)*
£5.05
(exc. VAT)
£6.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 88 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £5.05 | £1.01 |
*price indicative
- RS Stock No.:
- 796-0451
- Distrelec Article No.:
- 304-02-287
- Mfr. Part No.:
- 280-901
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Number of Levels | 1 | |
| Voltage Rating | 800 V | |
| American Wire Gauge | 28 → 12AWG | |
| Series | 280 | |
| Termination Method | Cage Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | No | |
| Current Rating | 24A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels 1 | ||
Voltage Rating 800 V | ||
American Wire Gauge 28 → 12AWG | ||
Series 280 | ||
Termination Method Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Current Rating 24A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- PL

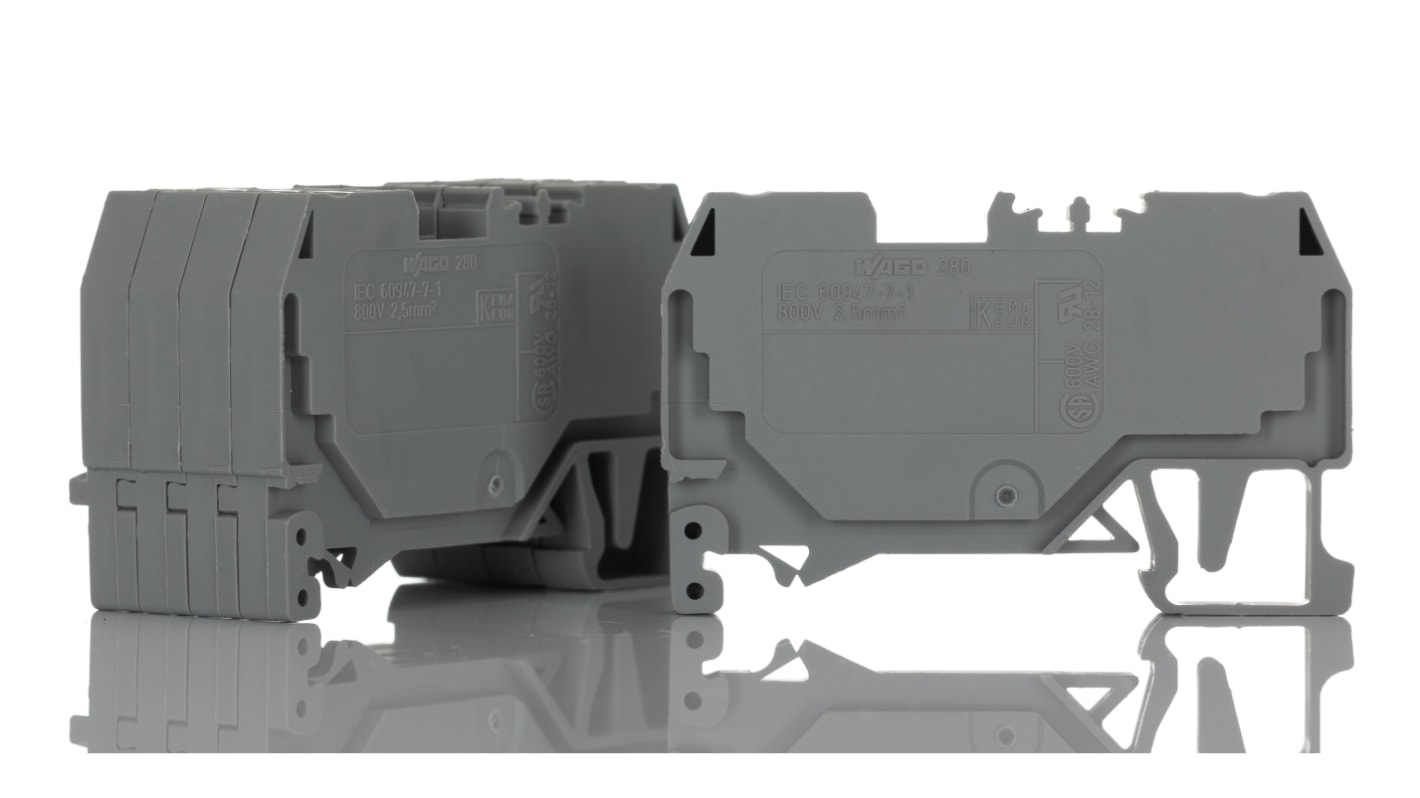

WAGO Feed-Through Terminal Block, 800V Voltage Rating,24A Current Rating - 280 Series - 280-901
When you need to manage the wiring in your high-voltage energy installations, reach for this feed-through terminal block from WAGO. It features protection against short circuits and overcurrent to safeguard personnel and equipment against hazards. Thanks to its current rating of 24A and its voltage rating of 800V, it stands up to use in heavy-duty electrical systems. The unit's measured shock voltage of 8kV also makes it a good choice for industrial settings. For mounting in a snap, clip this unit onto your DIN rail.
Features & Benefits
• Accepts a wire size range from 28 to 12AWG to suit many connections
• Front-entry wiring allows for easy installation in areas where space is limited
• Cage clamp technology cuts down on wiring time
• Compact dimensions of 53 (L) x 5 (W) x 28mm (H) mean it's a sure fit for crowded setups
• Light weight of 5.59g to place minimal strain on your equipment
• Front-entry wiring allows for easy installation in areas where space is limited
• Cage clamp technology cuts down on wiring time
• Compact dimensions of 53 (L) x 5 (W) x 28mm (H) mean it's a sure fit for crowded setups
• Light weight of 5.59g to place minimal strain on your equipment
Applications
• HVAC system controls
• Power supplies
• Energy management
• Power supplies
• Energy management
How many connection points does this terminal block have?
There are two connection points, so you can hook it up to more than one device.
280 Series
