Phoenix Contact 3004032 UK 5-MTK-P/P Series Grey, Single-Level, Screw Termination
- RS Stock No.:
- 776-7832
- Mfr. Part No.:
- 3004032
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£19.24
(exc. VAT)
£23.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 365 unit(s) ready to ship
- Plus 60 unit(s) ready to ship from another location
- Plus 350 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.848 | £19.24 |
*price indicative
- RS Stock No.:
- 776-7832
- Mfr. Part No.:
- 3004032
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Voltage Rating | 500 V | |
| American Wire Gauge | 24 → 10AWG | |
| Series | UK 5-MTK-P/P | |
| Termination Method | Screw | |
| Current Rating | 16A | |
| Model Number | UK 5-MTK-P/P | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Voltage Rating 500 V | ||
American Wire Gauge 24 → 10AWG | ||
Series UK 5-MTK-P/P | ||
Termination Method Screw | ||
Current Rating 16A | ||
Model Number UK 5-MTK-P/P | ||
- COO (Country of Origin):
- CN
TB Series

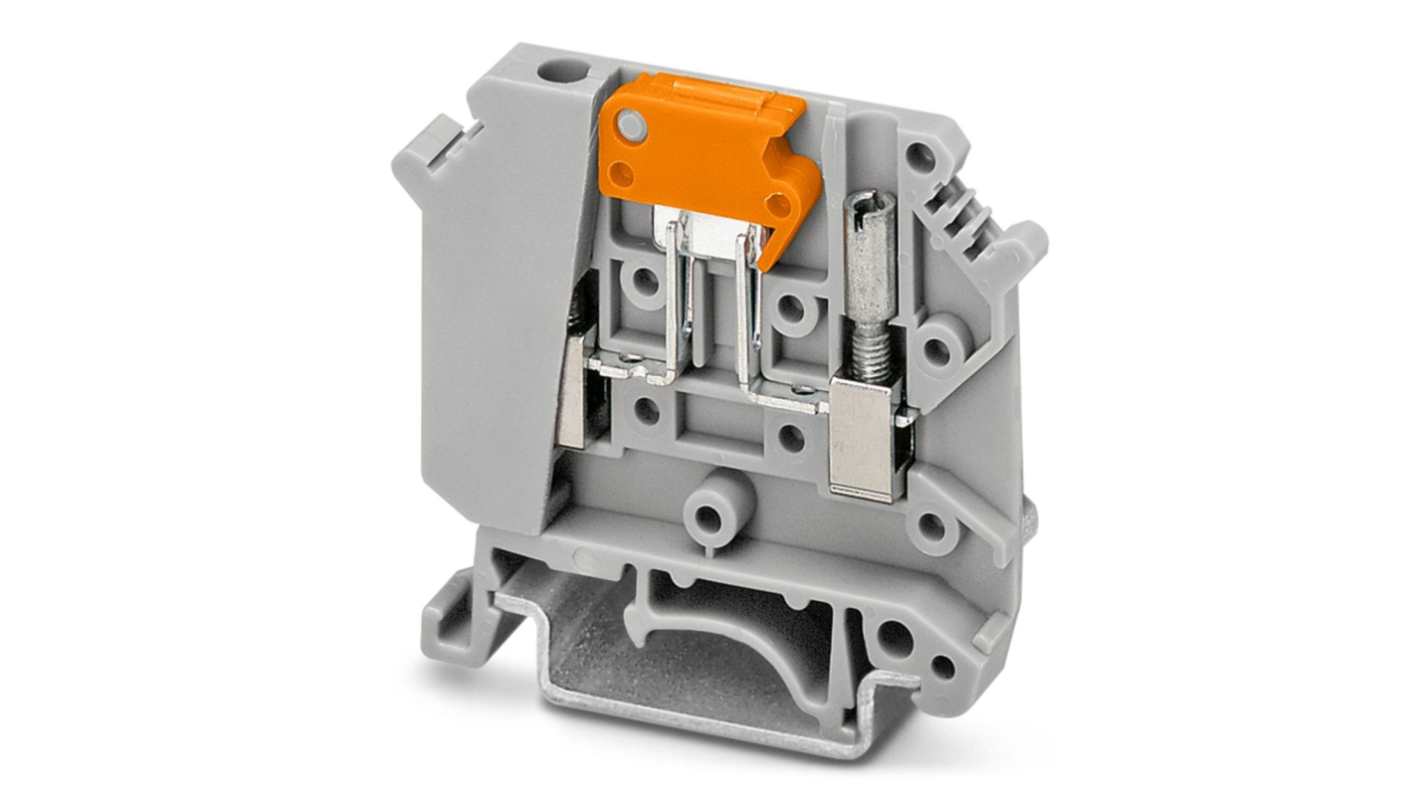

Phoenix Contact Knife Disconnect Terminal Block, 24 to 10 AWG - UK 5-MTK-P/P - 3004032
To break a circuit in your electrical circuit without disturbing the wiring, use this knife disconnect terminal block from Phoenix Contact. It has a colour-coded knife lever that you can operate with a screwdriver to separate your circuits quickly and efficiently.
The terminal block's housing is made from a PA (polyamide) material, which is highly durable thanks to its good electrical and chemical resistance. As it's also highly insulating, it protects you and your equipment against electrical damage. Its high temperature resistance and low flammability mean your workspace will be safe in the event of a fire.
This product has a high surge voltage of 6 kV, making it suitable for the most demanding electrical applications. You'll commonly find it used in control loops in processing plants, as well as in computer systems and power grids.
The terminal block's housing is made from a PA (polyamide) material, which is highly durable thanks to its good electrical and chemical resistance. As it's also highly insulating, it protects you and your equipment against electrical damage. Its high temperature resistance and low flammability mean your workspace will be safe in the event of a fire.
This product has a high surge voltage of 6 kV, making it suitable for the most demanding electrical applications. You'll commonly find it used in control loops in processing plants, as well as in computer systems and power grids.
• Grey housing colour
• One level
• Two connections
• Screw termination method
• Voltage rating of 500 V
• Current rating of 16 A
• Wire size of 24 to 10 American Wire Gauge (AWG)
• Length of 51 mm
• Width of 6.2 mm
• Weight of 12.45 g
• One level
• Two connections
• Screw termination method
• Voltage rating of 500 V
• Current rating of 16 A
• Wire size of 24 to 10 American Wire Gauge (AWG)
• Length of 51 mm
• Width of 6.2 mm
• Weight of 12.45 g
TB Series
