Select all	Attribute	Value
	Brand	Weidmüller
	Colour	Black
	Number of Levels	Octuple
	American Wire Gauge	24 → 16AWG
	Series	P
	Termination Method	Push In
	Current Rating	5A
	Voltage Rating	250 V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C

	Select all
	Brand Weidmüller
	Colour Black
	Number of Levels Octuple
	American Wire Gauge 24 → 16AWG
	Series P
	Termination Method Push In
	Current Rating 5A
	Voltage Rating 250 V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C

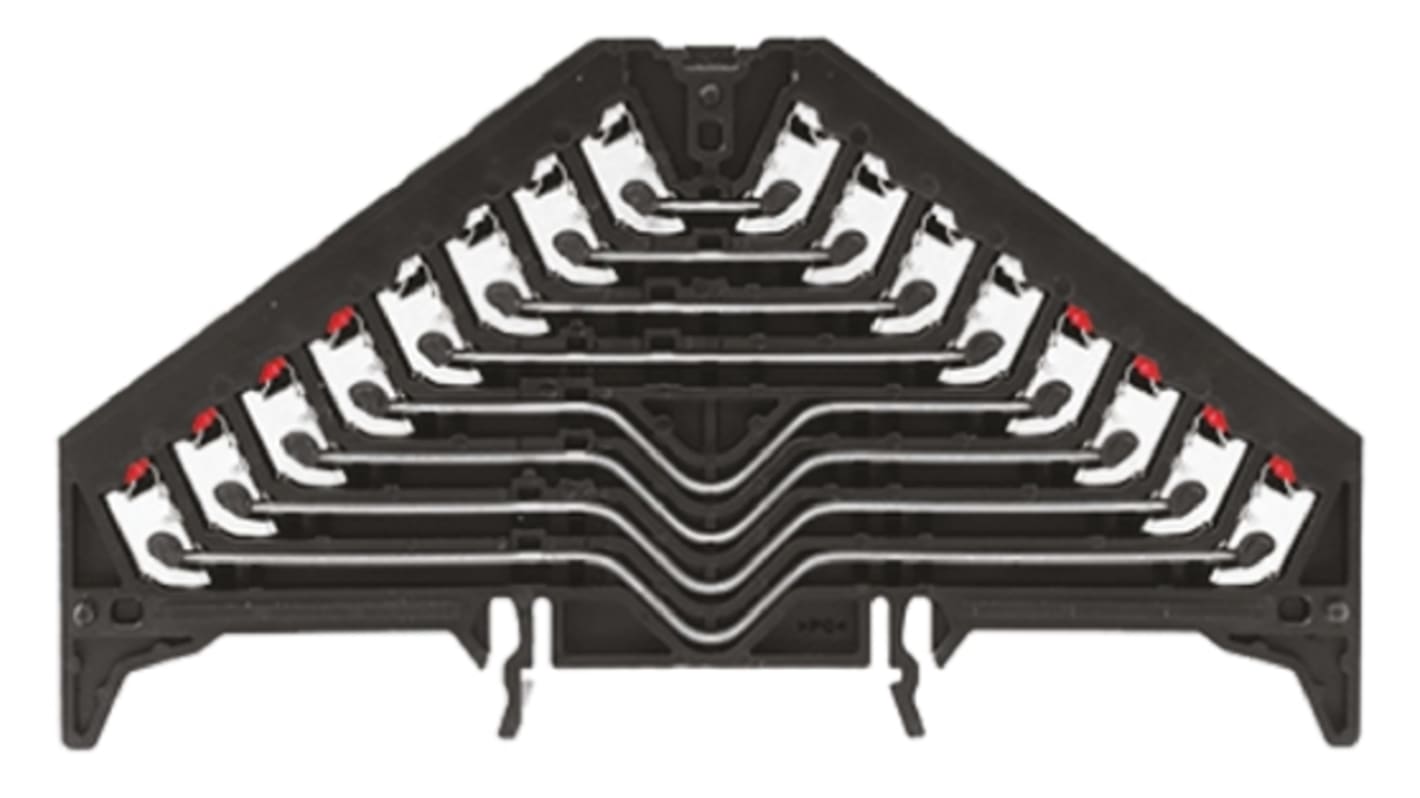

P-series Terminal PRV 8 SW 35X7.5 WS/RT

COO (Country of Origin):: RO

Marshalling terminal block

These marshalling terminal blocks from Weidmuller are ideal for space saving with their multi-tier terminals and push in connection technology. Several product lines are available including four, eight and sixteen channels. The four and eight channel terminal blocks are also available as potential distribution terminals.

Features and Benefits

• More than 1700 signals per metre can be distributed with the 16 channel terminal block

• Easy to assign wires to their terminal points

• The push in connections make wiring quick and easy

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Weidmuller 1173800000 P Series Black, Octuple-Level, Push In Termination
