RS PRO Green/Yellow, 10mm², Single-Level, Screw Termination
- RS Stock No.:
- 762-2540
- Distrelec Article No.:
- 304-25-874
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£27.69
(exc. VAT)
£33.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £27.69 | £2.769 |
*price indicative
- RS Stock No.:
- 762-2540
- Distrelec Article No.:
- 304-25-874
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Colour | Green/Yellow | |
Number of Levels | Single | |
American Wire Gauge | 10 → 6AWG | |
Series | SSL | |
Termination Method | Screw | |
Cable CSA | 10mm² | |
Pitch | 10.1mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +120°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Colour Green/Yellow | ||
Number of Levels Single | ||
American Wire Gauge 10 → 6AWG | ||
Series SSL | ||
Termination Method Screw | ||
Cable CSA 10mm² | ||
Pitch 10.1mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +120°C | ||
- COO (Country of Origin):
- DE

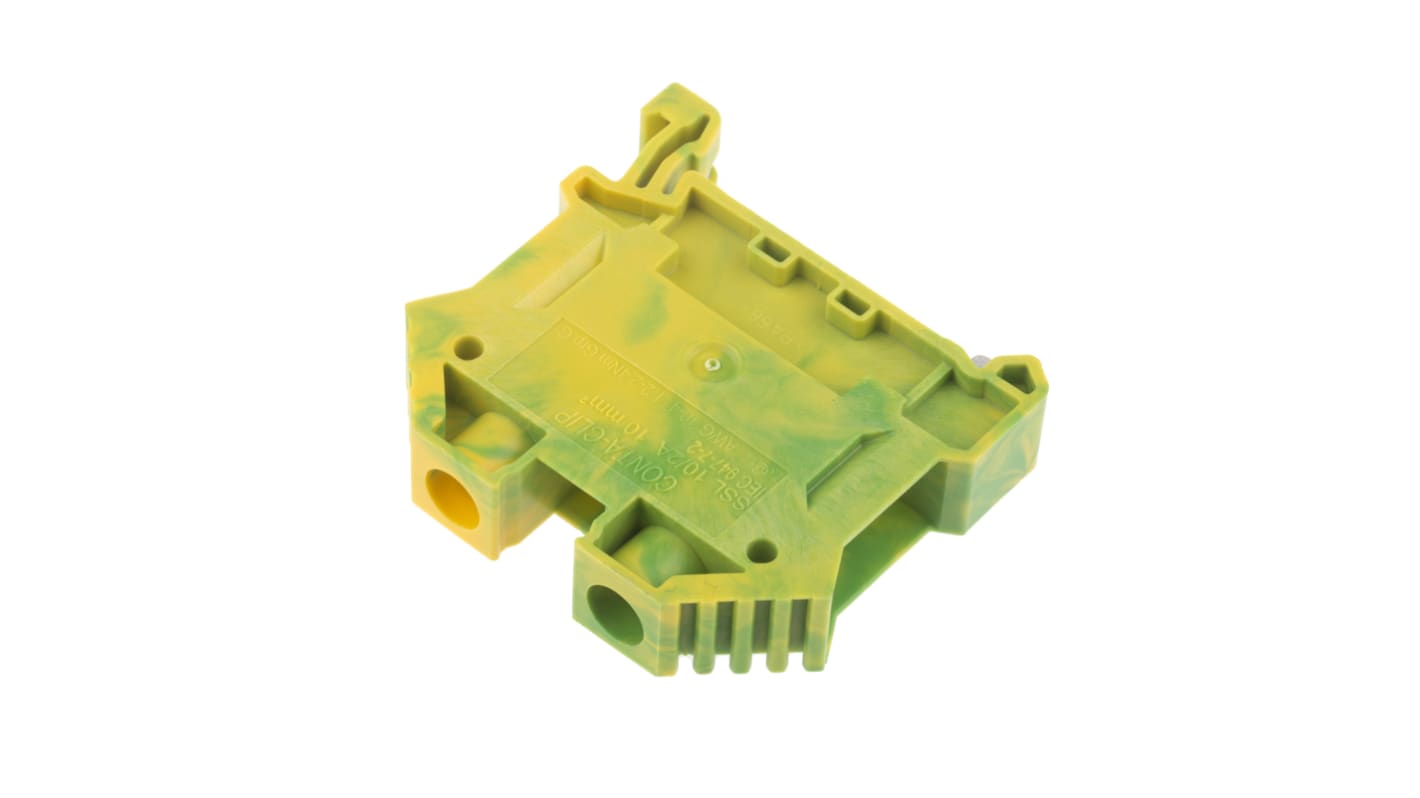

RS PRO Green/Yellow Earth Terminal Block, 10 → 6 AWG, 10 mm²
This earth terminal block from RS PRO is a feed-through DIN rail terminal. Use it with simple screw connectors to connect solid or flexible wires, with or without wire-end ferrules. It uses a pluggable insulated cross-connection system, meaning you can connect it to two adjacent terminals of different sizes or daisy-chain any number of terminals.
The terminal block clips easily onto a DIN rail without the need for additional fixings. The terminal's screw heads are mounted into the body, so the terminal's metal parts won't slip out when the terminal screw is tightened. It's suitable for a wide range of industrial settings, as it's operational at temperatures from -40°C to +120°C.
The housing is made from durable polyamide (PA) and is coloured green and yellow, for easy identification as an earth terminal. This kind of terminal is used to protect electrical units or people from magnetic and electrical fields.
The terminal block clips easily onto a DIN rail without the need for additional fixings. The terminal's screw heads are mounted into the body, so the terminal's metal parts won't slip out when the terminal screw is tightened. It's suitable for a wide range of industrial settings, as it's operational at temperatures from -40°C to +120°C.
The housing is made from durable polyamide (PA) and is coloured green and yellow, for easy identification as an earth terminal. This kind of terminal is used to protect electrical units or people from magnetic and electrical fields.
Features and Benefits
• Cross-sectional area (CSA) of 10 mm²
• Green/yellow colour
• Maximum operating temperature of +120°C
• Minimum operating temperature of -40°C
• Single level
• Pitch of 10.1 mm
• Screw termination method
• Wire size of 10 to 6 American Wire Gauge (AWG)
• Green/yellow colour
• Maximum operating temperature of +120°C
• Minimum operating temperature of -40°C
• Single level
• Pitch of 10.1 mm
• Screw termination method
• Wire size of 10 to 6 American Wire Gauge (AWG)
