WAGO 2002-1611 2002 Series Grey, 2.5mm², 1-Level, Push-In Cage Clamp Termination, Fused, ATEX
- RS Stock No.:
- 758-1705
- Mfr. Part No.:
- 2002-1611
- Brand:
- WAGO
Subtotal (1 pack of 10 units)*
£47.37
(exc. VAT)
£56.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 140 unit(s) shipping from 27 October 2025
- Plus 1,000 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £4.737 | £47.37 |
*price indicative
- RS Stock No.:
- 758-1705
- Mfr. Part No.:
- 2002-1611
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Number of Levels | 1 | |
| American Wire Gauge | 22 → 12AWG | |
| Voltage Rating | 250 V | |
| Series | 2002 | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | Yes | |
| Current Rating | 6.3A | |
| Pitch | 6.2mm | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | +105°C | |
| Hazardous Area Certification | ATEX | |
| Standards Met | UL | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels 1 | ||
American Wire Gauge 22 → 12AWG | ||
Voltage Rating 250 V | ||
Series 2002 | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused Yes | ||
Current Rating 6.3A | ||
Pitch 6.2mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +105°C | ||
Hazardous Area Certification ATEX | ||
Standards Met UL | ||
- COO (Country of Origin):
- CN

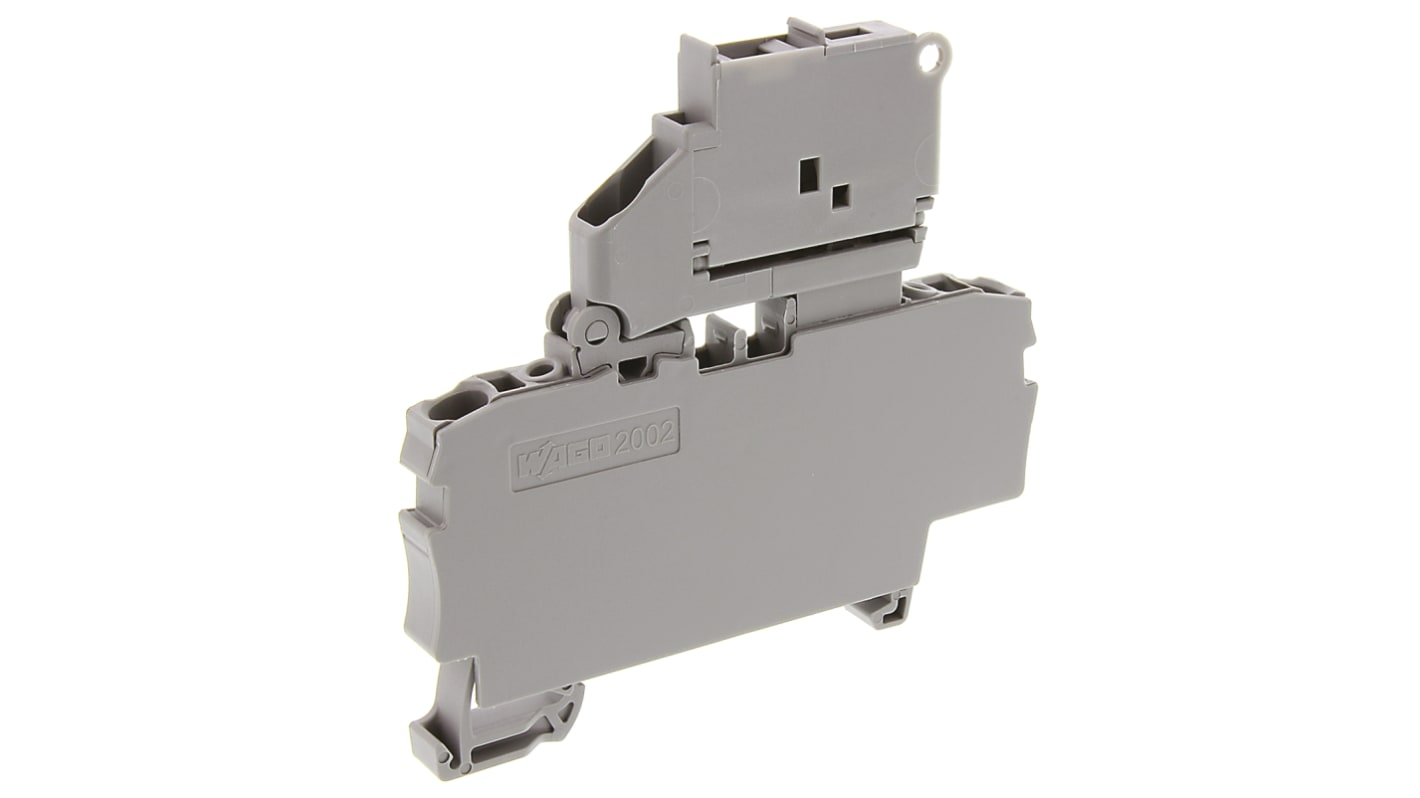

WAGO Fused DIN Rail Terminal, 6.3A Current Rating,250V Voltage Rating - 2002 Series - 2002-1611
Power up and protect your electrical systems with this fused DIN rail terminal from WAGO. It's made from sturdy PA that provides effective insulation to minimise the risk of shock and electrical damage. The two-conductor design includes a pivoting fuse holder to carry miniature 5 x 20mm fuses. Thanks to a voltage rating of 250V, you can rest assured the unit is up to the challenge of heavy-duty applications. Getting set up is easy as can be, as you can simply clip this unit directly onto your DIN rail.
Features & Benefits
• Cage clamp technology reduces wiring time, as there's no need for crimping
• Accepts wire sizes ranging from 22 to 12AWG for versatility
• Withstands a measured shock voltage of up to 6kV for improved electrical safety
• Light weight of 13.5g minimises strain on your equipment
• Accepts wire sizes ranging from 22 to 12AWG for versatility
• Withstands a measured shock voltage of up to 6kV for improved electrical safety
• Light weight of 13.5g minimises strain on your equipment
Applications
• Lighting controllers
• Telecommunications
• Civil electrical installations
• Telecommunications
• Civil electrical installations
What size is this DIN rail terminal block?
It has compact dimensions of 57.6 (H) x 6.2 (W) x 66.5mm (D), so it helps to maximise space on a crowded DIN rail.
