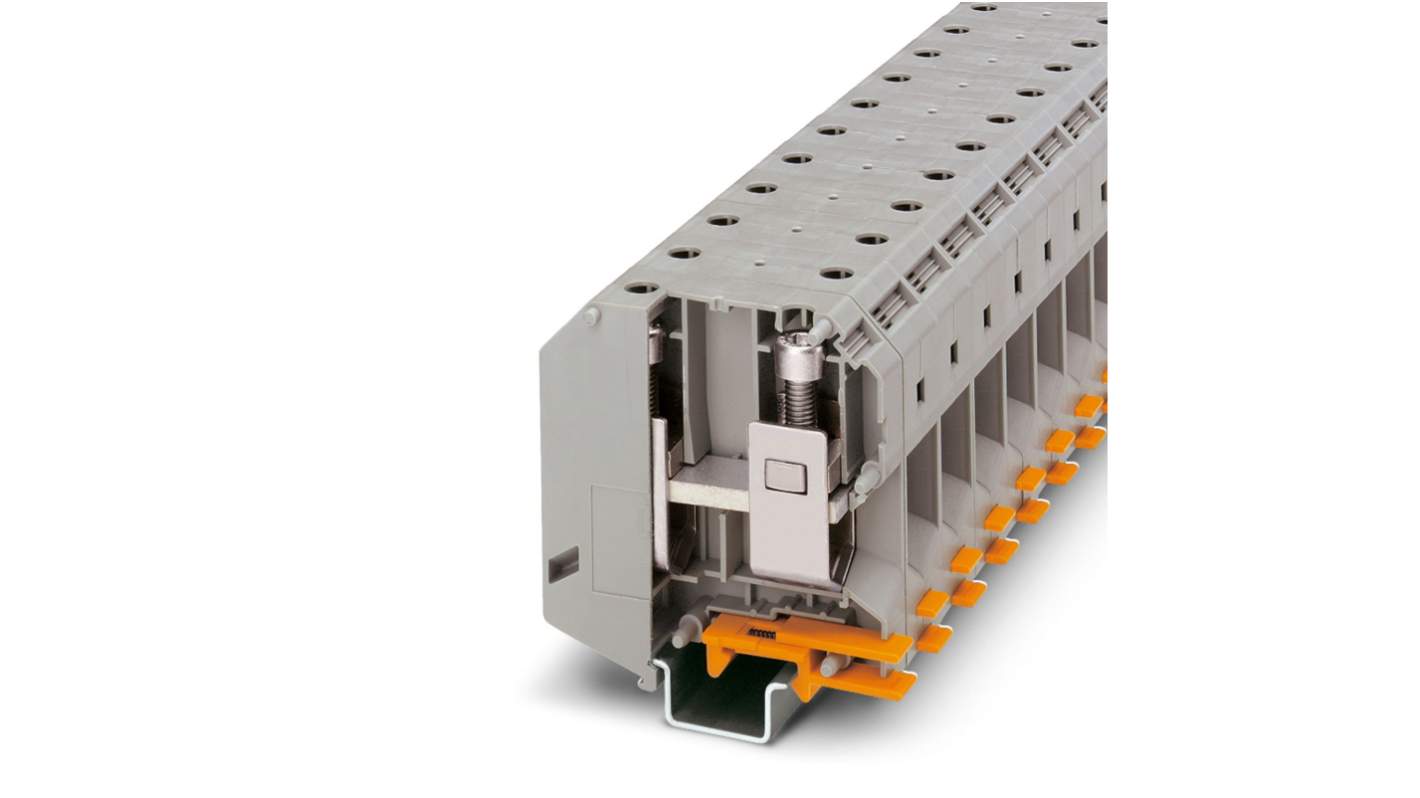

Phoenix Contact UKH 95 Series Grey Feed Through Terminal Block, 25 → 95mm², Single-Level, Screw Termination
- RS Stock No.:
- 742-7430
- Mfr. Part No.:
- 3010013
- Brand:
- Phoenix Contact
29 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Price Each
£19.67
(exc. VAT)
£23.60
(inc. VAT)
Units | Per unit |
---|---|
1 - 5 | £19.67 |
6 - 11 | £18.84 |
12 + | £18.33 |
- RS Stock No.:
- 742-7430
- Mfr. Part No.:
- 3010013
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
Phoenix Contact Feed-Through Terminal Block, Screw Connections, 1kV Voltage Rating - UKH 95 - 3010013
Reach for this feed-through terminal block from Phoenix Contact when you need to connect wires from multiple circuits. It has two terminals with pointed sleeves that centre your conductors, while spring-loaded clamps and screws are on hand to secure them. With a voltage rating of 1kV, this is a good choice for heavy-duty applications. Ribbing on the contact surface keeps resistance low at just 0.06mΩ, reducing the risk of the block overheating.
Robust PA housing insulates live parts, keeping you safe from accidental contact. For added electrical safety, this product has a high surge voltage rating of 8kV. An overvoltage category of III and a current rating of 232A mean its suitable for use in renewable energy, plant and manufacturing installations.
Robust PA housing insulates live parts, keeping you safe from accidental contact. For added electrical safety, this product has a high surge voltage rating of 8kV. An overvoltage category of III and a current rating of 232A mean its suitable for use in renewable energy, plant and manufacturing installations.
Features & Benefits
• Compatible with pick-off terminals (240-7309) and bridges (270-0077) for straightforward power feeding and distribution
• ATEX II 2 GD classification makes it suitable for use where explosive gas and dust are occasionally present in the atmosphere
• Performs reliably in an operating temperature range between -60°C and +110°C
• UL 94-V0 flammability rating means vertical burning stops quickly to prevent the spread of flames
• ATEX II 2 GD classification makes it suitable for use where explosive gas and dust are occasionally present in the atmosphere
• Performs reliably in an operating temperature range between -60°C and +110°C
• UL 94-V0 flammability rating means vertical burning stops quickly to prevent the spread of flames
Phoenix Contact CLIPLINE UT Range
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Single |
American Wire Gauge | 4 → 000AWG |
Series | UKH 95 |
Termination Method | Screw |
Cable CSA | 25 → 95mm² |
Current Rating | 232A |
Voltage Rating | 1 kV |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +110°C |
Standards Met | EAC |
Model Number | UKH 95 |
