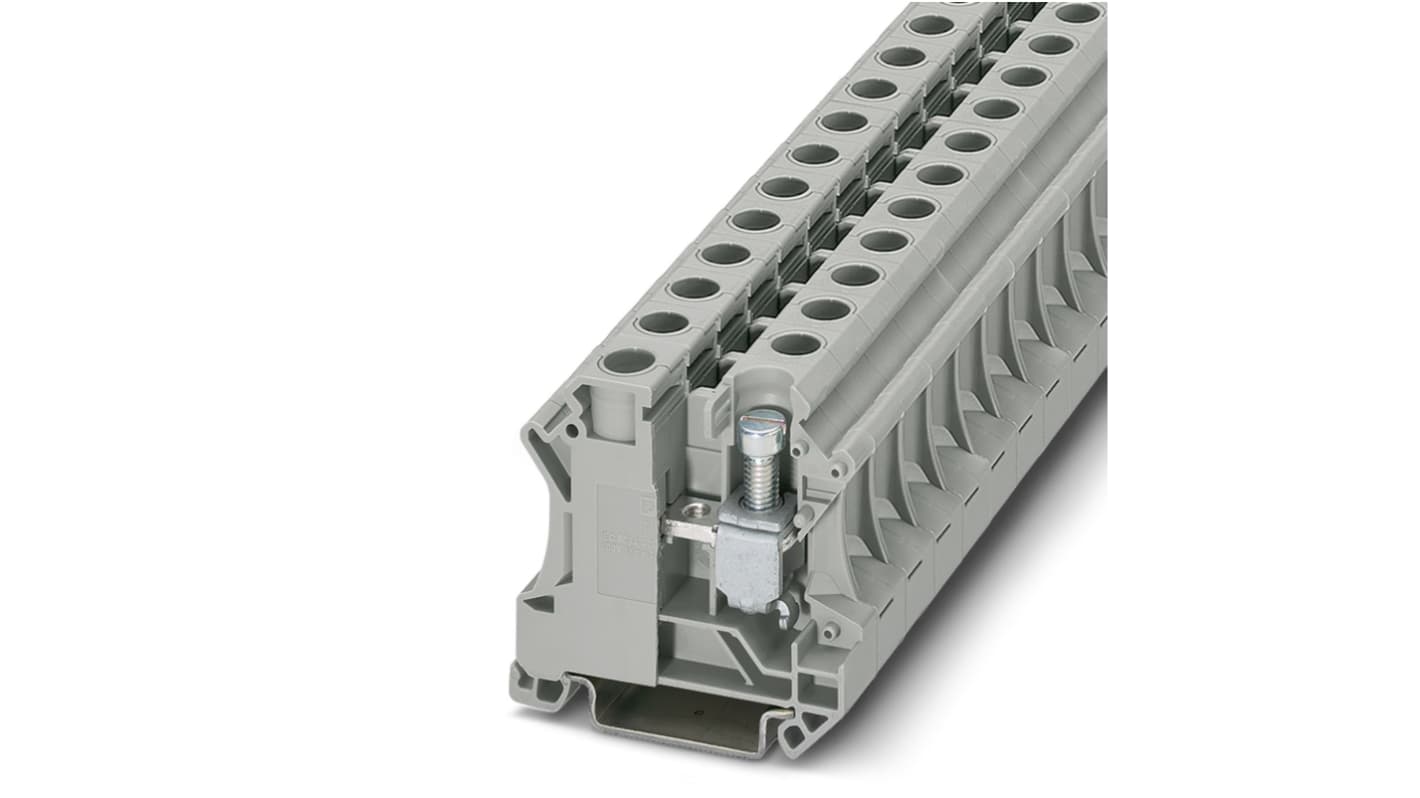

Phoenix Contact 3073827 UTI 16 Series Grey, 6 → 25mm², Single-Level, Screw Termination
- RS Stock No.:
- 684-3061
- Mfr. Part No.:
- 3073827
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£11.16
(exc. VAT)
£13.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 210 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.232 | £11.16 |
*price indicative
- RS Stock No.:
- 684-3061
- Mfr. Part No.:
- 3073827
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Number of Levels | Single | |
| Voltage Rating | 400 V | |
| Series | UTI 16 | |
| American Wire Gauge | 10 → 4AWG | |
| Termination Method | Screw | |
| Cable CSA | 6 → 25mm² | |
| Current Rating | 76A | |
| Pitch | 12.2mm | |
| Model Number | UTI 16 | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Single | ||
Voltage Rating 400 V | ||
Series UTI 16 | ||
American Wire Gauge 10 → 4AWG | ||
Termination Method Screw | ||
Cable CSA 6 → 25mm² | ||
Current Rating 76A | ||
Pitch 12.2mm | ||
Model Number UTI 16 | ||
UTI Low Profile Terminal Blocks
UTI series terminal blocks have a low vertical height profile making them ideal for space restricted applications. They also feature a quick install bus bar option that reduces installation time.
Low profile, only 58mm high on standard TS35 DIN rail
Supports conductor cross sections of up to 35 mm² (110A)
Standard phase wiring colours
Made of durable UL94-V2 rated polyamide
Supports conductor cross sections of up to 35 mm² (110A)
Standard phase wiring colours
Made of durable UL94-V2 rated polyamide
Phoenix Contact CLIPLINE UT Range
