Entrelec 1SNK506314R0000 SNK Series Grey, 4mm², Single-Level, Screw Termination
- RS Stock No.:
- 666-3206
- Mfr. Part No.:
- 1SNK506314R0000
- Brand:
- Entrelec

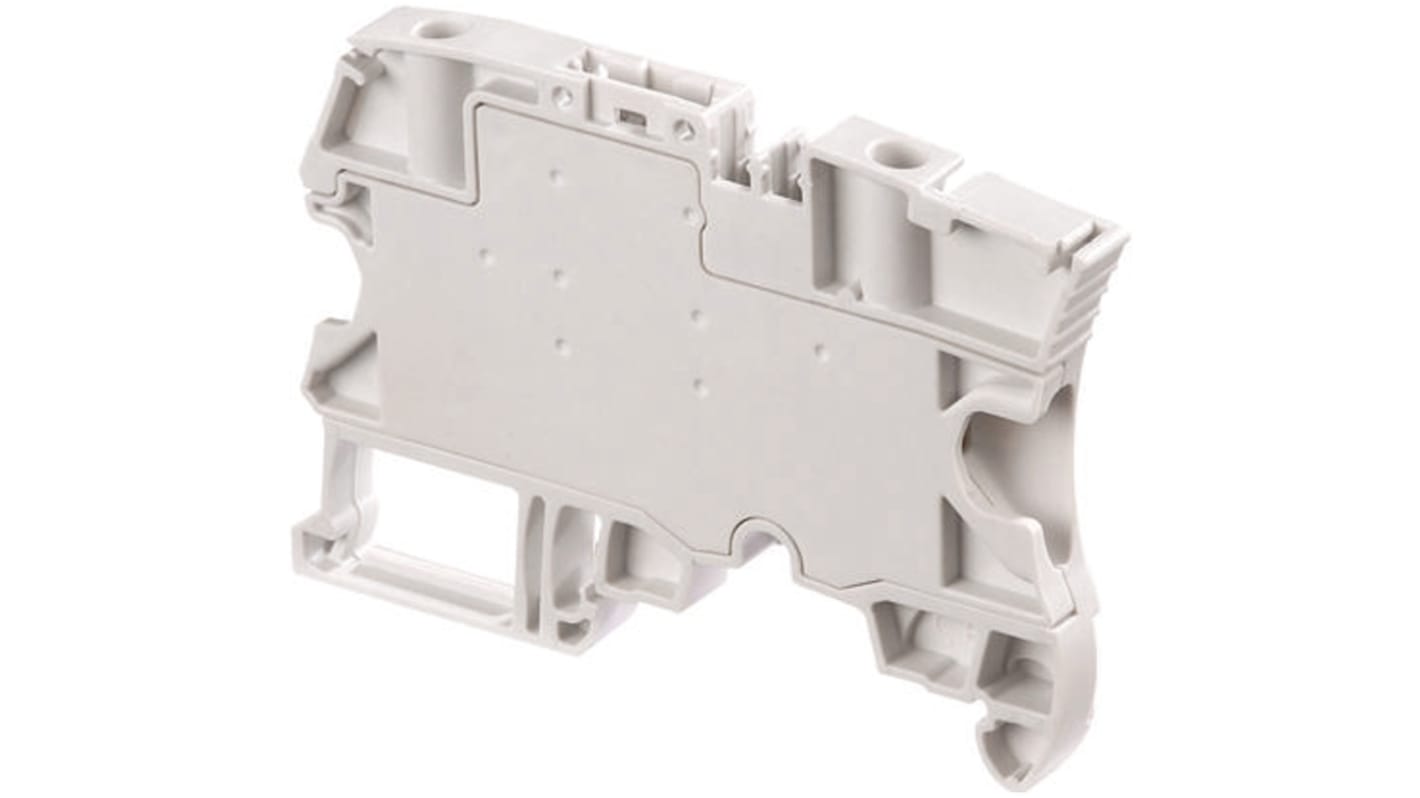

Image representative of range
Subtotal (1 pack of 5 units)*
£26.04
(exc. VAT)
£31.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £5.208 | £26.04 |
*price indicative
- RS Stock No.:
- 666-3206
- Mfr. Part No.:
- 1SNK506314R0000
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Colour | Grey | |
| Number of Levels | Single | |
| Voltage Rating | 400 V ac | |
| Series | SNK | |
| Termination Method | Screw | |
| Cable CSA | 4mm² | |
| Current Rating | 18A | |
| Pitch | 6mm | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Entrelec | ||
Colour Grey | ||
Number of Levels Single | ||
Voltage Rating 400 V ac | ||
Series SNK | ||
Termination Method Screw | ||
Cable CSA 4mm² | ||
Current Rating 18A | ||
Pitch 6mm | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +40°C | ||
- COO (Country of Origin):
- FR
Disconnect with Plug
Available in 5.2 or 6mm terminal pitch
6mm versions have dual jumper channels
Sold in packs of 5
6mm versions have dual jumper channels
Sold in packs of 5
SNK Series Screw Clamp Din Rail Terminal Blocks
A range of screw clamp terminal blocks and accessories offering a 20% width reduction compared with the Entrelec 5000 series. Designed to mount on ’top hat’ format DIN rails using a unique asymmetrical profile which aids visibility from any direction and prevents reverse mounting errors. Easy to fit with positive snap action and constructed from ridged flame retardant material. A comprehensive list of international approvals including, UL, CSA, CE, ATEX and IECex, support worldwide use.
