Phoenix Contact 3118203 UK 6-FSI/C Series Black, Single-Level, Screw Termination, Fused

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 5 units)*

£42.22

(exc. VAT)

£50.665

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 200 unit(s) ready to ship
  • Plus 610 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£8.444£42.22

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
652-3335
Mfr. Part No.:
3118203
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Black

Number of Levels

Single

American Wire Gauge

26 → 8AWG

Series

UK 6-FSI/C

Voltage Rating

250 V

Termination Method

Screw

Fused

Yes

Current Rating

30A

Pitch

8.2mm

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+105°C

Standards Met

CSA Certified

Model Number

UK 6-FSI/C

COO (Country of Origin):
TR

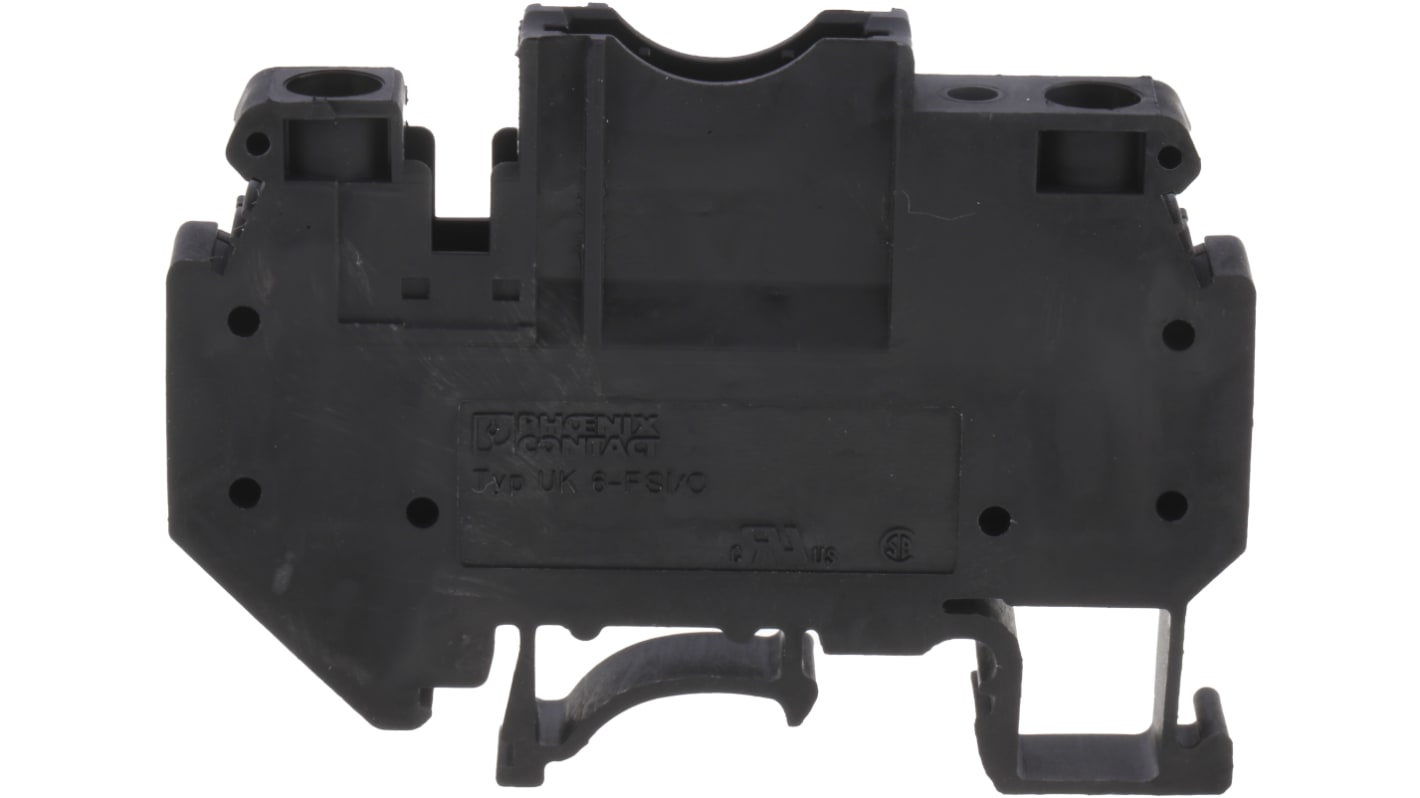

Phoenix Contact Flat-Type Fuse Terminal Block


UK 6-FSI/C is a single tier terminal block equipped with a location for flat-type fuses. The black polyamide (PA) terminal block has 2 connections and a maximum load current of 30A.

Note

Nominal voltage and current:
- In accordance with CSA: 30 A @ 32 V
- In accordance with UL: 30 A @ 300 V

Phoenix Contact Flat-Type Fuse Terminal Block, 250V, 30A - UK 6-FSI/C - 3118203


Use this modular terminal block from Phoenix Contact contact to efficiently and safely connect your wiring. The component has a flat fuse that protects against electrical overload, providing optimum protection. It's insulated with polyamide (PA) material that provides optimal electrical resistance and reliable protection. Thanks to a voltage rating of 250V, it's an ideal choice for use with a wide range of medium-power applications.
This component has an Underwriters' Laboratory (UL) fire safety rating of UL94V-0 to indicate that in the event of a fire, burning will stop within 10 seconds. It has a surge voltage rating of 4kV and offers the ability to withstand voltage spikes and surges for additional electrical protection. This block has a small to medium American wire gauge (AWG) wire size of 26 to 8, making it space-efficient and suitable for carrying high electrical power.

• Light weight of 19.5 g for easy handling and minimal system strain
• Screw termination method for quick and easy installation
• Long-term environmental use safety period of 50 years
• Wide temperature range of -60°C to +130°C for use in demanding environments
