Phoenix Contact 1788198 COMBICON UMSTBVK Series Green, Screw Termination
- RS Stock No.:
- 648-4173
- Mfr. Part No.:
- 1788198
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£8.63
(exc. VAT)
£10.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 103 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.63 |
*price indicative
- RS Stock No.:
- 648-4173
- Mfr. Part No.:
- 1788198
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Green | |
Series | COMBICON UMSTBVK | |
American Wire Gauge | 24 → 12AWG | |
Voltage Rating | 320 V | |
Termination Method | Screw | |
Fused | No | |
Current Rating | 12A | |
Pitch | 5.08mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +100°C | |
Standards Met | CSA | |
Model Number | UMSTBVK 2,5/10-G-5,08 | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Green | ||
Series COMBICON UMSTBVK | ||
American Wire Gauge 24 → 12AWG | ||
Voltage Rating 320 V | ||
Termination Method Screw | ||
Fused No | ||
Current Rating 12A | ||
Pitch 5.08mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met CSA | ||
Model Number UMSTBVK 2,5/10-G-5,08 | ||
- COO (Country of Origin):
- PL

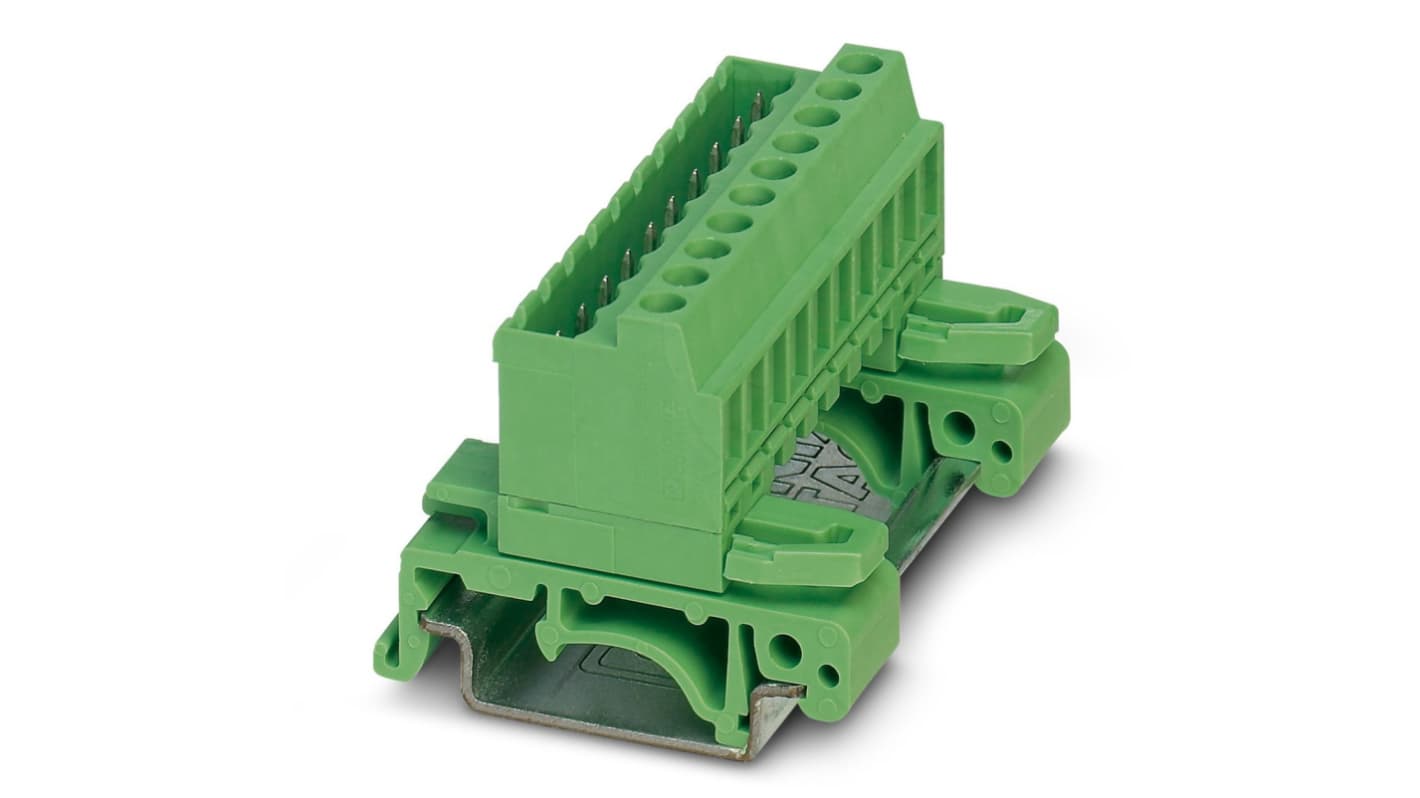

Phoenix Contact COMBICON UMSTBVK Series DIN Rail Terminal Block, Nylon, Top Hat - 1788198
This Phoenix Contact DIN rail terminal block is a versatile solution for various industries such as automation, electronics, electrical, and mechanical. With a 10 way configuration and a current rating of 12A, this terminal block offers reliable connectivity with a screw connection and a pitch of 5.08mm. The terminal block is designed to withstand voltages up to 320V, making it suitable for a wide range of applications.
Features & Benefits
• Versatile 10 way terminal block for easy cable management
• 12A current rating ensures efficient power distribution
• Screw connection with tension sleeve for secure connections
• 5.08mm pitch allows for precise wiring arrangements
• Voltage rating of 320V for safe operation in various environments
• 12A current rating ensures efficient power distribution
• Screw connection with tension sleeve for secure connections
• 5.08mm pitch allows for precise wiring arrangements
• Voltage rating of 320V for safe operation in various environments
Applications
• Ideal for use in control panels for automation systems
• Suitable for electrical wiring in industrial machinery
• Perfect for connecting sensors and actuators in electronic circuits
• Used for power distribution in electrical cabinets
• Suitable for electrical wiring in industrial machinery
• Perfect for connecting sensors and actuators in electronic circuits
• Used for power distribution in electrical cabinets
Can it handle high currents?
The DIN rail terminal block is rated for 12A, making it suitable for a wide range of applications requiring higher current loads.
Is it easy to install?
With a screw connection and a cable mount design, the terminal block is easy to install and provides a secure connection for your wiring needs.
Will it fit standard DIN rails?
Yes, the terminal block is designed to be mounted on both NS 32 or NS 35 DIN rails, ensuring compatibility with standard setups.
Approvals
UL, CUL, CSA
