RS Stock No.:
648-4167
Mfr. Part No.:
1788172
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

American Wire Gauge

24 → 12AWG

Voltage Rating

320 V

Series

UMSTBVK 2.5/ 8-G-5.08

Termination Method

Screw

Fused

No

Current Rating

12A

Pitch

5.08mm

Model Number

UMSTBVK 2,5/ 8-G-5,08

COO (Country of Origin):
PL

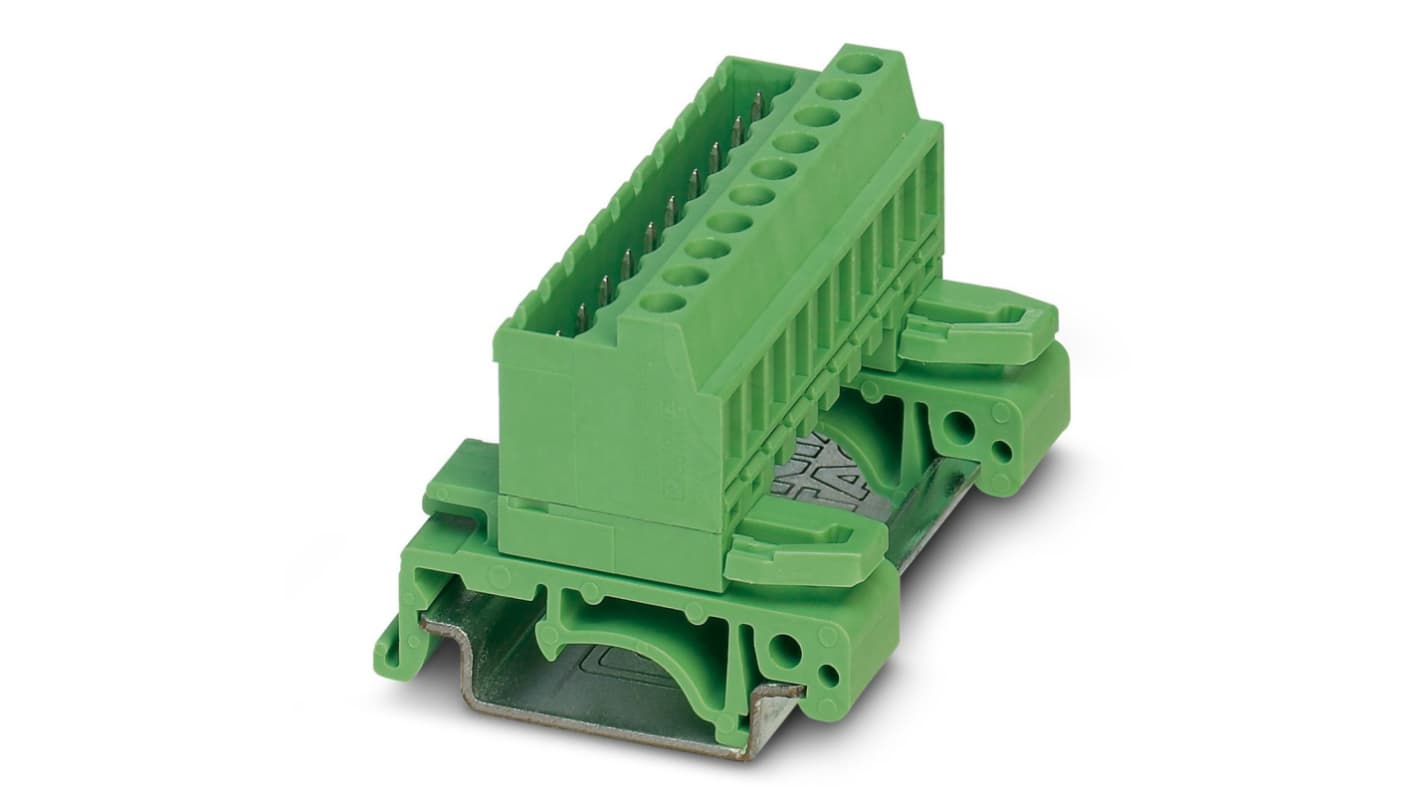

UMSTBVK 2.5 DIN Rail Connector – Phoenix Contact


The UMSTBVK DIN rail connectors from Phoenix Contact are designed to be used with Phoenix's MSTB 2.5 range of terminal blocks. This connector will allow you to directly mount terminal blocks onto NS 32 or NS 35 DIN rails thanks to its universal footing. The terminal block itself is a screw connection method terminal block to give you maximum connection strength over time, 5.08mm pitch for total versatility and is rated at 12A with a nominal voltage of 320V.

UMSTBVK series are made from a durable green polyamide just like the MSTB series and thanks to the MSTB series being so popular, this DIN rail connector can be used world-wide thanks to its well-known connection technology.

Features and benefits:


  • Strong screw connection method with tension sleeves

  • Footing can attach to NS 32 and NS 35 DIN rails

  • Green in colour to match the MSTB range

  • Cross section of 2.5mm²

Phoenix Contact UMSTBVK 2.5/ 8-G-5.08 Series DIN Rail Terminal Block, 12A - 1788172


This DIN rail terminal block is designed for dependable electrical connections in various applications within the automation and electronics sectors. It plays a crucial role in establishing efficient and organised wiring systems, ensuring safety and functionality across different environments. Its robust design caters to users in the electrical and mechanical industries seeking compact and versatile solutions.

Features & Benefits


• Supports a nominal current of 12A for effective performance
• Handles a voltage rating of up to 320V for diverse applications
• Utilises screw termination for secure connections
• Manufactured from durable, flame-resistant materials for enhanced safety

Applications


• Connects electrical components in control panels
• Ideal for signal transmission in industrial automation systems
• Used in power distribution for machinery and equipment
• Employed in junction boxes for organised wiring solutions
• Suitable for PCB connections in electronic devices

What is the ideal temperature range for operation?


The operating temperature ranges from -40 to 100°C, ensuring functionality in varying conditions.

Can it accommodate multiple connections?


Yes, it features 8 positions for secure connections of multiple conductors.

How it can be install this terminal block on a DIN rail?


Simply clip the block onto the DIN rail, ensuring it is secure and locked in place.

Is it suitable for use in outdoor applications?


While designed for versatility, it should be housed in a protective enclosure when used outdoors to prevent exposure to the elements.

What tools are needed for installation?


A standard screwdriver is required for making connections using the screw terminals.

Approvals

UL, CUL, CSA
