Phoenix Contact 3036026 STTB 2.5-PE Series Green/Yellow, 0.08 → 4mm², Double-Level, Spring Clamp Termination
- RS Stock No.:
- 627-1898
- Mfr. Part No.:
- 3036026
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£27.17
(exc. VAT)
£32.605
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 75 unit(s) ready to ship
- Plus 1,430 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £5.434 | £27.17 |
*price indicative
- RS Stock No.:
- 627-1898
- Mfr. Part No.:
- 3036026
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Green/Yellow | |
| Number of Levels | Double | |
| American Wire Gauge | 28 → 12AWG | |
| Series | STTB 2.5-PE | |
| Termination Method | Spring Clamp | |
| Cable CSA | 0.08 → 4mm² | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +110°C | |
| Standards Met | cRUus, GL, PCT, VDE | |
| Model Number | STTB 2,5-PE | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Green/Yellow | ||
Number of Levels Double | ||
American Wire Gauge 28 → 12AWG | ||
Series STTB 2.5-PE | ||
Termination Method Spring Clamp | ||
Cable CSA 0.08 → 4mm² | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +110°C | ||
Standards Met cRUus, GL, PCT, VDE | ||
Model Number STTB 2,5-PE | ||
- COO (Country of Origin):
- DE

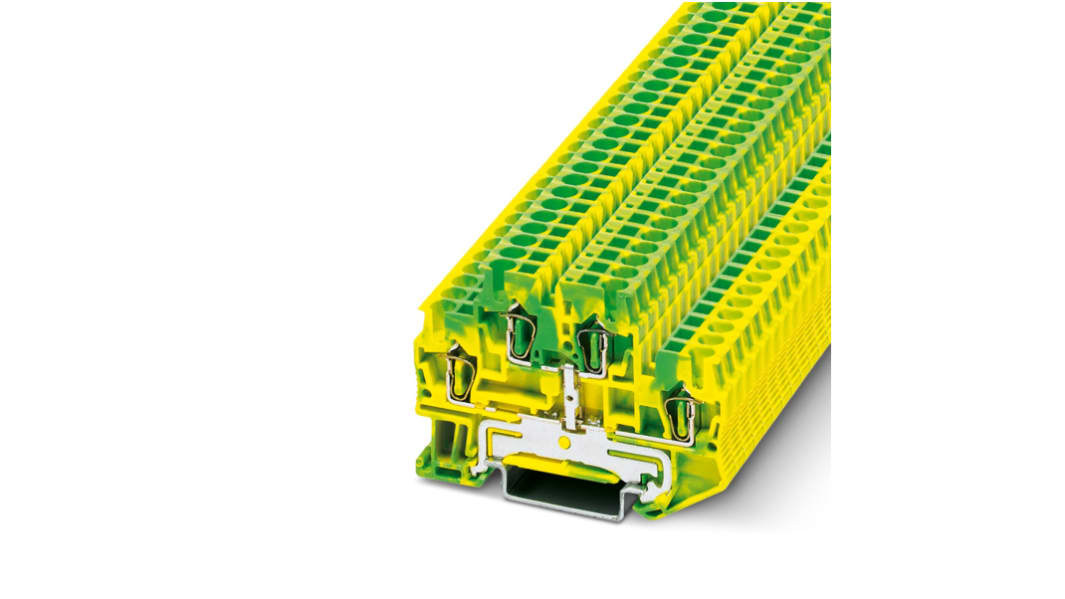

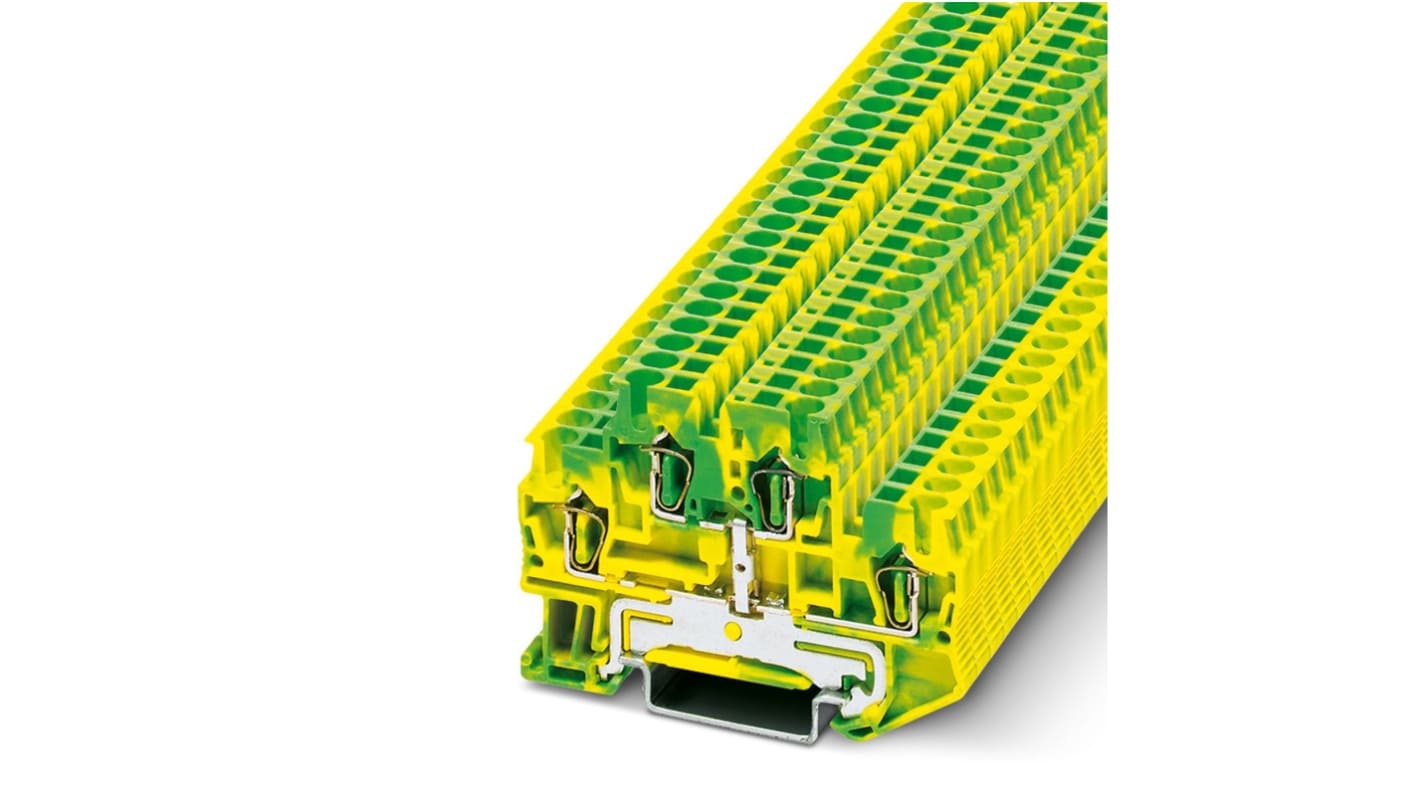

Phoenix Contact Double-Level Terminal Block, PA Insulation, 67.5mm Length - STTB 2.5-PE - 3036026
Safeguard your applications from fault currents and electrical hazards with this double-level terminal block from Phoenix Contact. It has four contact points, meaning it can control multiple circuits simultaneously. Dual-row construction and compact dimensions of 67.5 (H) x 5.2 (W) x 47.5 mm (D) ensure it takes up minimal space on your NS 35/7.5 DIN rail, so it's the right fit for tight setups. An open side panel makes it easy to link it to other terminal blocks for flexibility.
The unit is protected by polyamide housing that shrugs off mechanical impact and resists corrosion, so you're assured of its long-term performance. This material also doubles as an insulator, keeping you safe from electric shocks. Blocks like this are a regular fixture in the railway industry and marine equipment.
The unit is protected by polyamide housing that shrugs off mechanical impact and resists corrosion, so you're assured of its long-term performance. This material also doubles as an insulator, keeping you safe from electric shocks. Blocks like this are a regular fixture in the railway industry and marine equipment.
Features & Benefits
• Green/yellow colouring stands out for easy identification as a ground terminal block in your system
• Conforms to VDE specifications for harmonised European safety, quality and EMC standards
• Spring cage termination for quick, tool-free installation and reliably sturdy connections
• Stops burning in 10 seconds or less during a fire, so it's a safe choice to install in volatile areas
• Conforms to VDE specifications for harmonised European safety, quality and EMC standards
• Spring cage termination for quick, tool-free installation and reliably sturdy connections
• Stops burning in 10 seconds or less during a fire, so it's a safe choice to install in volatile areas
