Phoenix Contact 3036136 ST 10-PE Series Green/Yellow, 1.5 → 16mm², Spring Clamp Termination, Ex
- RS Stock No.:
- 501-5366
- Distrelec Article No.:
- 148-28-095
- Mfr. Part No.:
- 3036136
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£4.56
(exc. VAT)
£5.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 36 unit(s) ready to ship
- Plus 86 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.56 |
*price indicative
- RS Stock No.:
- 501-5366
- Distrelec Article No.:
- 148-28-095
- Mfr. Part No.:
- 3036136
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Green/Yellow | |
| Series | ST 10-PE | |
| American Wire Gauge | 24 → 6AWG | |
| Termination Method | Spring Clamp | |
| Cable CSA | 1.5 → 16mm² | |
| Current Rating | 65A | |
| Voltage Rating | 8 kV | |
| Hazardous Area Certification | Ex | |
| Model Number | ST 10-PE | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Green/Yellow | ||
Series ST 10-PE | ||
American Wire Gauge 24 → 6AWG | ||
Termination Method Spring Clamp | ||
Cable CSA 1.5 → 16mm² | ||
Current Rating 65A | ||
Voltage Rating 8 kV | ||
Hazardous Area Certification Ex | ||
Model Number ST 10-PE | ||
- COO (Country of Origin):
- PL
ST 4-FSI/C DIN Rail Terminal Blocks - Phoenix Contact
The ST 4-FSI/C range from Phoenix Contact are DIN rail, spring-cage terminal blocks that feature a C type fuse. This range of DIN rail, fused terminal blocks form a tight connection to your wire thanks to the spring-cage technology, it also means an effortless install! Simply push-in your wire. Not to mention, the fuse in this terminal block is a flat fuse and helps add another level of protection. DIN rails NS 35/7.5 and NS 35/15 are supported for the ST 4-FSI/C range of terminal blocks and the blocks have a nominal current of 30 A with a nominal voltage of 400 V.
The housing on these fused terminal blocks is made from a durable polyamide material and the contacts are copper with a plating. These devices accept 28-10 AWG and have a cross-section of 0.08 mm² - 6 mm².
The housing on these fused terminal blocks is made from a durable polyamide material and the contacts are copper with a plating. These devices accept 28-10 AWG and have a cross-section of 0.08 mm² - 6 mm².
Features and benefits:
- Fused for added protection
- The ST 4-FSI/C fuse terminal block accommodates flat-type fuses according to ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element
- Versions with LED for easily indicating a fuse that has been blown
- Fits on an NS 35/7.5 and NS35/15 DIN rail
- Operating temperatures of -60°C to 85°C
- Spring-loaded fuse terminals adopt the functional operation of the fuse holder and potential distribution
Typical Applications:
• Tested for railway applications
Complete Line:
The ST series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.
If you'd like to learn more about Complete Line, please click here.
If you'd like to learn more about Complete Line, please click here.
Note
Cable cross-sectional area quoted refers to cable with rigid conductors
Certificate No.
KEMA 00ATEX2052 U
Group and Category
II 2 G D Ex e II

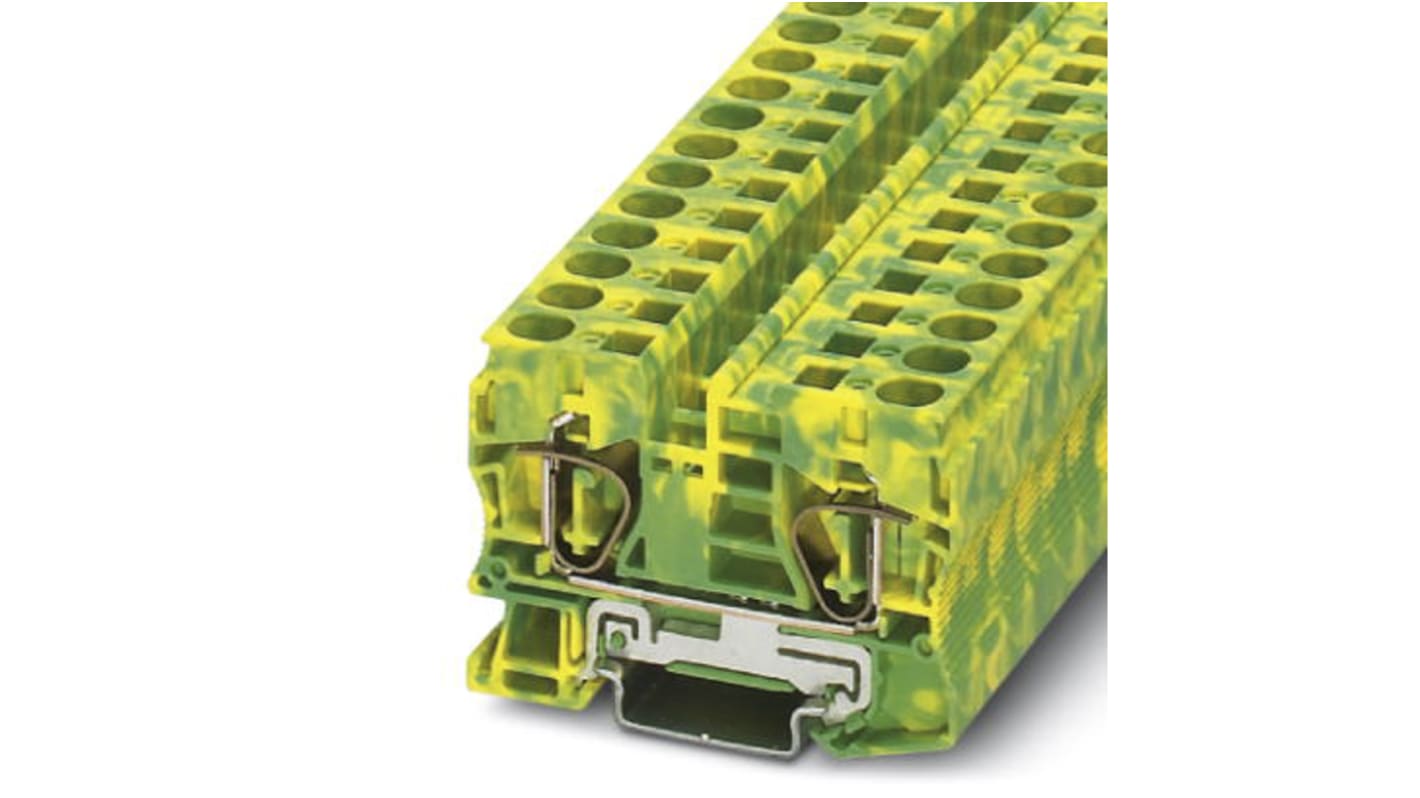

Phoenix Contact ST 10-PE Series Modular Terminal Block, 65A - 3036136
This modular terminal block provides a reliable connection for various electrical applications. It is engineered to meet the stringent demands of the automation, electrical, and mechanical sectors, ensuring effective grounding solutions.
Features & Benefits
• High current capacity of 65A suitable for demanding applications
• Rated voltage of 8 kV ensures safety in high-voltage environments
• Spring cage connection method guarantees secure and robust wire connections
• ATEX certification allows use in hazardous locations
• Green/yellow colour coding improves visibility and safety
• Rated voltage of 8 kV ensures safety in high-voltage environments
• Spring cage connection method guarantees secure and robust wire connections
• ATEX certification allows use in hazardous locations
• Green/yellow colour coding improves visibility and safety
Applications
• Designed for grounding in railway systems
• Suitable for plant engineering and machine manufacturing
• Suitable for plant engineering and machine manufacturing
What types of connections can it accommodate?
It supports both rigid and flexible conductors with cross-sections ranging from 0.2mm² to 16mm².
How does the product perform in extreme temperatures?
It operates effectively within a temperature range of -60 to 110°C.
Can this product be used with DIN rails?
Yes, it is intended for installation on NS 35/7.5 and NS 35/15 DIN rails.
