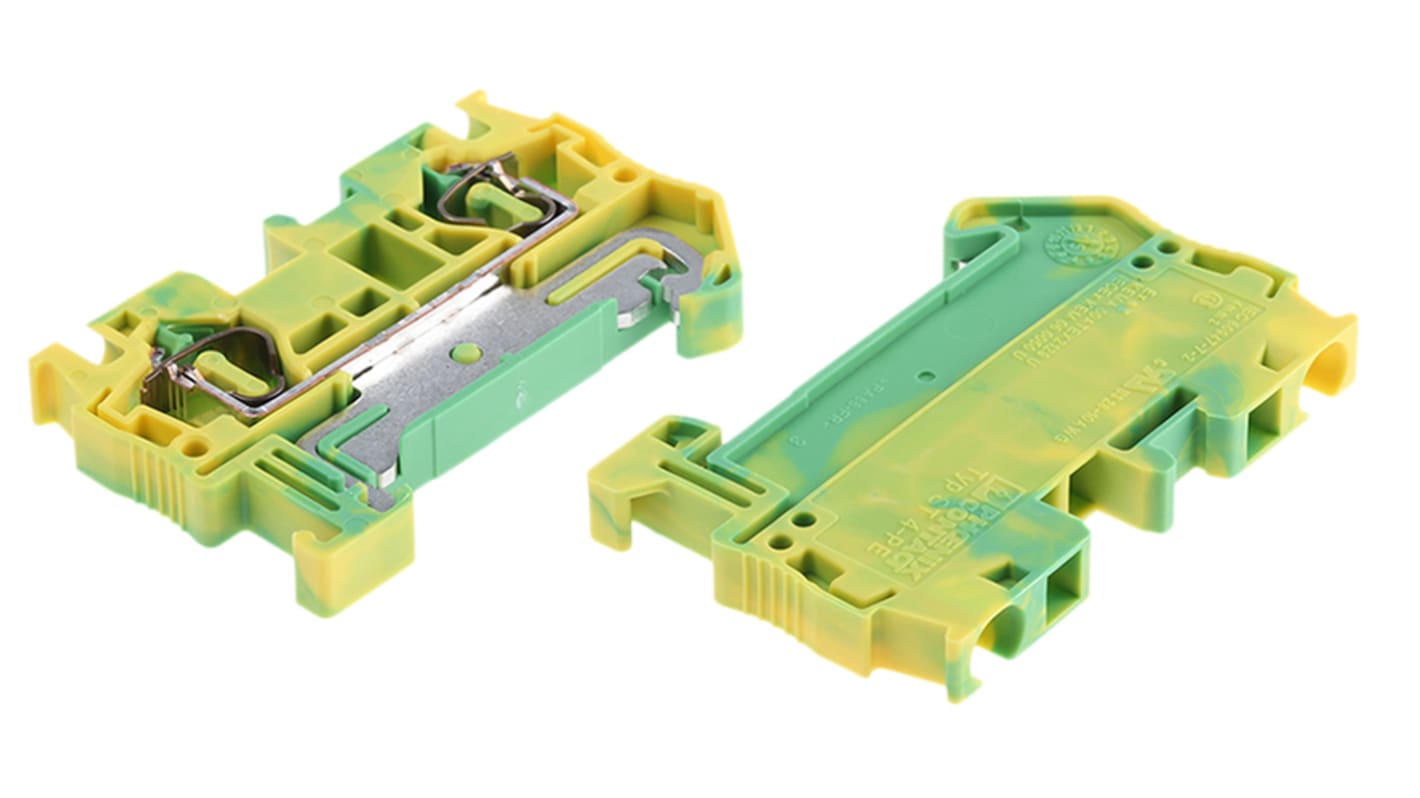

Phoenix Contact 3031380 ST 4-PE Series Earth Terminal Block Green, Yellow, 0.08mm², 6 mm², 1-Level, Spring Cage
- RS Stock No.:
- 458-0875
- Distrelec Article No.:
- 304-33-785
- Mfr. Part No.:
- 3031380
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£15.20
(exc. VAT)
£18.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 230 unit(s) ready to ship
- Plus 95 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.04 | £15.20 |
*price indicative
- RS Stock No.:
- 458-0875
- Distrelec Article No.:
- 304-33-785
- Mfr. Part No.:
- 3031380
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Green, Yellow | |
| Product Type | Earth Terminal Block | |
| Number of Levels | 1 | |
| Series | ST 4-PE | |
| Voltage | 800V | |
| Minimum Wire Size AWG | 28AWG | |
| Cable CSA | 0.08, 6mm² | |
| Maximum Wire Size AWG | 10AWG | |
| Fused | No | |
| Minimum Operating Temperature | -5°C | |
| Terminal Block Current | 52A | |
| Termination Type | Spring Cage | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA, cULus, VDE | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Green, Yellow | ||
Product Type Earth Terminal Block | ||
Number of Levels 1 | ||
Series ST 4-PE | ||
Voltage 800V | ||
Minimum Wire Size AWG 28AWG | ||
Cable CSA 0.08, 6mm² | ||
Maximum Wire Size AWG 10AWG | ||
Fused No | ||
Minimum Operating Temperature -5°C | ||
Terminal Block Current 52A | ||
Termination Type Spring Cage | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA, cULus, VDE | ||
- COO (Country of Origin):
- DE
Phoenix Contact Earth Terminal Block, Fused Type, 52A Current Rating - ST 4-PE - 3031380
To safely discharge potentially dangerous current to the ground, add this earth terminal block from Phoenix Contact to your setup. It uses spring-cage technology so you can fix your wires by simply pushing them in, removing the need for any tools. For flexibility, it accommodates wires ranging in size from 28 to 10AWG. Adjusting your cables without disassembling the unit is a breeze, thanks to a handy open side panel. A C-type fuse is on hand to bear the brunt of fault currents, preventing them from reaching sensitive electrical components downstream.
As it comes with shock resistance of up to 30g at 18ms, this block holds firm in shaky conditions. Its industry-standard green and yellow housing lets you easily pick it out as a ground protection device in a crowded panel. The robust PA housing offers insulation protection to help keep you safe from shocking incidents. You can use this terminal block for electrical engineering systems and machine controls.
Features & Benefits
• 52A current rating for safe performance in high-power systems
• UL 94-V0 flammability rating indicates that it won't cause support the spread of a fire
• ATEX-certified for use in potentially hazardous environments
