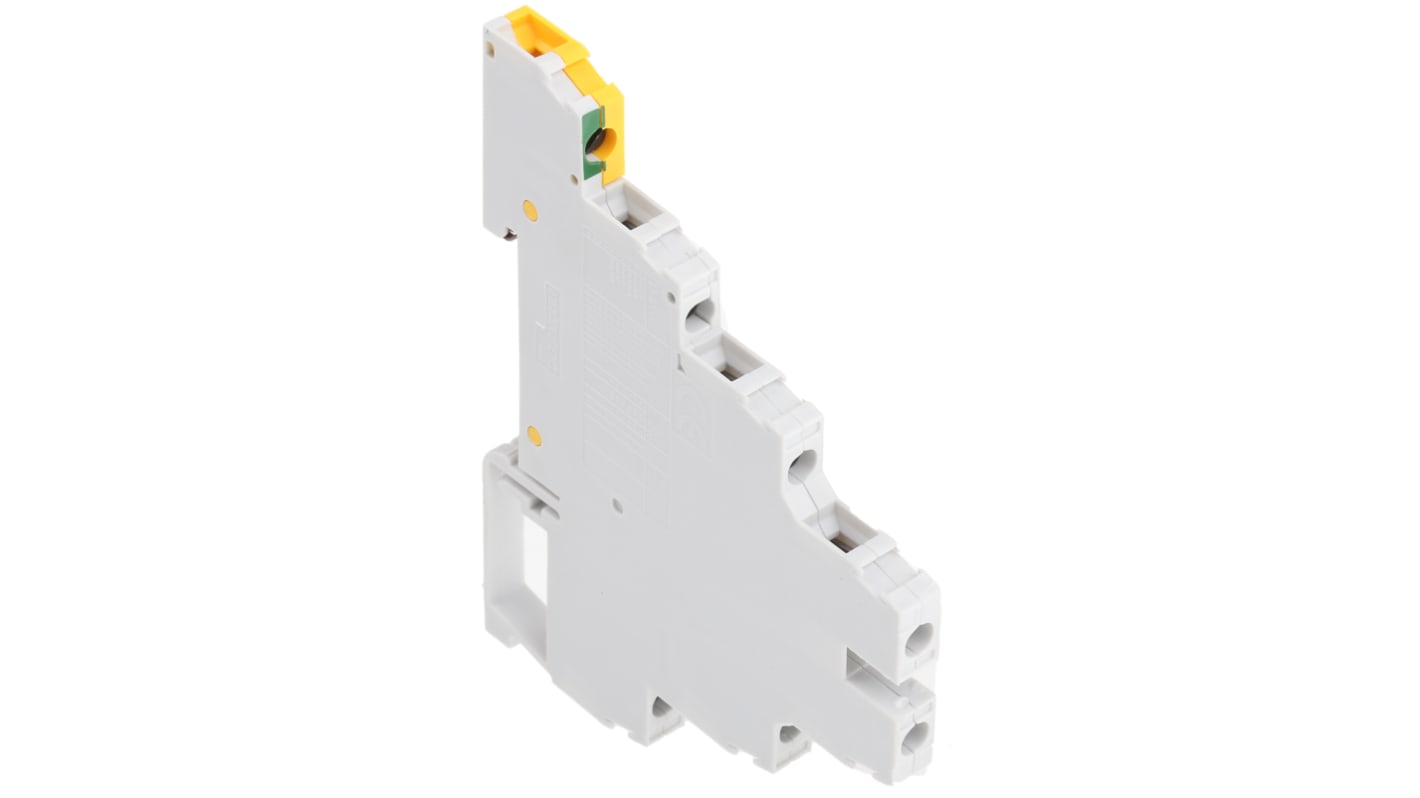

Entrelec 1SNA299684R0200 SNA Series Earth Terminal Block Grey, 4mm², 3-Level, Screw
- RS Stock No.:
- 332-0509
- Mfr. Part No.:
- 1SNA299684R0200
- Brand:
- Entrelec
Subtotal (1 pack of 5 units)*
£66.14
(exc. VAT)
£79.37
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £13.228 | £66.14 |
*price indicative
- RS Stock No.:
- 332-0509
- Mfr. Part No.:
- 1SNA299684R0200
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Entrelec | |
| Product Type | Earth Terminal Block | |
| Colour | Grey | |
| Number of Levels | 3 | |
| Voltage | 500V ac | |
| Series | SNA | |
| Minimum Wire Size AWG | 22AWG | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Pitch | 6mm | |
| Minimum Operating Temperature | -5°C | |
| Termination Type | Screw | |
| Terminal Block Current | 32A | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | EU Directive 2002/95/EC | |
| Select all | ||
|---|---|---|
Brand Entrelec | ||
Product Type Earth Terminal Block | ||
Colour Grey | ||
Number of Levels 3 | ||
Voltage 500V ac | ||
Series SNA | ||
Minimum Wire Size AWG 22AWG | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Pitch 6mm | ||
Minimum Operating Temperature -5°C | ||
Termination Type Screw | ||
Terminal Block Current 32A | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals EU Directive 2002/95/EC | ||
- COO (Country of Origin):
- FR
Triple Deck with Grounding
Provides 3 circuits within the same terminal width and a clamp electrically grounded to the mounting rail
Ideal for use in the supply of 3 -phase motors with protection
Blocks are closed therefore do not require end section
Comb facility eases wiring by being placed in the insulating support and remaining captive when clamp is loosened
IP20 protection
5000 Universal Series
This universal range of terminals mounts on both asymmetric rail 'G' profile and Top hat profile. Moulded in tough flame-resistant polyamide 6.6, with a working temperature of -55°C to +130°C. The captive terminal screws have hardened heads to prevent burring. Cable entry and clamp design allows easy installation, higher voltage and cable carrying capacity. Cable markers are available RS 460-569
Note
Stock numbers 472-9569 and 472-9575 are compatible with deep top hat rails only
