WAGO 281-101-1 281 Series Grey, 4mm², 2-Level, Cage Clamp Termination
- RS Stock No.:
- 288-5227
- Mfr. Part No.:
- 281-101-1
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£111.10
(exc. VAT)
£133.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £111.10 | £1.111 |
*price indicative
- RS Stock No.:
- 288-5227
- Mfr. Part No.:
- 281-101-1
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | WAGO | |
Colour | Grey | |
Number of Levels | 2 | |
American Wire Gauge | 12AWG | |
Series | 281 | |
Termination Method | Cage Clamp | |
Cable CSA | 4mm² | |
Select all | ||
---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels 2 | ||
American Wire Gauge 12AWG | ||
Series 281 | ||
Termination Method Cage Clamp | ||
Cable CSA 4mm² | ||
- COO (Country of Origin):
- IN

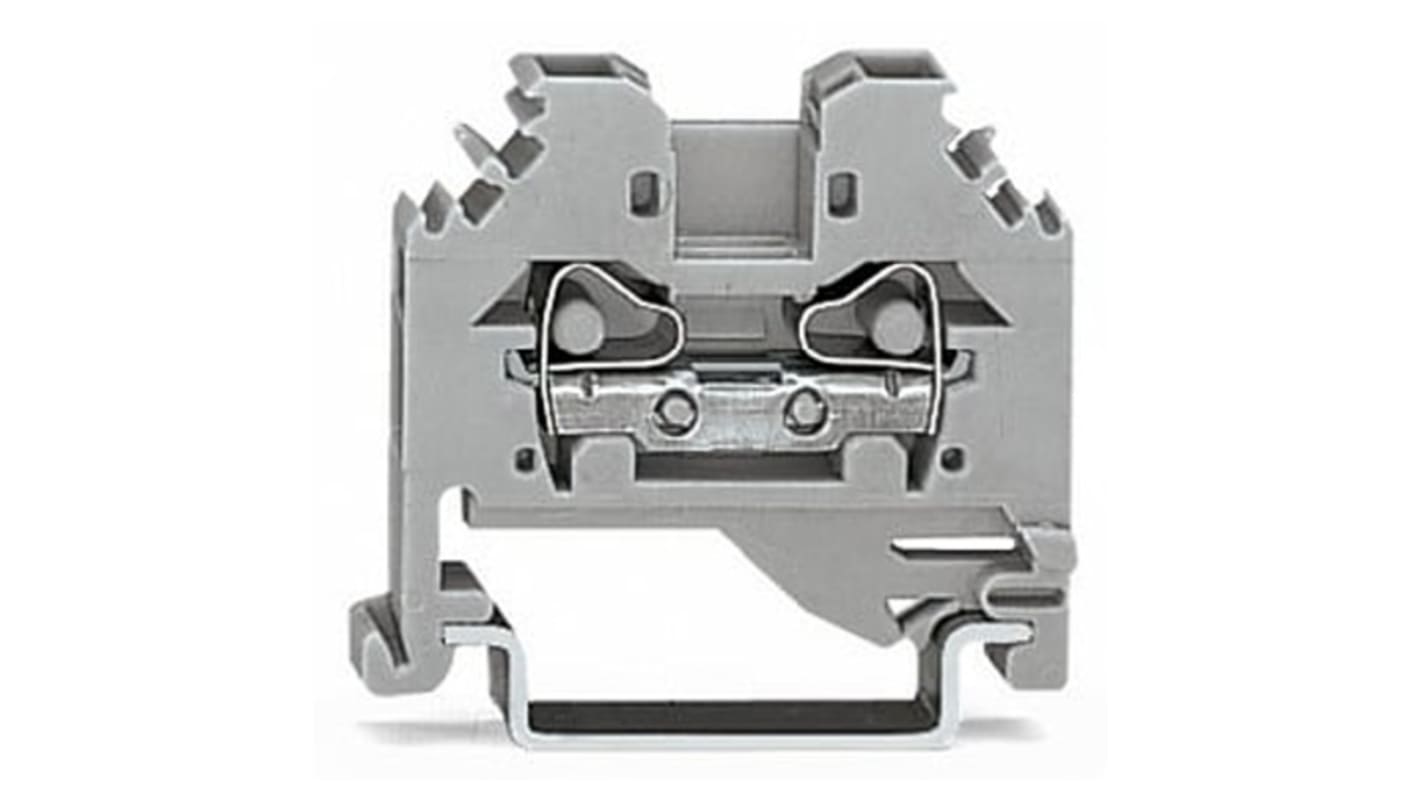

The WAGO 2-conductor through terminal block having nominal cross section of 4 mm². It has lateral marker slots for DIN-rail 35 x 15 and 35 x 7.5 mm. It has CAGE CLAMP connection technology.
Suitable for solid aluminum conductors up to 4 mm²
Automatically destroys the oxide film during clamping
Prevents fresh oxidation at the clamping point
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block)
Automatically destroys the oxide film during clamping
Prevents fresh oxidation at the clamping point
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block)
