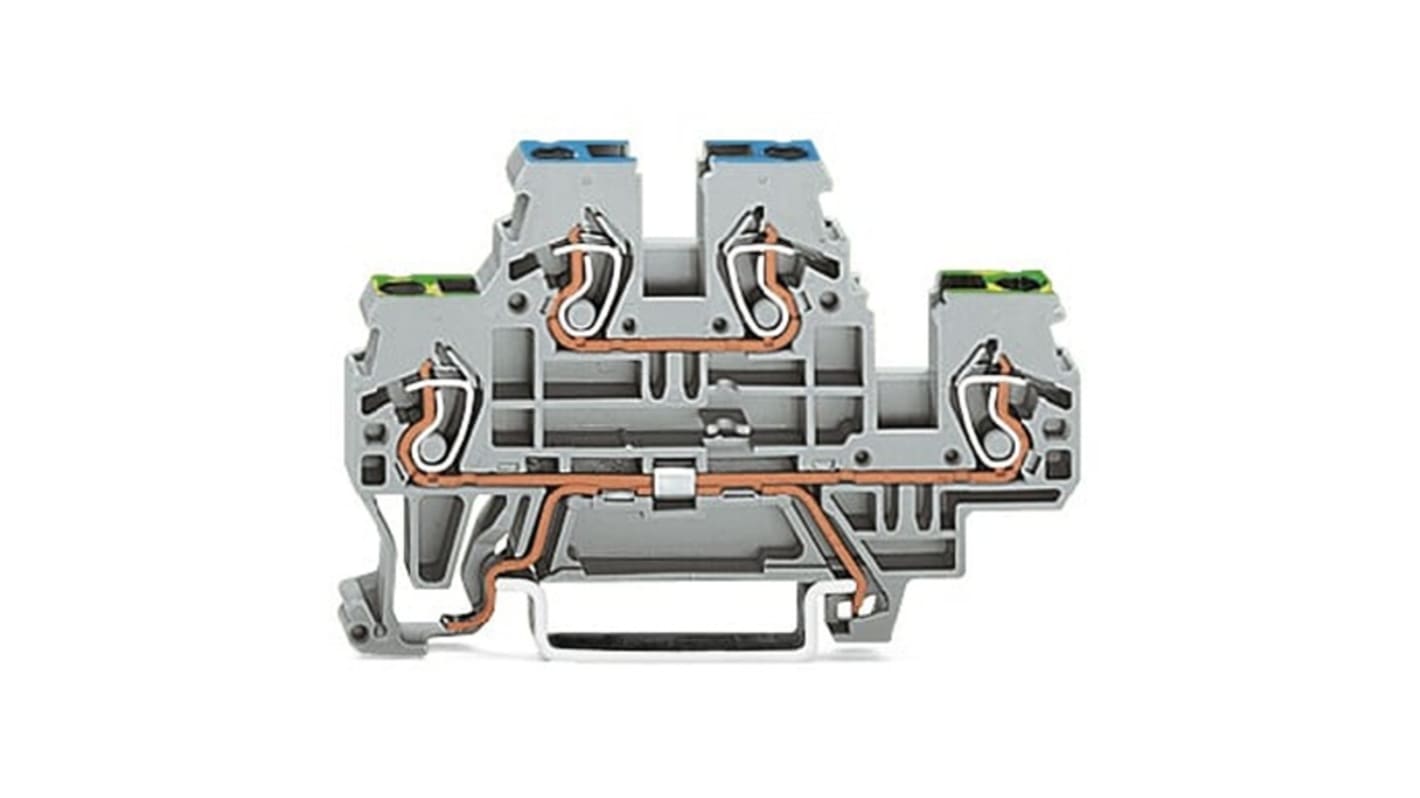

WAGO 870-517 870 Series Grey, 2.5mm², 2-Level, Cage Clamp Termination

View all DIN Rail Terminal Blocks
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
279-2842
Mfr. Part No.:
870-517
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Grey

Number of Levels

2

Series

870

American Wire Gauge

12AWG

Termination Method

Cage Clamp

Cable CSA

2.5mm²

Fused

No

COO (Country of Origin):
DE
The WAGO Double deck terminal block designed for ground conductors and through connections. This terminal block features blue conductor entry on the upper deck. It is designed for DIN rails of dimensions 35 x 15 and 35 x 7.5 and utilizes CAGE CLAMP connection technology. The actuation type is via an operating tool. It can accommodate a variety of conductor materials, including copper, with solid conductors ranging from 0.08 to 2.5 mm² and fine stranded conductors from 0.08 to 4 mm². It can also handle fine stranded conductors with insulated ferrules of 0.08 to 1.5 mm².

RoHS compliant
V0 flammability class per UL94
