WAGO 2002-1308 TOPJOB S Series White, 2.5mm², 1-Level, Push In Termination, ATEX, CSA, IECEx
- RS Stock No.:
- 278-8117
- Mfr. Part No.:
- 2002-1308
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£334.31
(exc. VAT)
£401.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £334.31 | £3.343 |
*price indicative
- RS Stock No.:
- 278-8117
- Mfr. Part No.:
- 2002-1308
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | WAGO | |
Colour | White | |
Number of Levels | 1 | |
American Wire Gauge | 14AWG | |
Series | TOPJOB S | |
Termination Method | Push In | |
Cable CSA | 2.5mm² | |
Hazardous Area Certification | ATEX, CSA, IECEx | |
Select all | ||
---|---|---|
Brand WAGO | ||
Colour White | ||
Number of Levels 1 | ||
American Wire Gauge 14AWG | ||
Series TOPJOB S | ||
Termination Method Push In | ||
Cable CSA 2.5mm² | ||
Hazardous Area Certification ATEX, CSA, IECEx | ||
- COO (Country of Origin):
- DE

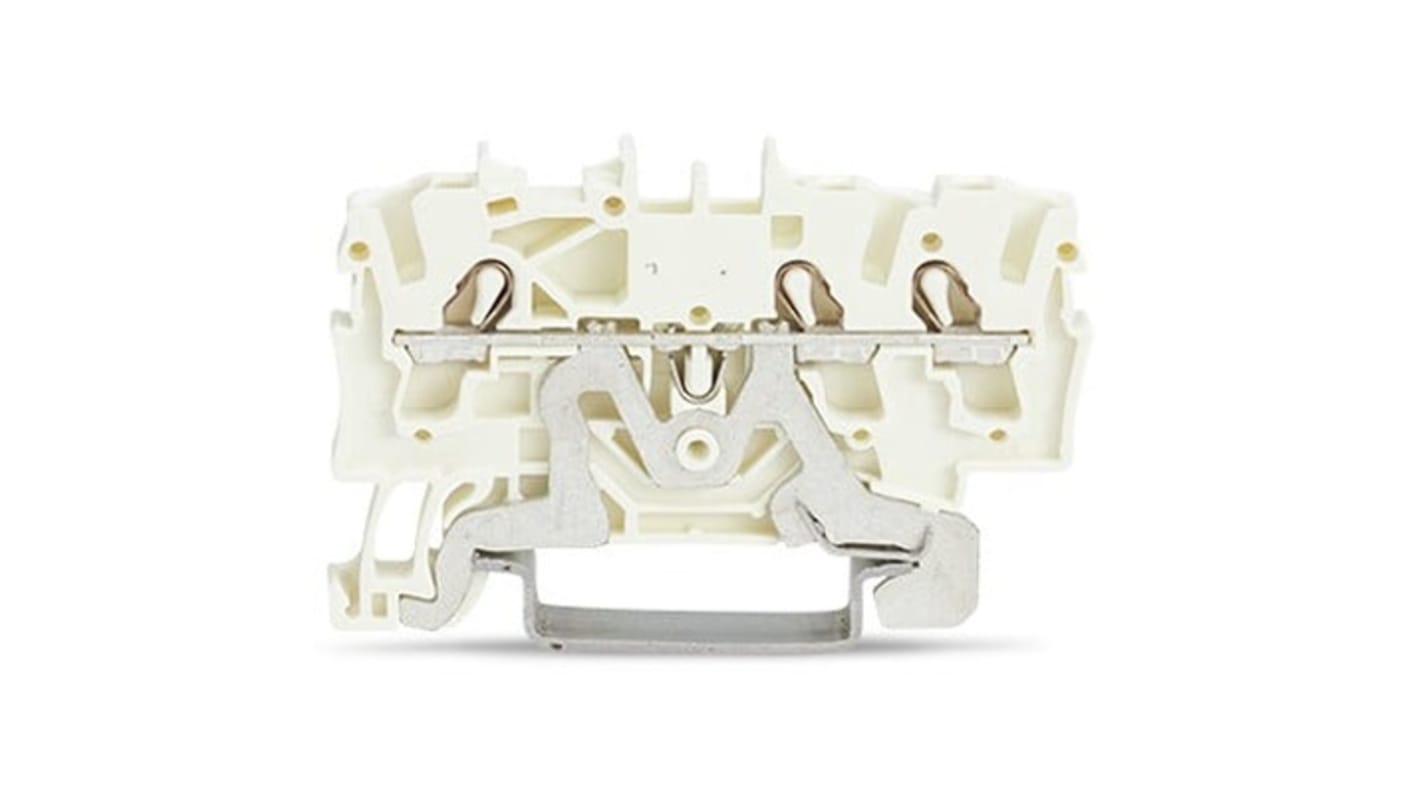

The WAGO Terminal block is a three conductor shield terminal block. It is available in white colour. The insulation of this terminal block is made from polyamide material and it has push in cage clamp connection technology.
RoHS compliant
0.125 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
0.125 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
