WAGO 2002-1206 TOPJOB S Series DIN Rail Terminal Block Yellow, 2.5mm², 1-Level, Cage Clamp, ATEX, EAC Ex, IECEx

Subtotal (1 box of 100 units)*

£76.76

(exc. VAT)

£92.11

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£76.76£0.768

*price indicative

RS Stock No.:
278-8099
Mfr. Part No.:
2002-1206
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Yellow

Product Type

DIN Rail Terminal Block

Number of Levels

1

Number of Positions

2

Series

TOPJOB S

Voltage

600V

Cable CSA

2.5mm²

Minimum Wire Size AWG

22AWG

Maximum Wire Size AWG

12AWG

Terminal Block Current

20A

Minimum Operating Temperature

-60°C

Termination Type

Cage Clamp

Maximum Operating Temperature

105°C

Hazardous Area Certification

ATEX, EAC Ex, IECEx

Standards/Approvals

EN60947, UL 1059

COO (Country of Origin):
DE

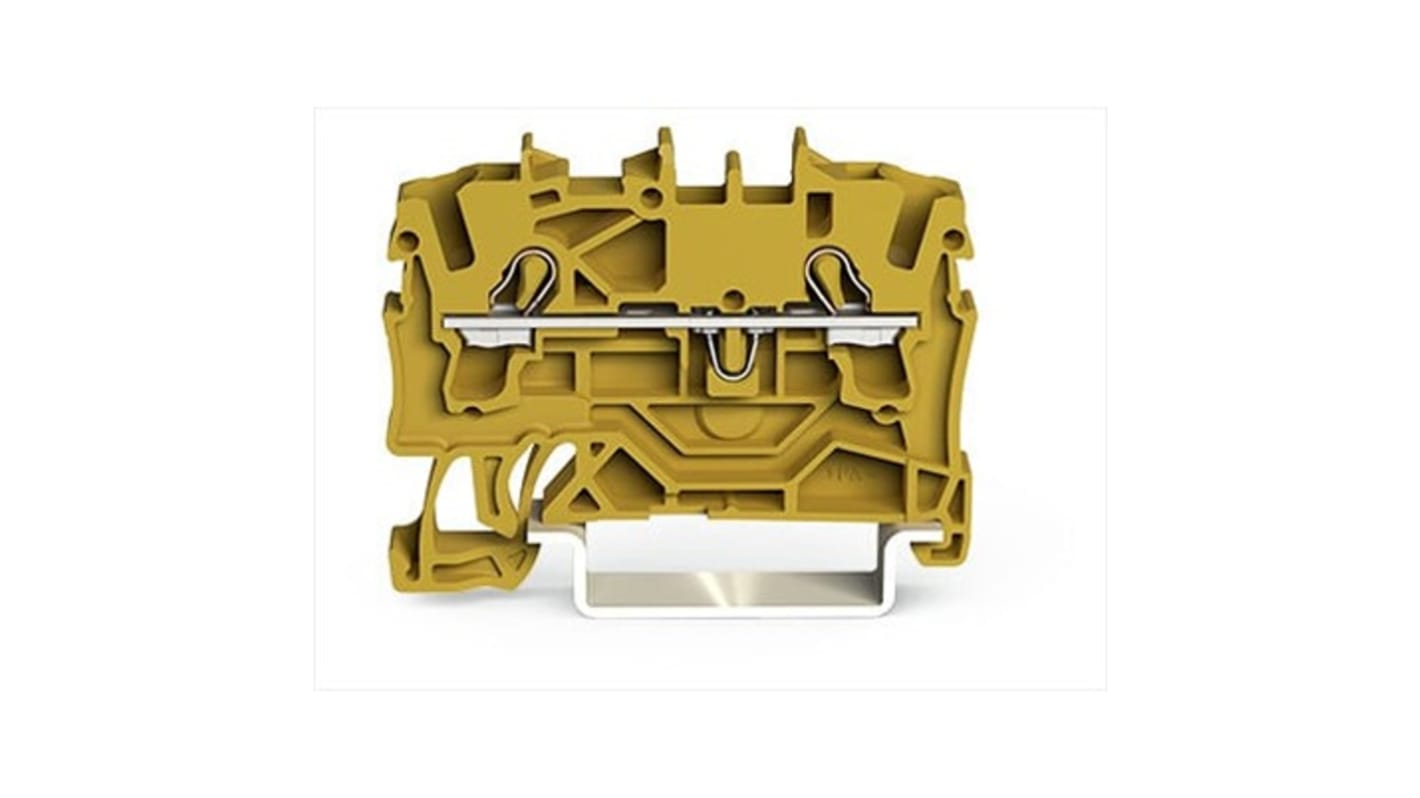

The WAGO Terminal block is a two conductor through terminal block. It is available in yellow colour with operating tool type actuation. This terminal block insulation is made from polyamide material and it has push in cage clamp connection technology.

RoHS compliant

0.109 MJ fire load

DIN 35 rail mounting

V0 flammability class per UL94
