WAGO TOPJOB S Series DIN Rail Terminal Block Red, 1.5 mm², 1-Level, Cage Clamp, ATEX, EAC Ex, IECEx

View all DIN Rail Terminal Blocks

Subtotal (1 box of 10 units)*

£6.40

(exc. VAT)

£7.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 28 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£6.40£0.64

*price indicative

RS Stock No.:
278-8025
Mfr. Part No.:
2001-1203
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Colour

Red

Product Type

DIN Rail Terminal Block

Number of Levels

1

Number of Positions

2

Voltage

600 V

Series

TOPJOB S

Cable CSA

1.5 mm²

Minimum Wire Size AWG

22 AWG

Maximum Wire Size AWG

14 AWG

Termination Type

Cage Clamp

Minimum Operating Temperature

-60°C

Terminal Block Current

15A

Hazardous Area Certification

ATEX, EAC Ex, IECEx

Maximum Operating Temperature

105°C

Standards/Approvals

C22.2 No.158, EN60947, UL1059

COO (Country of Origin):
DE

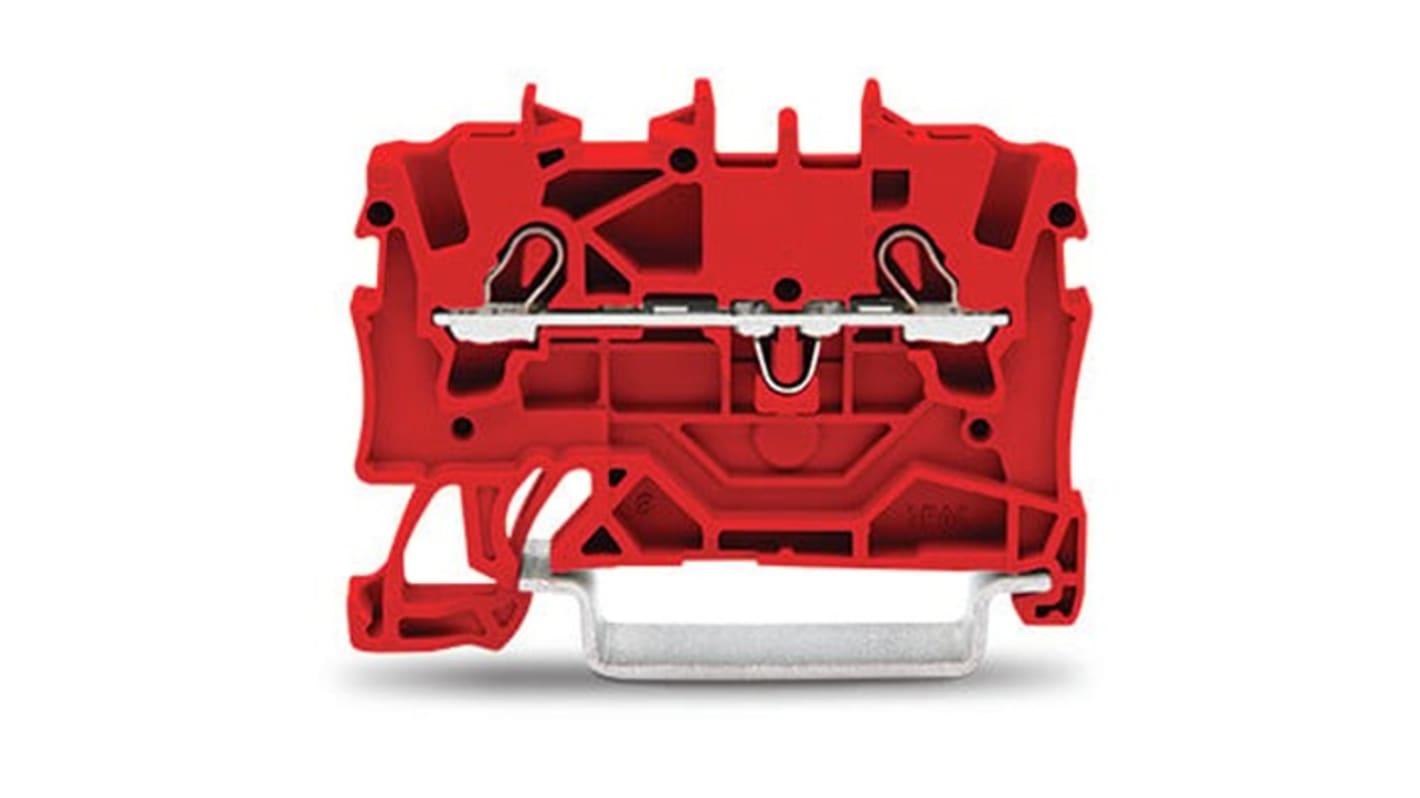

The WAGO Terminal block is a two conductor through terminal block. It is available in red colour with operating tool type actuation. This terminal block insulation is made from polyamide material and it has push in cage clamp connection technology.

RoHS compliant

0.087 MJ fire load

DIN 35 rail mounting

V0 flammability class per UL94
