WAGO 2000-5410 TOPJOB S Series Grey, 1mm², 4-Level, Push-In Cage Clamp Termination
- RS Stock No.:
- 278-7999
- Mfr. Part No.:
- 2000-5410
- Brand:
- WAGO
Subtotal (1 box of 5 units)*
£30.64
(exc. VAT)
£36.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £30.64 | £6.128 |
*price indicative
- RS Stock No.:
- 278-7999
- Mfr. Part No.:
- 2000-5410
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Number of Levels | 4 | |
| Series | TOPJOB S | |
| American Wire Gauge | 24 → 16AWG | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 1mm² | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels 4 | ||
Series TOPJOB S | ||
American Wire Gauge 24 → 16AWG | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 1mm² | ||
- COO (Country of Origin):
- DE

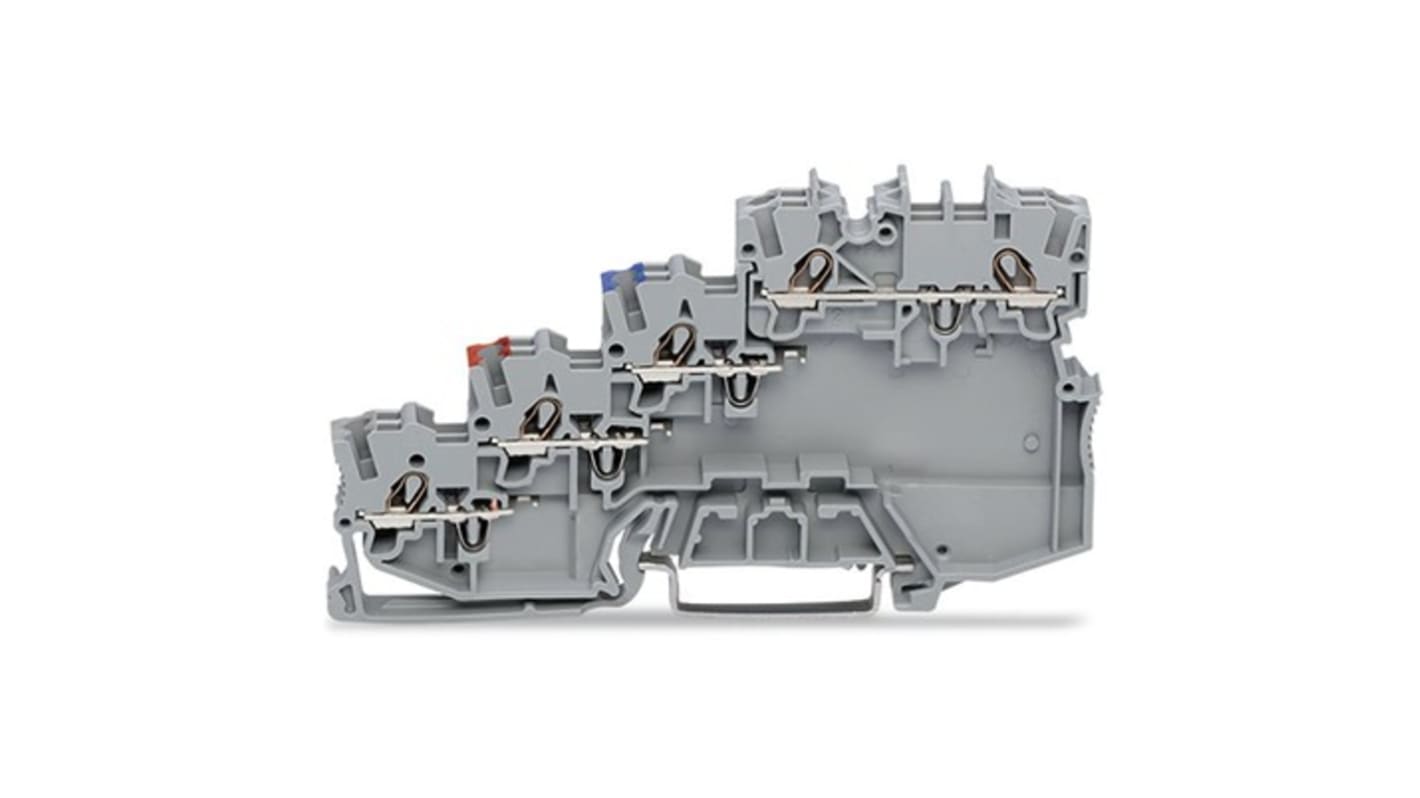

The WAGO Terminal block is a four conductor sensor terminal block. It is available in grey colour with ground connection via push in type jumper bars. This terminal block insulation is made from polyamide material and it has push in cage clamp connection technology. The double spacing per pole of this terminal block series maximizes connectivity. For example, ten sensors may be connected using only five sensor terminal blocks plus a power supply terminal block.
RoHS compliant
0.377 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
0.377 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
