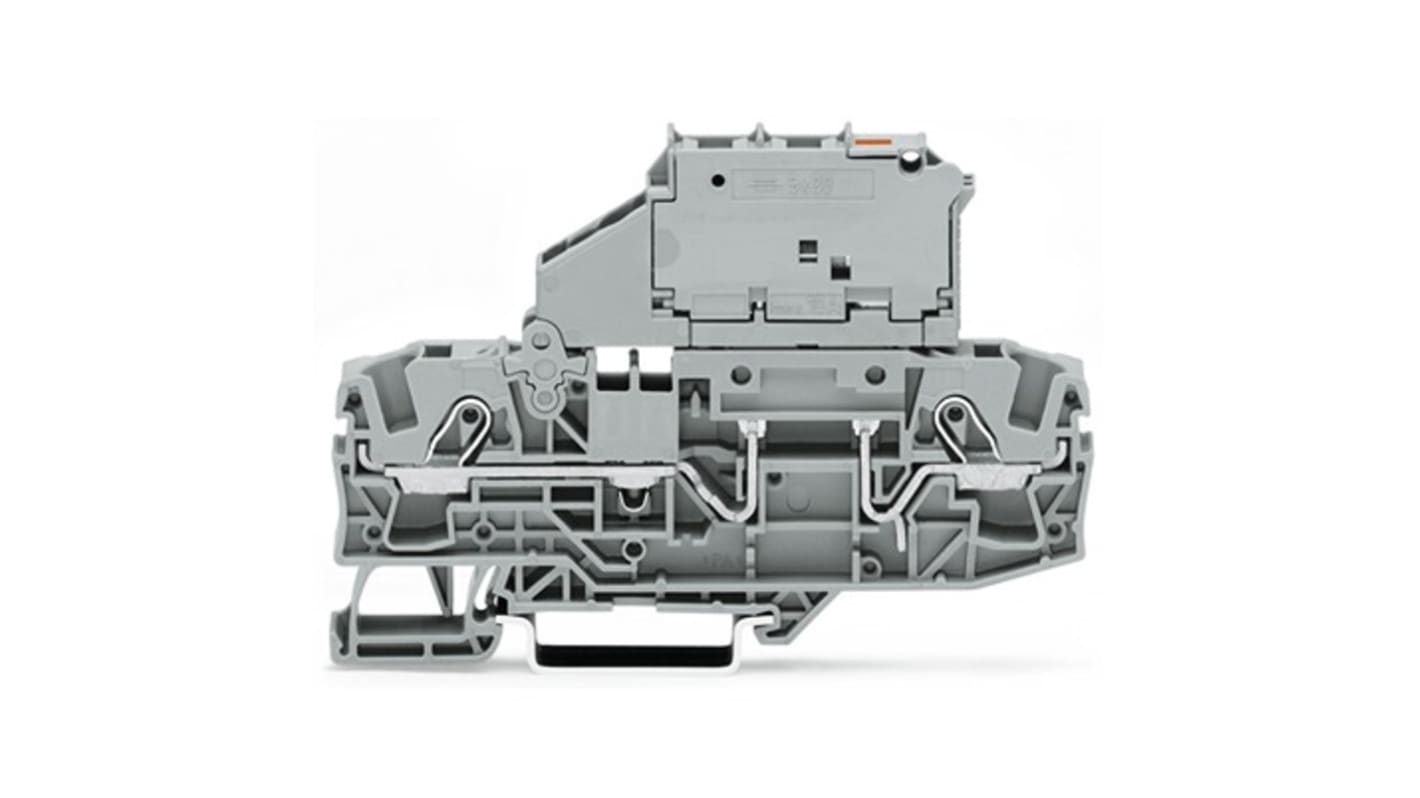

WAGO TOPJOB S Series Grey Fuse Terminal Block, 6mm², 1-Level, Push In Termination, Fused, CSA

The WAGO Terminal block is a two conductor fuse terminal block which is available with pivoting fuse holder. This terminal block provides class III overvoltage category according to IEC EN 60947 7 3 standard and its operates on 800 V nominal voltage, rated 8 kV surge voltage and 10 A rated current. This terminal block has polyamide insulation material with push in cage clamp connection technology.

RoHS compliant
0.46 MJ fire load
DIN 35 rail mounting
Blown fuse indication by LED
V0 flammability class per UL94
