WAGO 2004-1406 TOPJOB S Series DIN Rail Terminal Block Yellow, 4mm², 1-Level, Push-in, IECEx/ATEX/CSA
- RS Stock No.:
- 278-7748
- Mfr. Part No.:
- 2004-1406
- Brand:
- WAGO
Subtotal (1 box of 10 units)*
£14.72
(exc. VAT)
£17.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 5 unit(s) shipping from 03 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £14.72 | £1.472 |
*price indicative
- RS Stock No.:
- 278-7748
- Mfr. Part No.:
- 2004-1406
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | DIN Rail Terminal Block | |
| Colour | Yellow | |
| Sub Type | 4-Conductor Terminal Block | |
| Number of Levels | 1 | |
| Voltage | 250V | |
| Series | TOPJOB S | |
| Cable CSA | 4mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Hazardous Area Certification | IECEx/ATEX/CSA | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS, CSA | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type DIN Rail Terminal Block | ||
Colour Yellow | ||
Sub Type 4-Conductor Terminal Block | ||
Number of Levels 1 | ||
Voltage 250V | ||
Series TOPJOB S | ||
Cable CSA 4mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 12AWG | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Hazardous Area Certification IECEx/ATEX/CSA | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS, CSA | ||
- COO (Country of Origin):
- DE

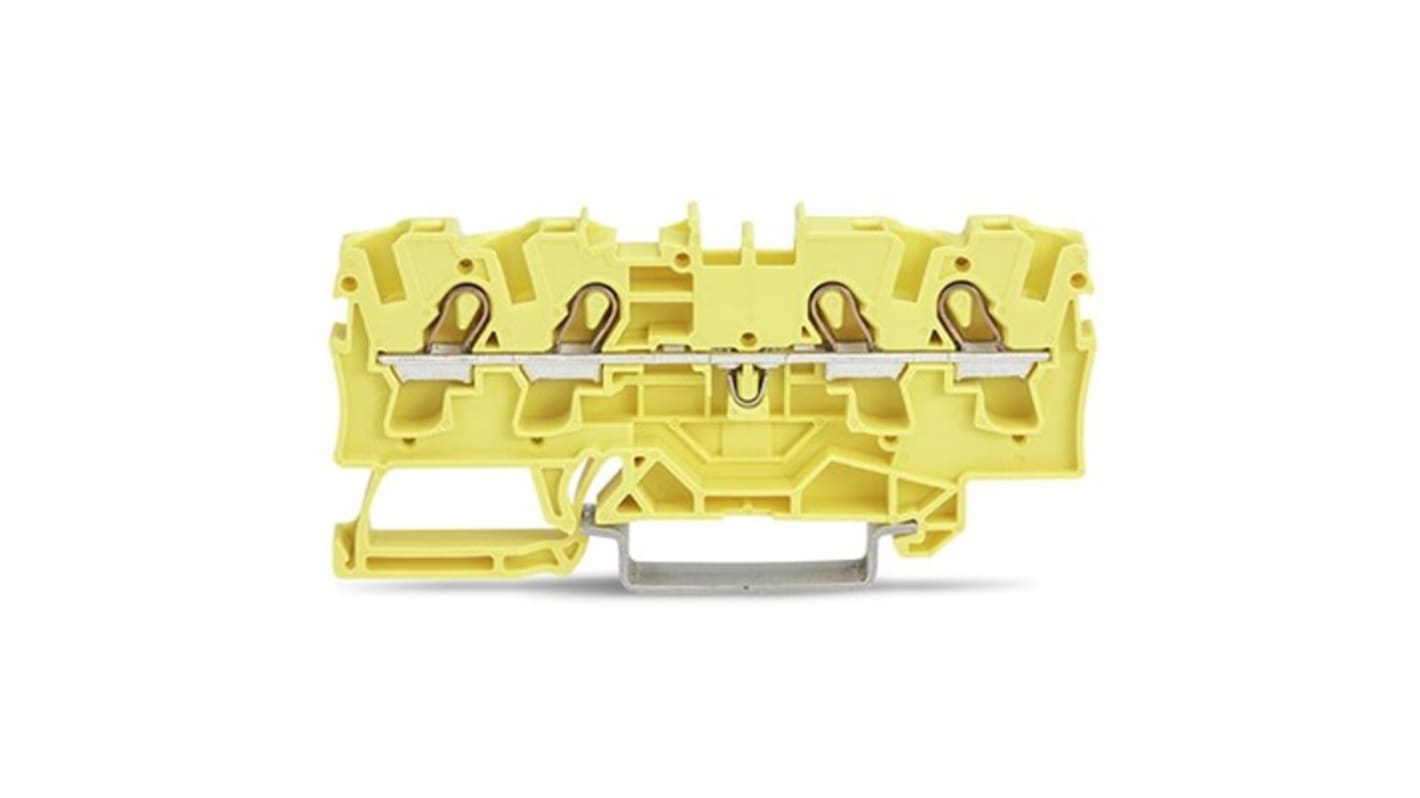

The WAGO Terminal block is a four conductor through terminal block. It is available in yellow colour. This terminal block insulation is made from polyamide material and it has push in cage clamp connection technology.
RoHS compliant
0.181 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
