WAGO 2002-6302 TOPJOB S Series Orange, 2.5mm², 1-Level, Push In Termination, ATEX, CSA, IECEx
- RS Stock No.:
- 278-7651
- Mfr. Part No.:
- 2002-6302
- Brand:
- WAGO
Subtotal (1 box of 10 units)*
£9.37
(exc. VAT)
£11.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £9.37 | £0.937 |
*price indicative
- RS Stock No.:
- 278-7651
- Mfr. Part No.:
- 2002-6302
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | WAGO | |
Colour | Orange | |
Number of Levels | 1 | |
Series | TOPJOB S | |
American Wire Gauge | 14AWG | |
Termination Method | Push In | |
Cable CSA | 2.5mm² | |
Hazardous Area Certification | ATEX, CSA, IECEx | |
Select all | ||
---|---|---|
Brand WAGO | ||
Colour Orange | ||
Number of Levels 1 | ||
Series TOPJOB S | ||
American Wire Gauge 14AWG | ||
Termination Method Push In | ||
Cable CSA 2.5mm² | ||
Hazardous Area Certification ATEX, CSA, IECEx | ||
- COO (Country of Origin):
- CN

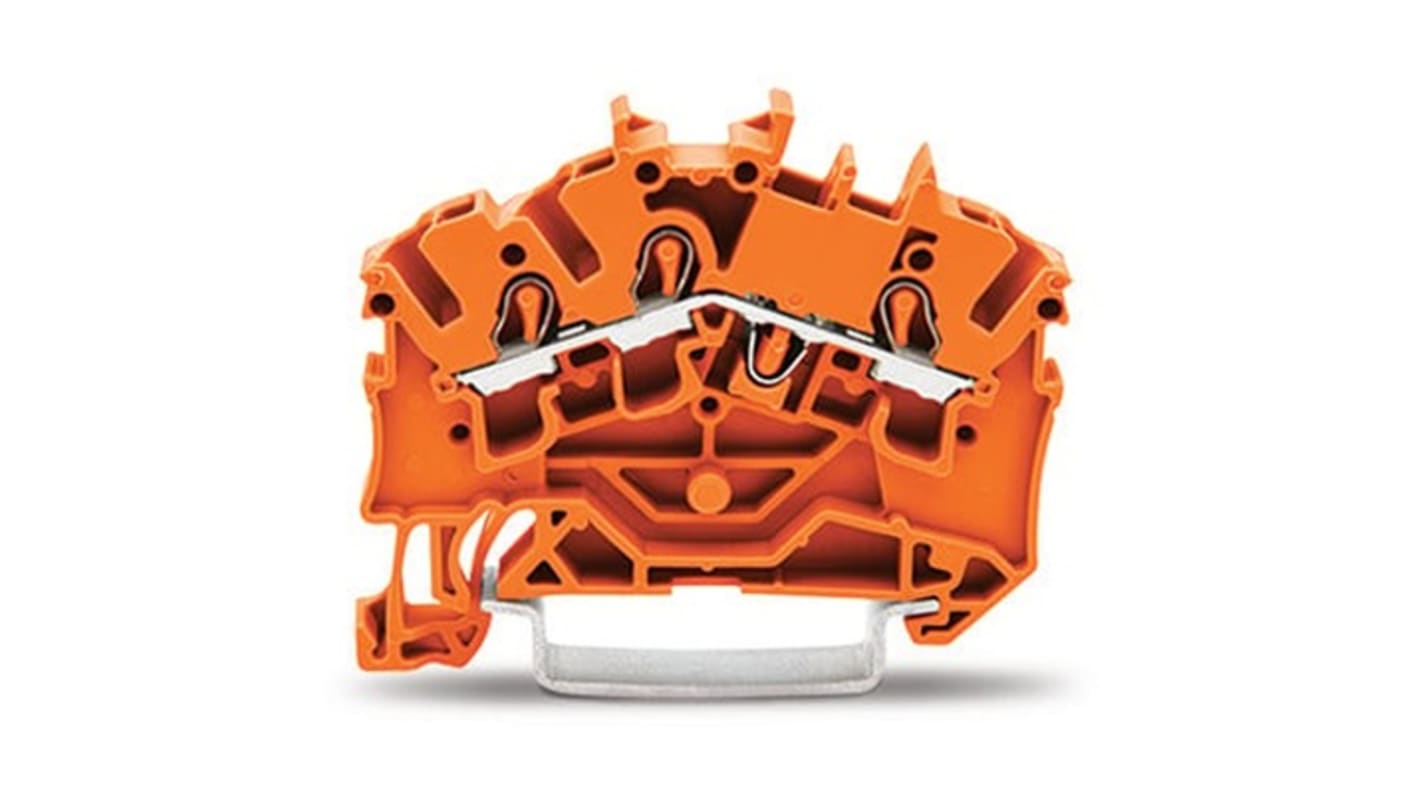

The WAGO Terminal block is a three conductor through terminal block. It is available in orange colour. The insulation of this terminal block is made from polyamide material and it has push in cage clamp connection technology.
RoHS compliant
0.123 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
0.123 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
