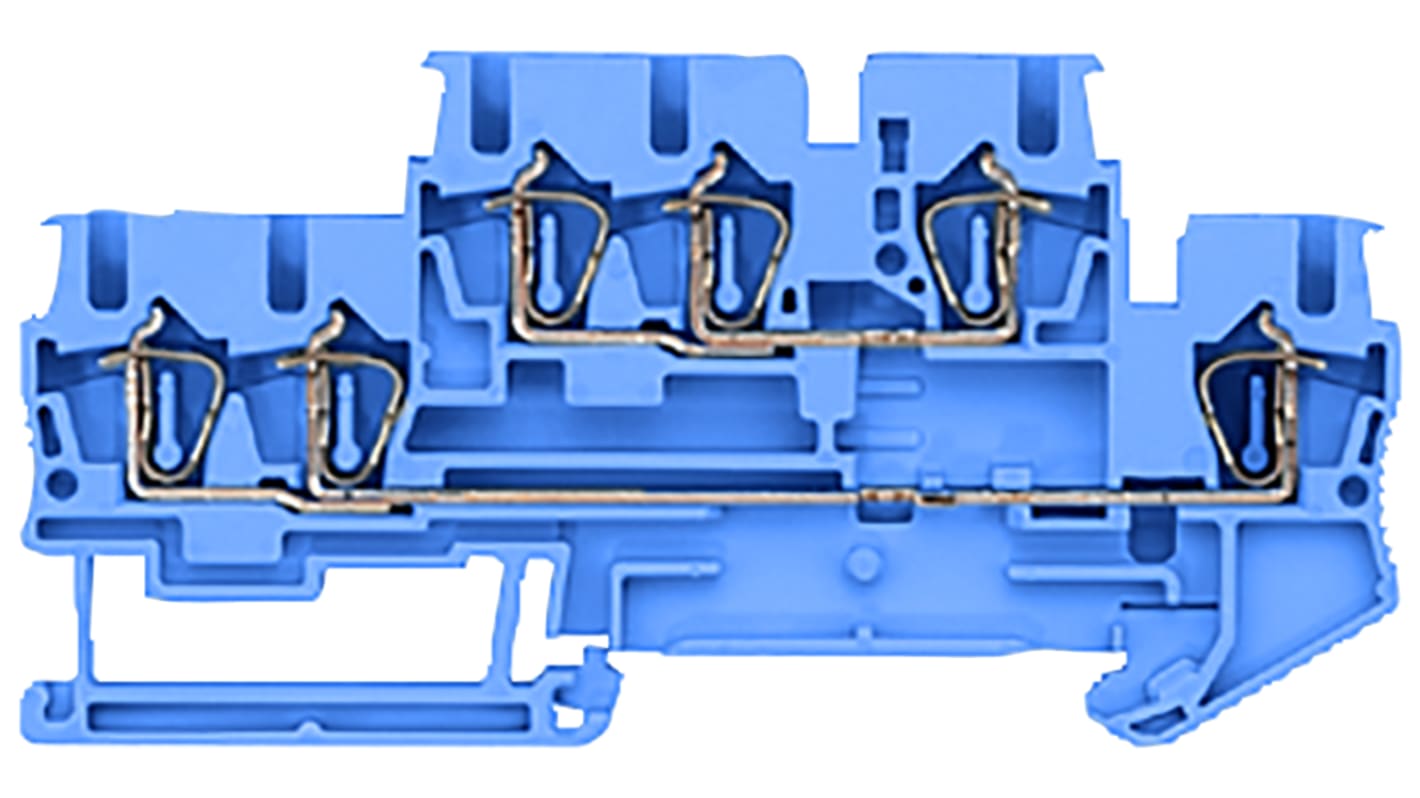

Siemens 8WH Series Blue Din Rail Terminal, 2.5mm², 2-Level, Spring Termination
- RS Stock No.:
- 271-3308
- Mfr. Part No.:
- 8WH2023-0AF01
- Brand:
- Siemens
Available to back order for despatch 15/08/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each (In a Pack of 50)
£4.68
(exc. VAT)
£5.62
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.68 | £234.00 |
*price indicative
- RS Stock No.:
- 271-3308
- Mfr. Part No.:
- 8WH2023-0AF01
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
The Siemens Terminal Block is a green and blue colour with spring loaded terminal DIN rail terminal block. This terminal block offers two tier terminal for mounting on mounting rail acc. to IEC 60715 with top side position of terminal. This terminal block
3 clamping points
TH35 DIN rail mounting
End cover plate is required
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
TH35 DIN rail mounting
End cover plate is required
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
Specifications
Attribute | Value |
|---|---|
| Colour | Blue |
| Number of Levels | 2 |
| American Wire Gauge | 14AWG |
| Series | 8WH |
| Termination Method | Spring |
| Cable CSA | 2.5mm² |
| Fused | No |
| Voltage Rating | 500 V |
