Siemens 8WH2003-5CF00 8WH Series Grey, 2.5mm², 1-Level, Spring Termination, CSA
- RS Stock No.:
- 271-3295
- Mfr. Part No.:
- 8WH2003-5CF00
- Brand:
- Siemens
Subtotal (1 pack of 50 units)*
£315.10
(exc. VAT)
£378.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £6.302 | £315.10 |
*price indicative
- RS Stock No.:
- 271-3295
- Mfr. Part No.:
- 8WH2003-5CF00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Colour | Grey | |
Number of Levels | 1 | |
American Wire Gauge | 14AWG | |
Series | 8WH | |
Termination Method | Spring | |
Cable CSA | 2.5mm² | |
Fused | No | |
Voltage Rating | 800 V | |
Hazardous Area Certification | CSA | |
Select all | ||
---|---|---|
Brand Siemens | ||
Colour Grey | ||
Number of Levels 1 | ||
American Wire Gauge 14AWG | ||
Series 8WH | ||
Termination Method Spring | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Voltage Rating 800 V | ||
Hazardous Area Certification CSA | ||
- COO (Country of Origin):
- PL

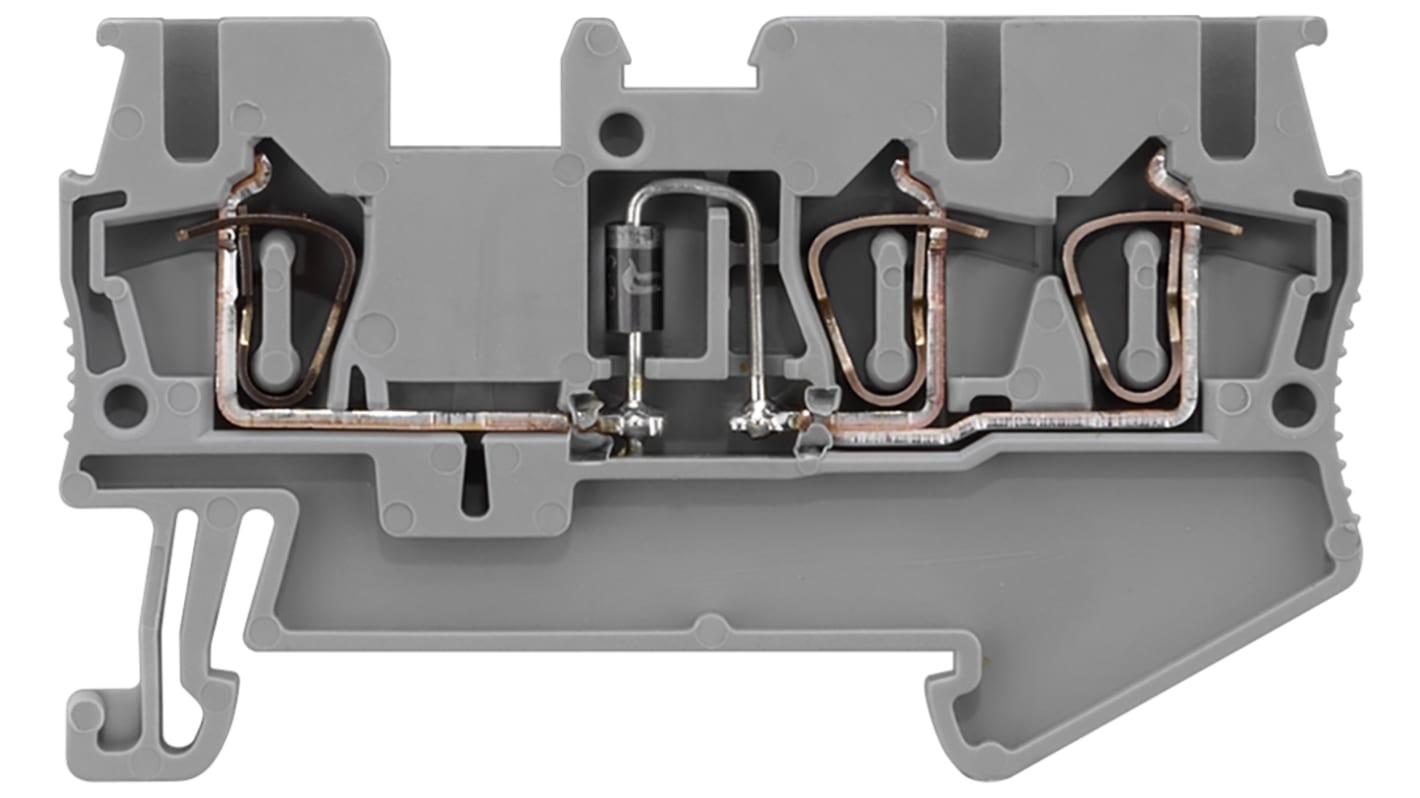

The Siemens Terminal Block is a grey colour spring loaded terminal with 3 clamping points DIN rail terminal block. This terminal block has 800 volt operating rated voltage and terminal 5.5 mm contact spacing with top side position of terminal. This termin
TH35 DIN rail mounting
End cover plate is required
Available with diode terminal
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
End cover plate is required
Available with diode terminal
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
