Siemens 8WH1000-6LG00 8WH Series DIN Rail Terminal Grey, 4 mm², 1-Level, Screw, CSA
- RS Stock No.:
- 271-3252
- Mfr. Part No.:
- 8WH1000-6LG00
- Brand:
- Siemens
Subtotal (1 pack of 50 units)*
£366.15
(exc. VAT)
£439.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £7.323 | £366.15 |
*price indicative
- RS Stock No.:
- 271-3252
- Mfr. Part No.:
- 8WH1000-6LG00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Colour | Grey | |
| Product Type | DIN Rail Terminal | |
| Sub Type | Terminal Block | |
| Number of Levels | 1 | |
| Voltage | 800 V | |
| Series | 8WH | |
| Cable CSA | 4 mm² | |
| Fused | No | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Screw | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | CSA | |
| Standards/Approvals | EAC, CSA, CE | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Colour Grey | ||
Product Type DIN Rail Terminal | ||
Sub Type Terminal Block | ||
Number of Levels 1 | ||
Voltage 800 V | ||
Series 8WH | ||
Cable CSA 4 mm² | ||
Fused No | ||
Minimum Operating Temperature -60°C | ||
Termination Type Screw | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification CSA | ||
Standards/Approvals EAC, CSA, CE | ||
- COO (Country of Origin):
- PL

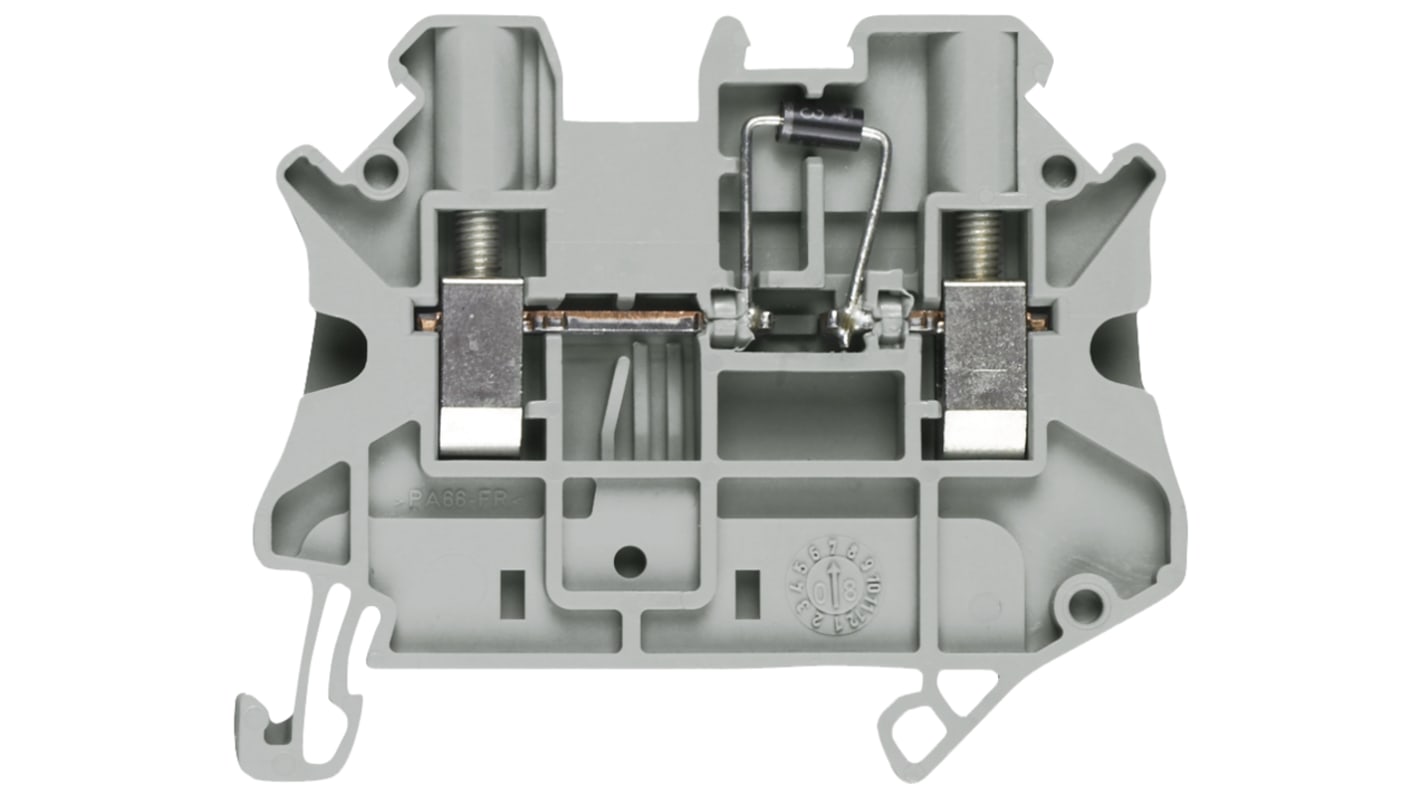

The Siemens Terminal Block is a grey colour DIN rail terminal block. This terminal block has 800 volt operating rated voltage and 0.5 A operating rated current. The terminal contact spacing is 6 mm with side position. This terminal block has 57.8 mm heigh
TH35 DIN rail mounting
Isolating terminal with diode
CSA UR EAC and CE approved
V0 combustibility class according to UL 94
