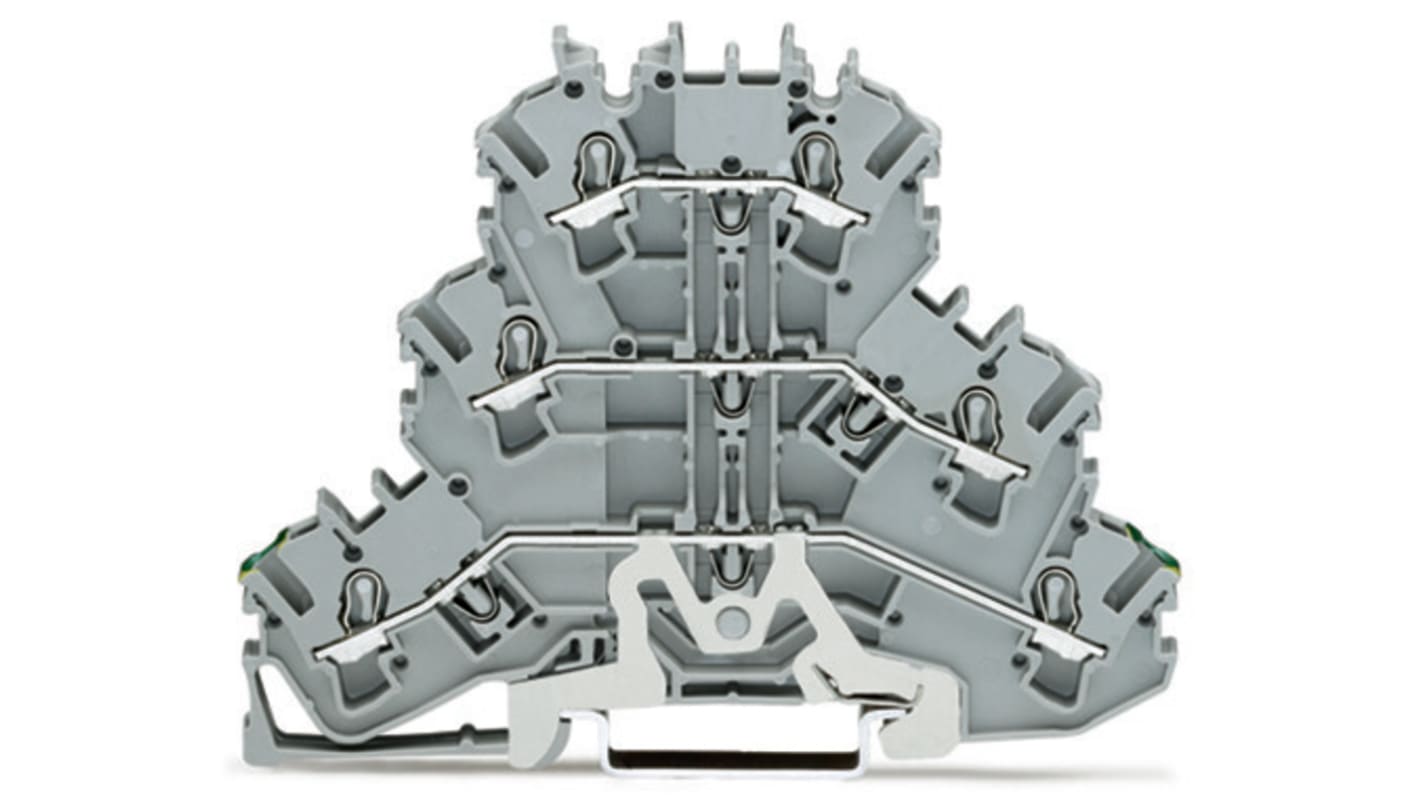

WAGO 2002-3227 TOPJOB S, 2002 Series Grey, 2.5mm², Triple-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 253-2939
- Mfr. Part No.:
- 2002-3227
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£246.44
(exc. VAT)
£295.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £246.44 | £4.929 |
*price indicative
- RS Stock No.:
- 253-2939
- Mfr. Part No.:
- 2002-3227
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Grey | |
| Number of Levels | Triple | |
| American Wire Gauge | 22 → 12AWG | |
| Series | TOPJOB S, 2002 | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | No | |
| Current Rating | 24A | |
| Hazardous Area Certification | ATEX, IECEx | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Grey | ||
Number of Levels Triple | ||
American Wire Gauge 22 → 12AWG | ||
Series TOPJOB S, 2002 | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Current Rating 24A | ||
Hazardous Area Certification ATEX, IECEx | ||
- COO (Country of Origin):
- DE
The WAGO 20 series is a rail mount terminal block with nominal voltage of 500V, rated impulse voltage of 6kV and rated current of 24A.
Connection technology push-in cage clamp
Number of connection points 3
Actuation type operating tool
Number of connection points 3
Actuation type operating tool
