Name: Phoenix Contact 0311126 URTK/SP Series Grey, 0.5 → 10mm², 1-Level, Screw Termination
Brand: Phoenix Contact
SKU: 248-2121
Price: 9.94 GBP
Availability: InStock

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Colour	Grey
	Number of Levels	1
	Voltage Rating	500 V
	American Wire Gauge	20 → 8AWG
	Series	URTK/SP
	Termination Method	Screw
	Cable CSA	0.5 → 10mm²
	Current Rating	41A
	Minimum Operating Temperature	-60°C
	Maximum Operating Temperature	+110°C
	Standards Met	IEC 60947-7-1
	Model Number	URTK/SP

	Select all
	Brand Phoenix Contact
	Colour Grey
	Number of Levels 1
	Voltage Rating 500 V
	American Wire Gauge 20 → 8AWG
	Series URTK/SP
	Termination Method Screw
	Cable CSA 0.5 → 10mm²
	Current Rating 41A
	Minimum Operating Temperature -60°C
	Maximum Operating Temperature +110°C
	Standards Met IEC 60947-7-1
	Model Number URTK/SP

COO (Country of Origin):: TR

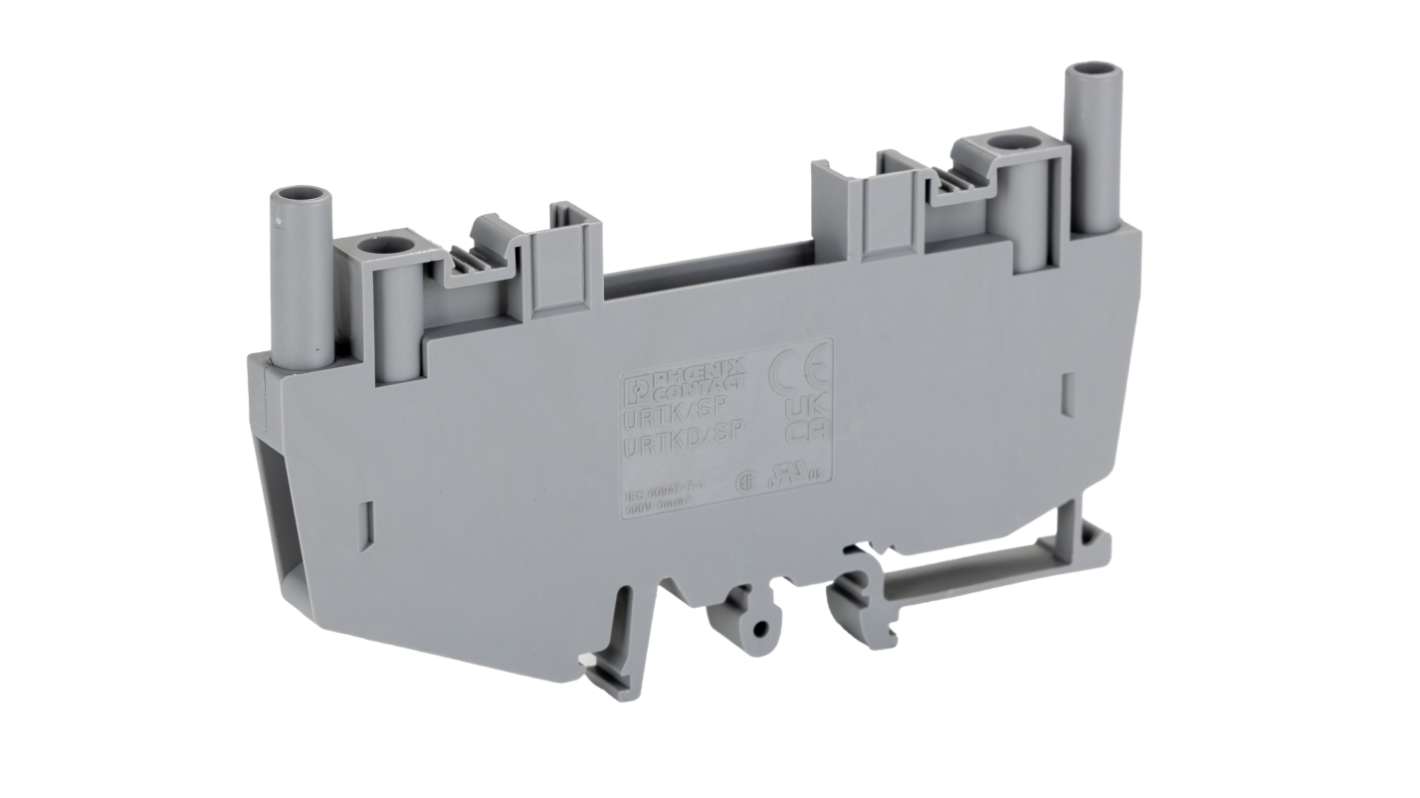

Phoenix Contact URTK/SP Series Test Disconnect Terminal Block, 41A Current Rating, 500V Voltage Rating - 0311126

This test disconnect terminal block is designed for secure and efficient wiring connections, accommodating wire sizes from 20AWG to 8AWG. It features a nominal voltage rating of 500V and can handle a current of 41A. With a maximum operating temperature of +110°C and a minimum of -60°C, this device is suitable for harsh conditions, making it applicable for industrial use.

Features & Benefits

• Integrated touch-proof test sockets improve safety
• Dual connection option enhances installation flexibility
• Screw connection type provides secure fastening
• Complies with IEC 60947-7-1 standards
• Compact dimensions facilitate installation in tight spaces
• Capable of supporting high current applications

Applications

• Ideal for precise testing within electrical systems
• Suitable for automation and control circuits
• Designed for use in harsh environmental conditions
• Utilised in rail transport and industrial machinery

Can it accommodate different wire sizes?

Yes, it supports conductors from 0.5mm² to 10mm².

Is it suitable for outdoor use?

The operating temperature range accommodates various settings.

Will it maintain performance under high temperatures?

It operates effectively at temperatures up to 110°C without loss of functionality.

Can it handle high surge voltages?

Yes, it is rated for a surge voltage of 6kV.

Phoenix Contact 0311126 URTK/SP Series Grey, 0.5 → 10mm², 1-Level, Screw Termination
