WAGO 280-684 280 Series Feed Through Terminal Block Blue, 2.5mm², 1-Level, Cage Clamp, ATEX, IECEx
- RS Stock No.:
- 247-5875
- Mfr. Part No.:
- 280-684
- Brand:
- WAGO
Subtotal (1 pack of 100 units)*
£122.20
(exc. VAT)
£146.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 29 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £1.222 | £122.20 |
*price indicative
- RS Stock No.:
- 247-5875
- Mfr. Part No.:
- 280-684
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Blue | |
| Product Type | Feed Through Terminal Block | |
| Number of Levels | 1 | |
| Series | 280 | |
| Voltage | 800V | |
| Minimum Wire Size AWG | 28AWG | |
| Cable CSA | 2.5mm² | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Termination Type | Cage Clamp | |
| Hazardous Area Certification | ATEX, IECEx | |
| Standards/Approvals | CSA, UR, CCA | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Blue | ||
Product Type Feed Through Terminal Block | ||
Number of Levels 1 | ||
Series 280 | ||
Voltage 800V | ||
Minimum Wire Size AWG 28AWG | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Termination Type Cage Clamp | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards/Approvals CSA, UR, CCA | ||

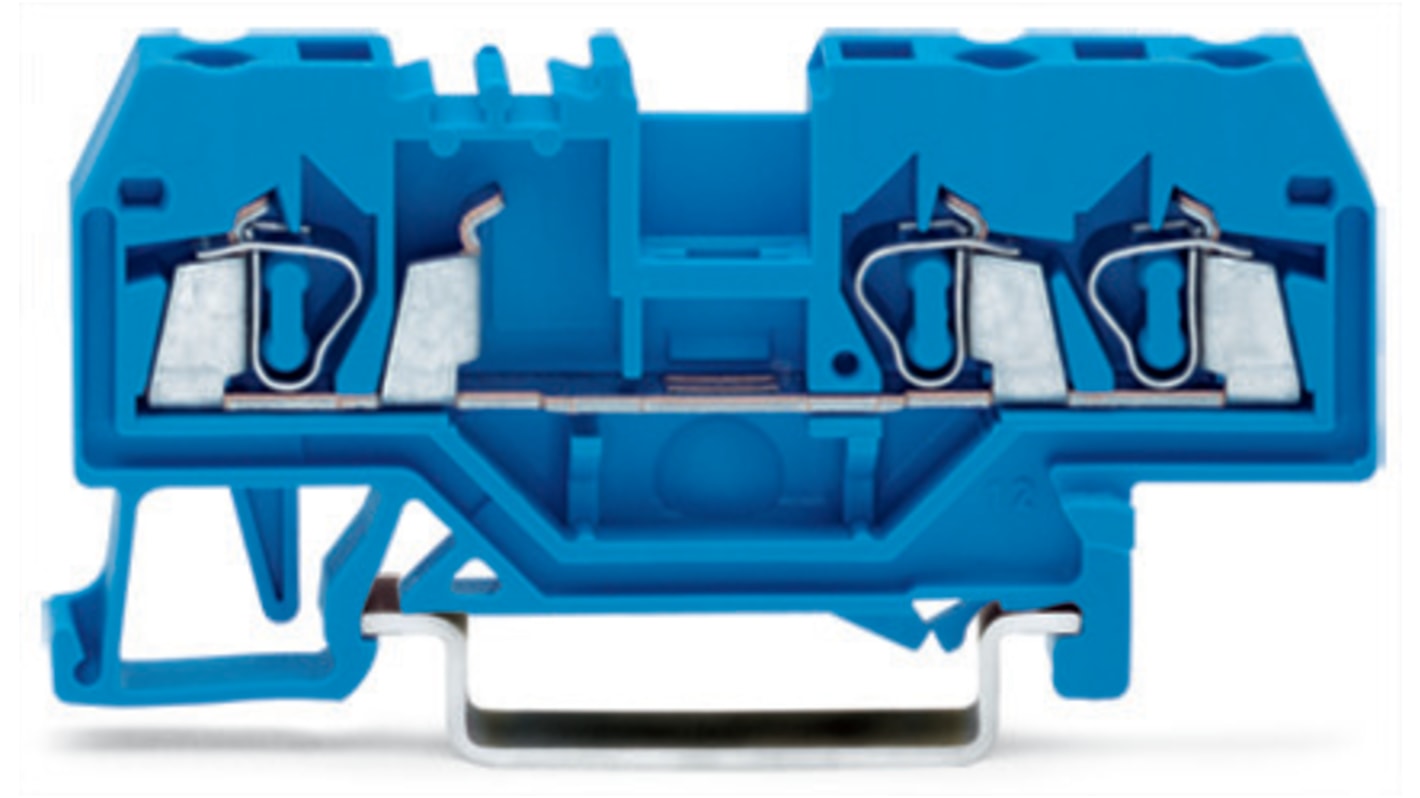

The WAGO 3-conductor through terminal block and nominal cross section of 2.5 mm², suitable for EX I applications.
3-conductor through terminal block
Nominal cross section of 2.5 mm²
Center marking
For din-rail 35 x 15 and 35 x 7.5
Push-in cage clamp
Blue color
