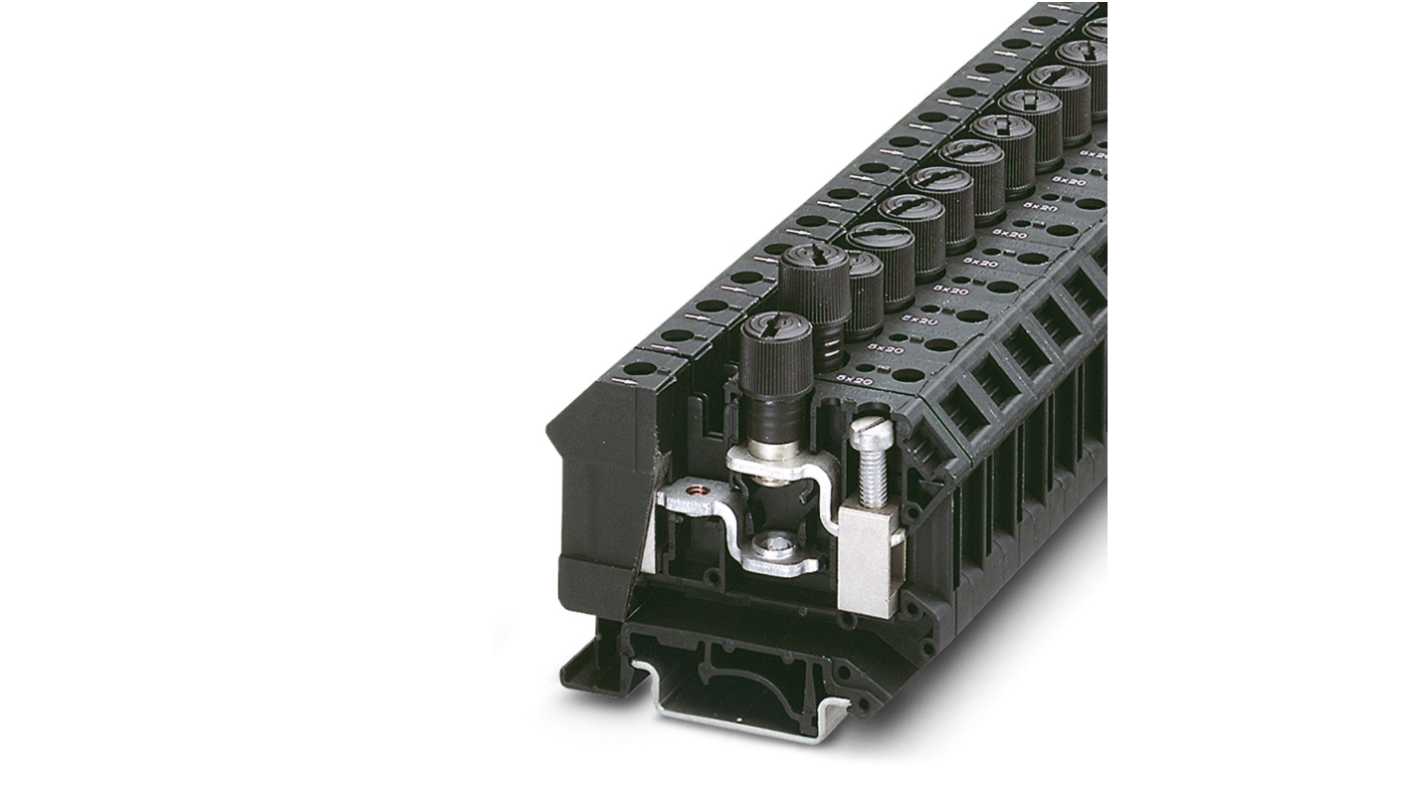

Phoenix Contact 3005507 3X32), UK 10-DREHSI (6 Series Black, 16mm², Screw Termination

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 50 units)*

£463.10

(exc. VAT)

£555.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +£9.262£463.10

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
241-6146
Mfr. Part No.:
3005507
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Black

Series

3X32), UK 10-DREHSI (6

Voltage Rating

400 V

Termination Method

Screw

Cable CSA

16mm²

COO (Country of Origin):
PL

Phoenix Contact, Fused DIN Rail Terminals


The Phoenix Contact UK-5-HESI series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto DIN rail, the range is easily interchanged and therefore offers you greater flexibility with the part.

Features and Benefits


• Large-surface labeling

• Safety lever locked in end position

• Hinged disconnect lever

• Flip-open compartment to accommodate a fuse

• Options to accommodate 5x20mm and 6.3x32mm fuses

• Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm)

Typical Applications


• Protecting critical sensor or relay equipment

Note

Parameters in tech. spec. table are with respect to UL and CSA Approvals. With UL approval these products have a nominal rating of 10A @ 600V; with CSA approval they have a nominal rating of 25A @ 600V

Approvals

UL recognised component, CSA certified
The Phoenix Contact's fuse modular terminal block has ceramic, glass fuse type. It has screw connection with rated cross section of 1.5 mm².

Number of rows 1
Number of connections 2
Width 12 mm
Length 62 mm
Colour black
