Phoenix Contact 3209031 STIO 2.5 Series Grey, 0.08 → 4mm², Spring Cage Termination
- RS Stock No.:
- 225-2882
- Mfr. Part No.:
- 3209031
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£335.85
(exc. VAT)
£403.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,950 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £6.717 | £335.85 |
*price indicative
- RS Stock No.:
- 225-2882
- Mfr. Part No.:
- 3209031
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Grey | |
| Voltage Rating | 24 V | |
| Series | STIO 2.5 | |
| American Wire Gauge | 28 → 12AWG | |
| Termination Method | Spring Cage | |
| Cable CSA | 0.08 → 4mm² | |
| Fused | No | |
| Current Rating | 18A | |
| Model Number | STIO 2,5/3-2B/L-LA24GN/O-M | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Voltage Rating 24 V | ||
Series STIO 2.5 | ||
American Wire Gauge 28 → 12AWG | ||
Termination Method Spring Cage | ||
Cable CSA 0.08 → 4mm² | ||
Fused No | ||
Current Rating 18A | ||
Model Number STIO 2,5/3-2B/L-LA24GN/O-M | ||
- COO (Country of Origin):
- TR

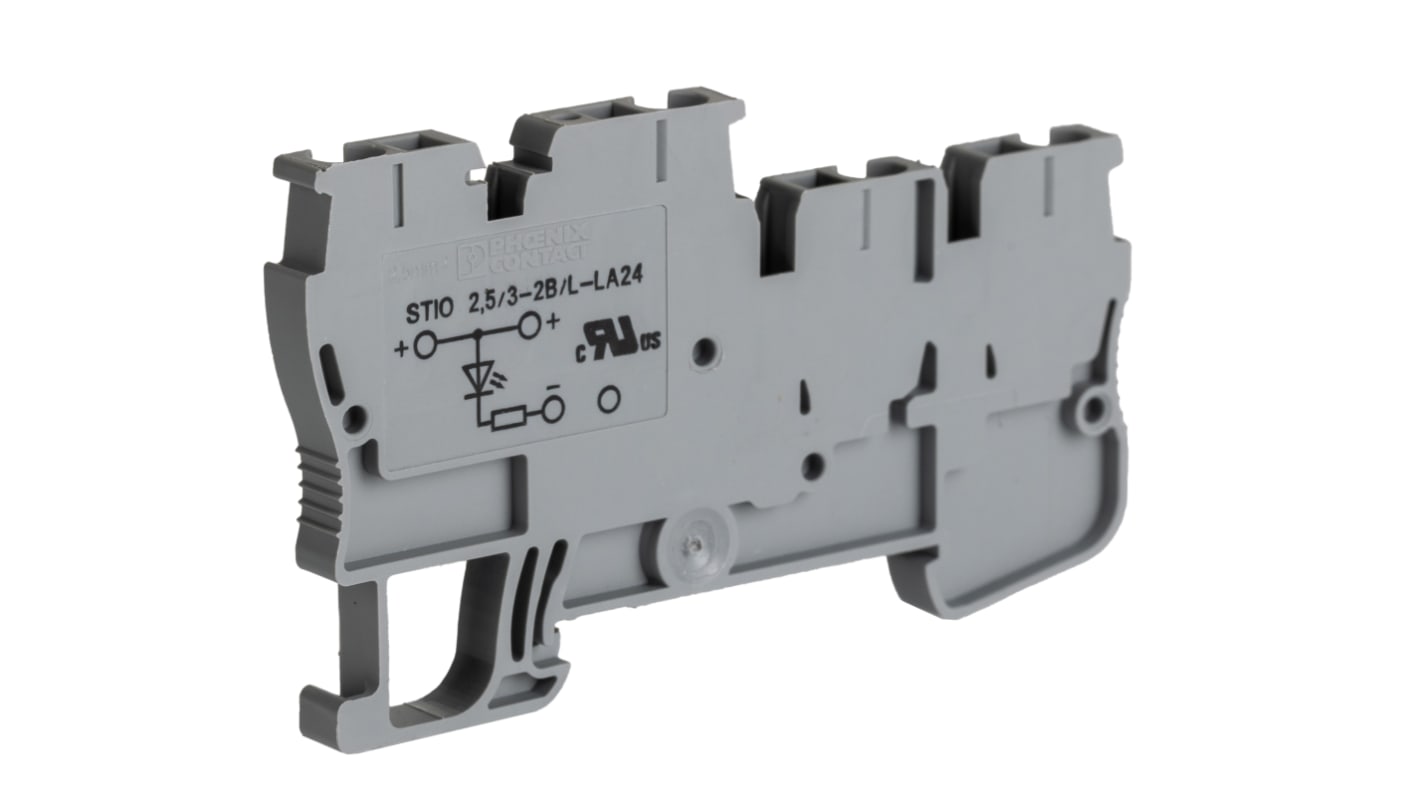

Phoenix Contact STIO 2.5 Series DIN Rail Terminal Block, 18A - 3209031
This DIN rail terminal block provides efficient electrical connection solutions for automation and control applications. Constructed for durability and temperature resistance, it meets a range of industrial specifications. Its compact design optimises space in electrical installations, while the single level setup allows for straightforward wiring arrangements for actuators and sensors.
Features & Benefits
• Supports up to 18A for effective electrical performance
• Utilises a spring cage termination method for secure connections
• Compact design conserves space in enclosures
• Multiple connections enhance wiring flexibility
• Suitable for high temperature environments up to 110°C
• Utilises a spring cage termination method for secure connections
• Compact design conserves space in enclosures
• Multiple connections enhance wiring flexibility
• Suitable for high temperature environments up to 110°C
Applications
• Can be used for wiring actuators in automation systems
• Employed in control panels for signal distribution
• Employed in control panels for signal distribution
What type of connections can be made?
It accommodates both rigid and flexible conductors within specified ranges.
Is it suitable for outdoor use?
Proper enclosure is recommended to protect against moisture.
How does the spring cage termination benefit installation?
This method enables quick, secure connections, reducing installation time.
Can multiple units be mounted on the same rail?
Yes, the compact design allows for easy side-by-side mounting.
