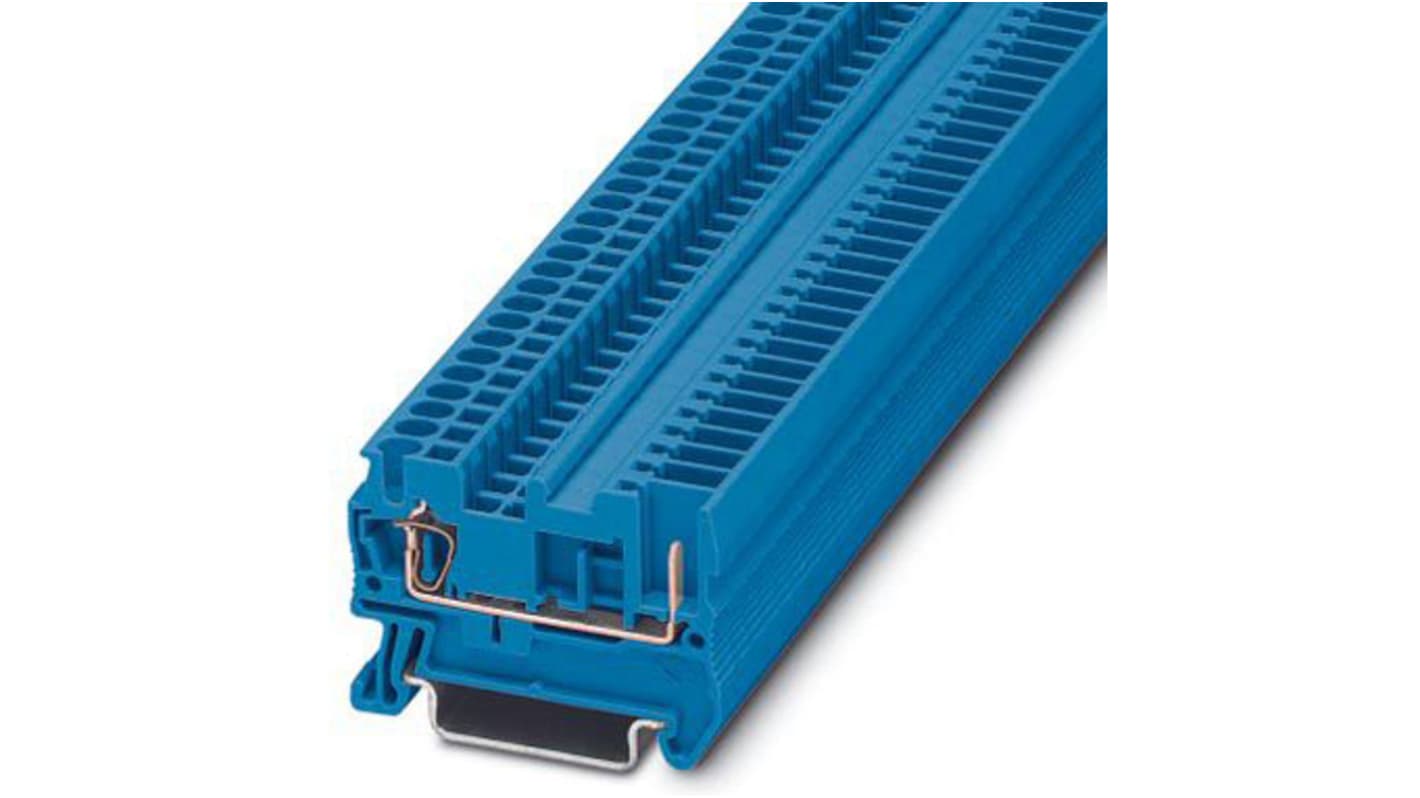

Phoenix Contact 3040656 Feed Through Terminal Block Blue, 0.08mm², 4 mm², 1-Level, Spring Cage
- RS Stock No.:
- 224-9907
- Mfr. Part No.:
- 3040656
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£41.55
(exc. VAT)
£49.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.831 | £41.55 |
*price indicative
- RS Stock No.:
- 224-9907
- Mfr. Part No.:
- 3040656
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Blue | |
| Product Type | Feed Through Terminal Block | |
| Sub Type | Plug-In | |
| Number of Levels | 1 | |
| Voltage | 500V | |
| Minimum Wire Size AWG | 28AWG | |
| Cable CSA | 0.08, 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Terminal Block Current | 24A | |
| Termination Type | Spring Cage | |
| Minimum Operating Temperature | -60°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | VDE, UL, RS, LR, IECEE CB, IEC 61984, EAC, DNV GL, cULus, cUL, CSA, Bureau Veritas | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Blue | ||
Product Type Feed Through Terminal Block | ||
Sub Type Plug-In | ||
Number of Levels 1 | ||
Voltage 500V | ||
Minimum Wire Size AWG 28AWG | ||
Cable CSA 0.08, 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Terminal Block Current 24A | ||
Termination Type Spring Cage | ||
Minimum Operating Temperature -60°C | ||
Hazardous Area Certification No | ||
Standards/Approvals VDE, UL, RS, LR, IECEE CB, IEC 61984, EAC, DNV GL, cULus, cUL, CSA, Bureau Veritas | ||
- COO (Country of Origin):
- DE
The Phoenix Feed-through terminal block with 2 numbers of connections has plug-in and spring cage connection method. It is made up of the PA material and available in blue colour.
The plug-in ST-COMBI spring-cage terminal block series combines the system advantages of the ST standard terminal block series with those of the COMBI plug-in system
Tested for railway applications
Degree of pollution 3
Overvoltage category III
