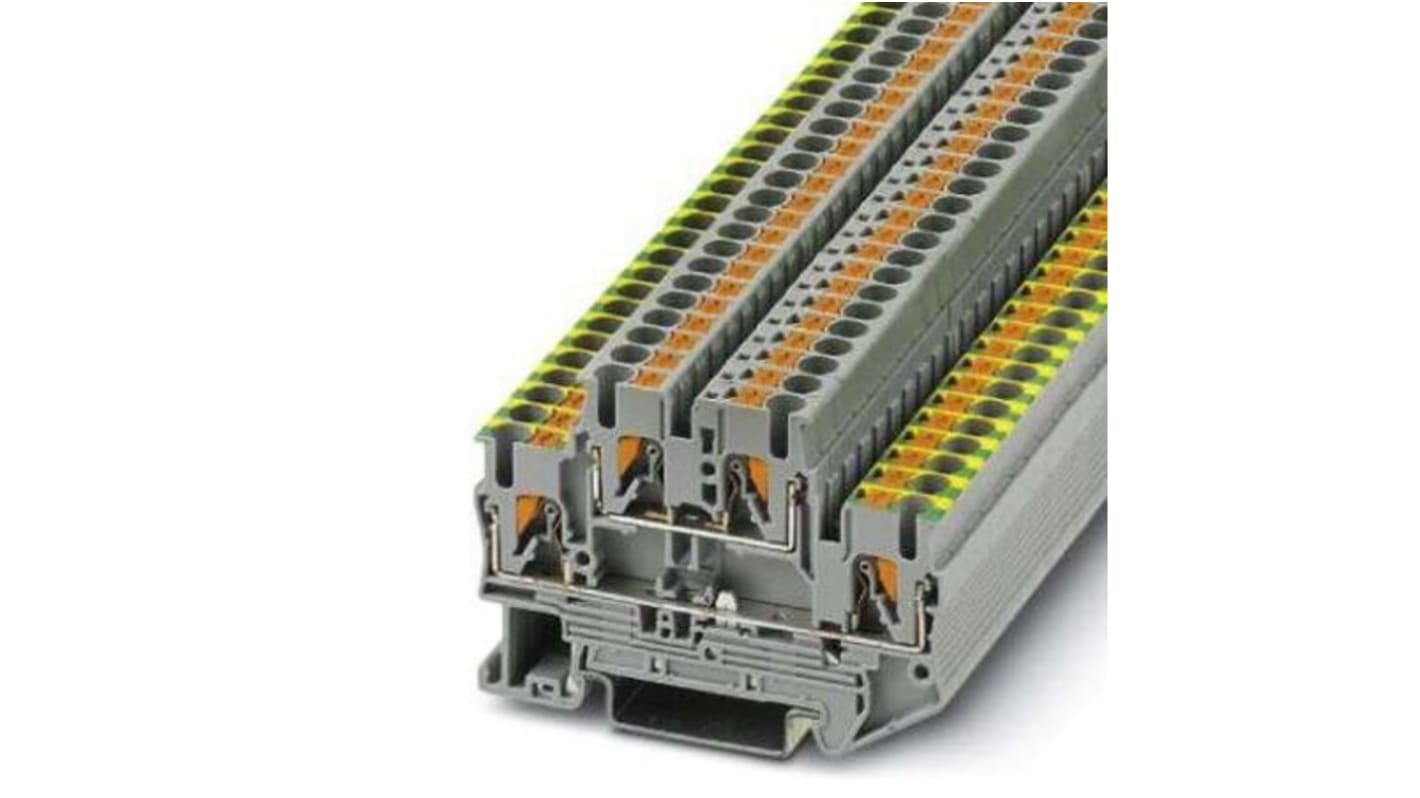

Phoenix Contact 3210978 PTTB 2.5-PE/L Series Multi Level Terminal Block Grey, 0.14mm², 4 mm², 2-Level, Push-in
- RS Stock No.:
- 213-0249
- Mfr. Part No.:
- 3210978
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£206.05
(exc. VAT)
£247.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.121 | £206.05 |
*price indicative
- RS Stock No.:
- 213-0249
- Mfr. Part No.:
- 3210978
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Multi Level Terminal Block | |
| Colour | Grey | |
| Number of Levels | 2 | |
| Voltage | 500V | |
| Series | PTTB 2.5-PE/L | |
| Cable CSA | 0.14, 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Fused | No | |
| Maximum Wire Size AWG | 12AWG | |
| Termination Type | Push-in | |
| Terminal Block Current | 30A | |
| Minimum Operating Temperature | -60°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | ABS, Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IEC 60947-7-2, LR, NK, UL | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Multi Level Terminal Block | ||
Colour Grey | ||
Number of Levels 2 | ||
Voltage 500V | ||
Series PTTB 2.5-PE/L | ||
Cable CSA 0.14, 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Fused No | ||
Maximum Wire Size AWG 12AWG | ||
Termination Type Push-in | ||
Terminal Block Current 30A | ||
Minimum Operating Temperature -60°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals ABS, Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IEC 60947-7-2, LR, NK, UL | ||
- COO (Country of Origin):
- CN
The Phoenix Protective conductor double-level terminal block has push-in connection.
cross section: 0.14 mm² - 4 mm²
AWG: 26 - 12
width: 5.2 mm
colour: grey
mounting type: NS 35/7,5, NS 35/15
