Phoenix Contact 3035522 STTBS 4-MT BU Series Blue, 0.08 → 6mm²
- RS Stock No.:
- 213-0214
- Mfr. Part No.:
- 3035522
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 213-0214
- Mfr. Part No.:
- 3035522
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Blue | |
| Series | STTBS 4-MT BU | |
| American Wire Gauge | 10 → 28AWG | |
| Voltage Rating | 500 V | |
| Cable CSA | 0.08 → 6mm² | |
| Fused | No | |
| Current Rating | 34A | |
| Model Number | STTBS 4-MT BU | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Blue | ||
Series STTBS 4-MT BU | ||
American Wire Gauge 10 → 28AWG | ||
Voltage Rating 500 V | ||
Cable CSA 0.08 → 6mm² | ||
Fused No | ||
Current Rating 34A | ||
Model Number STTBS 4-MT BU | ||
- COO (Country of Origin):
- CN

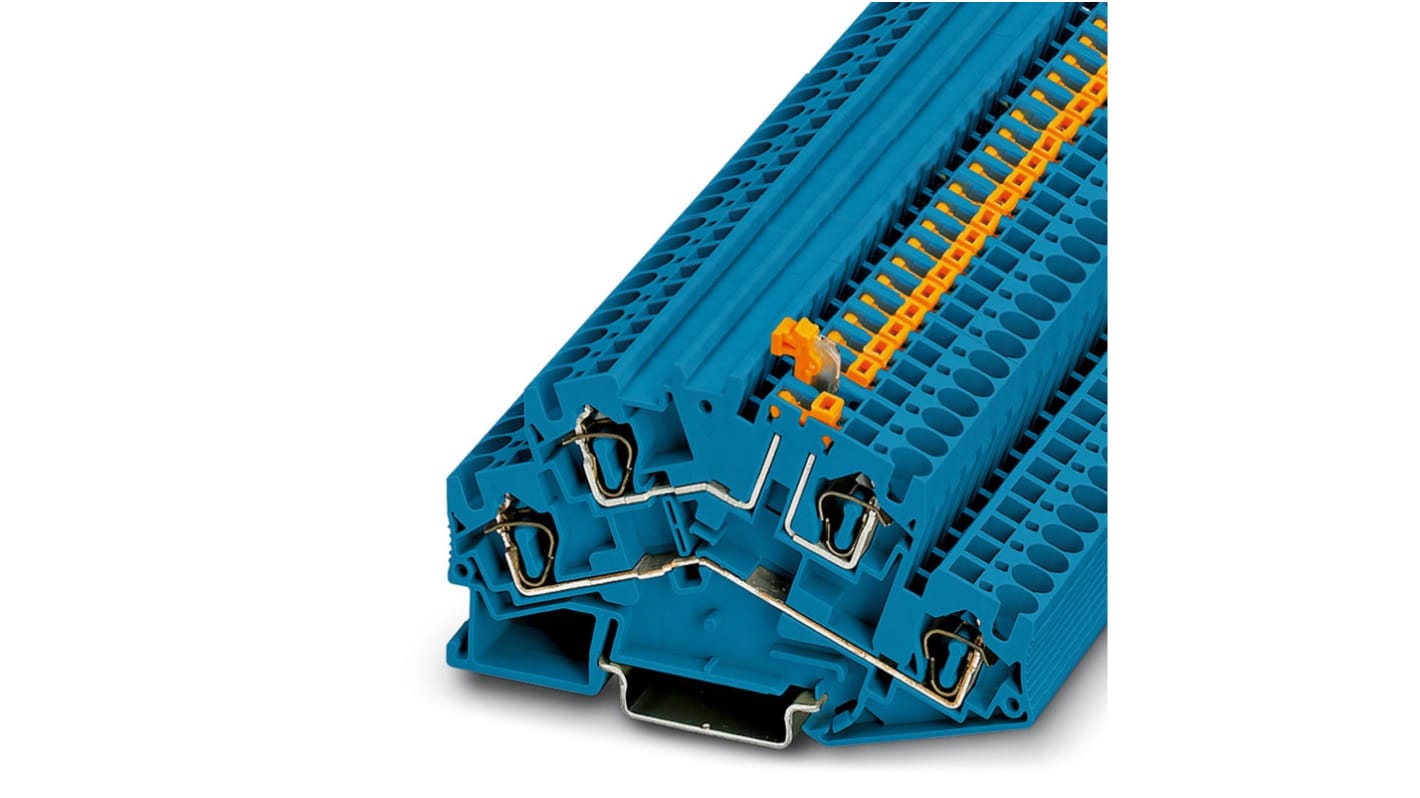

The Phoenix Knife disconnect terminal block with connection method spring-cage.
cross section: 0.08 mm² - 6 mm²
AWG: 28 - 10
width: 6.2 mm
colour: blue
mounting type: NS 35/7,5, NS 35/15
AWG: 28 - 10
width: 6.2 mm
colour: blue
mounting type: NS 35/7,5, NS 35/15
