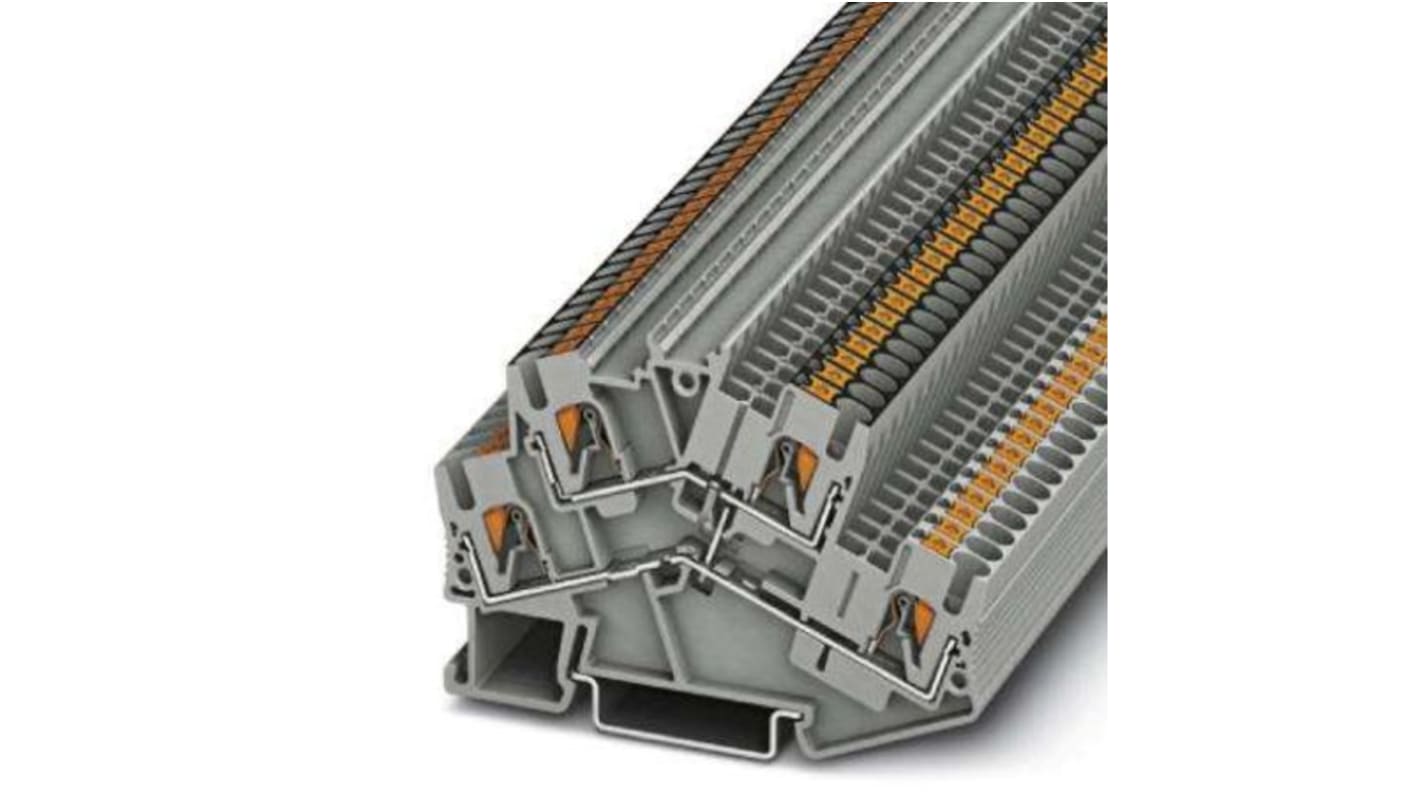

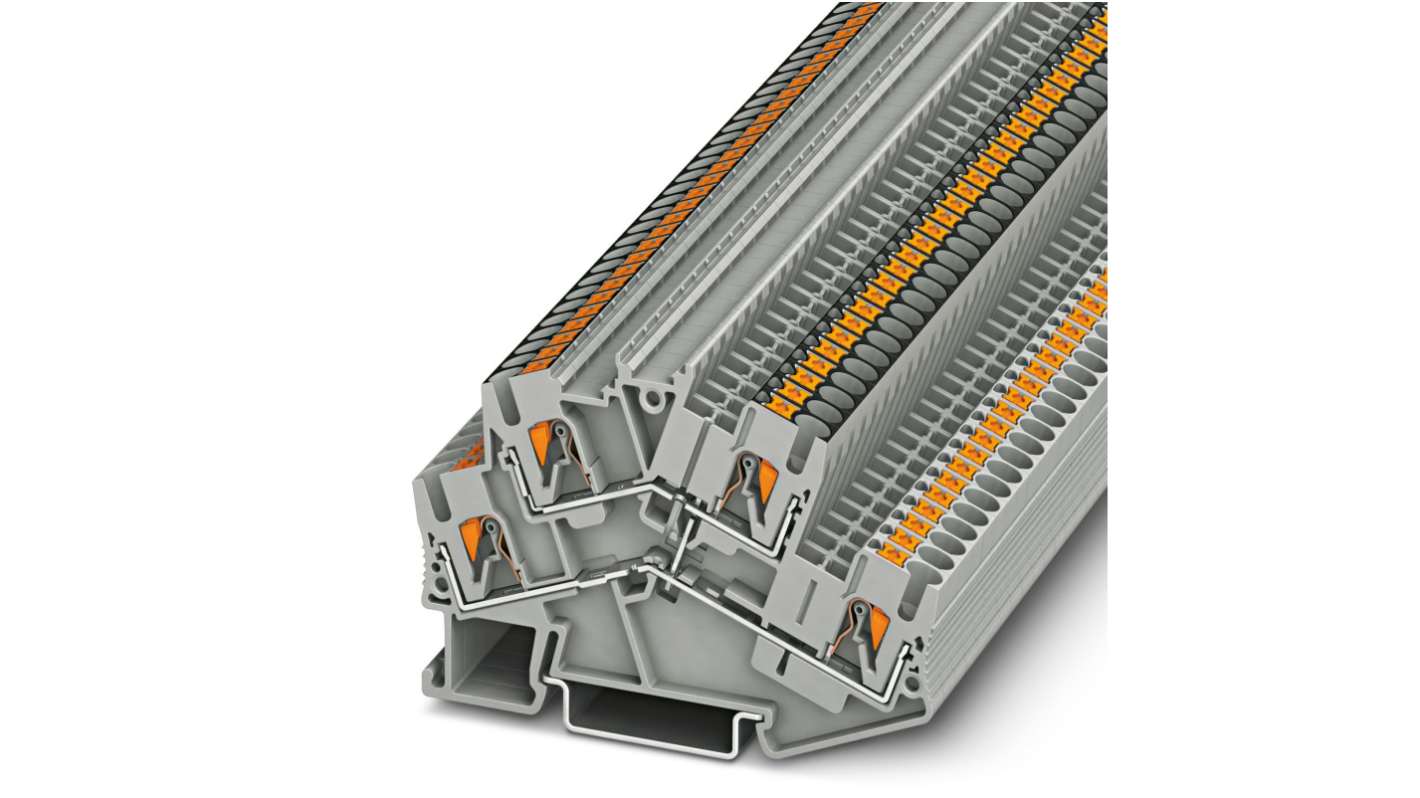

Phoenix Contact 3210211 PTTBS 2.5-PV Series Double Level Terminal Block Grey, 0.14mm², 4 mm², 2-Level, Push-in,
- RS Stock No.:
- 207-3719
- Distrelec Article No.:
- 304-32-355
- Mfr. Part No.:
- 3210211
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£237.85
(exc. VAT)
£285.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 150 unit(s) ready to ship
- Plus 100 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.757 | £237.85 |
*price indicative
- RS Stock No.:
- 207-3719
- Distrelec Article No.:
- 304-32-355
- Mfr. Part No.:
- 3210211
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Double Level Terminal Block | |
| Colour | Grey | |
| Sub Type | Multi-Level | |
| Number of Levels | 2 | |
| Voltage | 500V | |
| Series | PTTBS 2.5-PV | |
| Minimum Wire Size AWG | 26AWG | |
| Cable CSA | 0.14, 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Terminal Block Current | 26A | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX | |
| Standards/Approvals | IECEE CB, VDE, UL, RS, NK, ABS, ATEX, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IECEX | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Double Level Terminal Block | ||
Colour Grey | ||
Sub Type Multi-Level | ||
Number of Levels 2 | ||
Voltage 500V | ||
Series PTTBS 2.5-PV | ||
Minimum Wire Size AWG 26AWG | ||
Cable CSA 0.14, 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Terminal Block Current 26A | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX | ||
Standards/Approvals IECEE CB, VDE, UL, RS, NK, ABS, ATEX, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IECEX | ||
- COO (Country of Origin):
- CN
The Phoenix double-level terminal block with equipotential bonder. It has connection method push-in connection
Push-in connection
cross section: 0.14 mm² - 4 mm²
AWG: 26 - 12
width: 5.2 mm
colour: grey
mounting type: NS 35/7,5, NS 35/15
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
