Phoenix Contact 1078960 PTV Series Grey, 0.14 → 2.5mm², Single-Level, Push In Termination, ATEX, IECEx

View all DIN Rail Terminal Blocks

Subtotal (1 pack of 10 units)*

£8.87

(exc. VAT)

£10.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 340 unit(s) shipping from 27 October 2025
  • Plus 1,210 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.887£8.87

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
188-1739
Mfr. Part No.:
1078960
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Grey

Number of Levels

Single

Series

PTV

American Wire Gauge

26 → 12 AWG, 26 → 14AWG

Voltage Rating

800 V

Termination Method

Push In

Cable CSA

0.14 → 2.5 mm², 0.14 → 4mm²

Current Rating

28A

Minimum Operating Temperature

-60°C

Maximum Operating Temperature

+105°C

Hazardous Area Certification

ATEX, IECEx

Standards Met

IEC 60947-7-1

Model Number

PTV 2,5

COO (Country of Origin):
CN

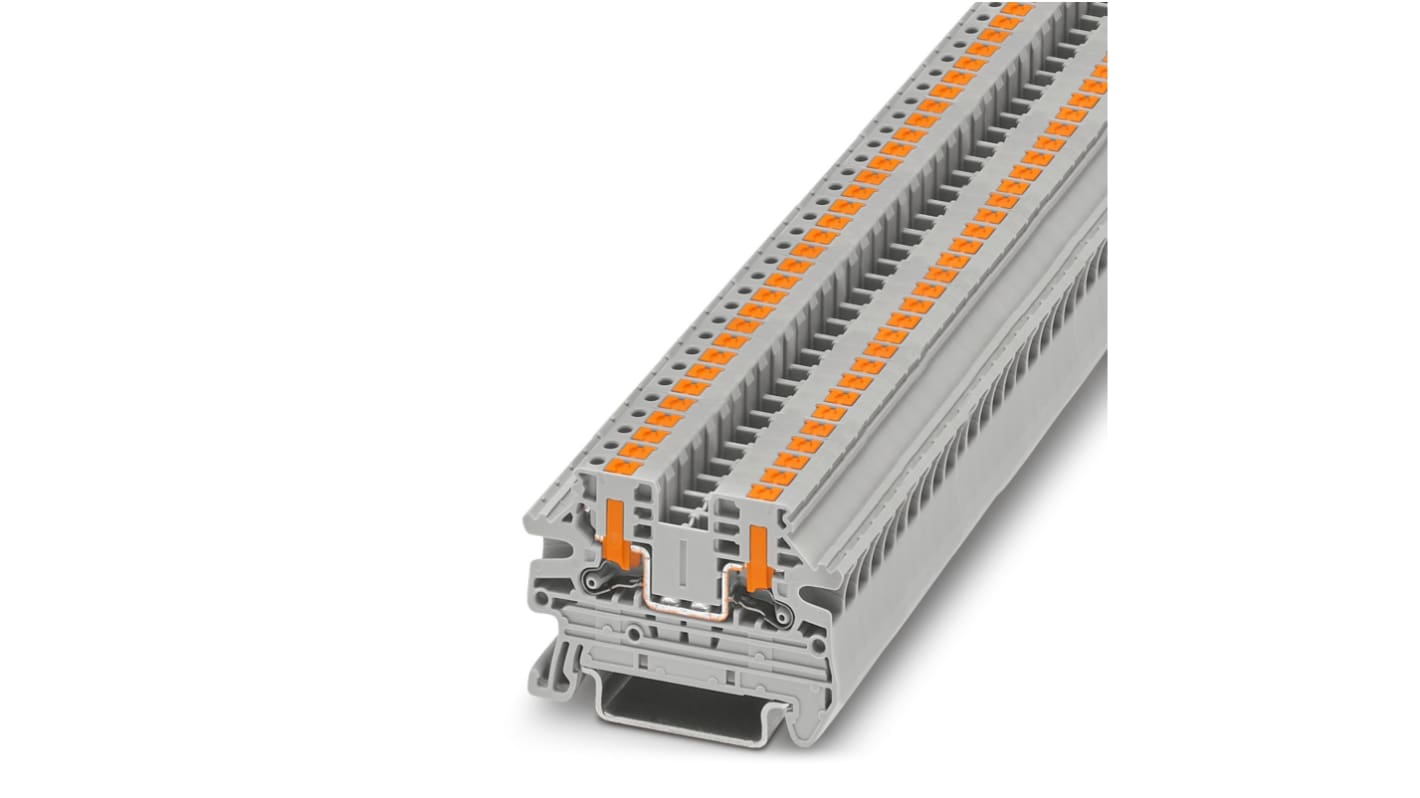

Phoenix Contact Grey PTV Feed-Through Terminal Block - PTV 2.5 - 1078960


This terminal block from Phoenix Contact's RTV series features lateral conductor routing. This means you can arrange your wiring clearly without needing to bend the wires, making your connections easier to identify and mark up.
Thanks to the unit's push-in connection technology you can build systems easily, without the need for tools to make or release connections. The device's high-quality hard-faced copper contacts are designed to ensure maximum conductivity for optimal data transfer.
The feed-through terminal block's housing is made from tough and durable PA (polyamide), which has a flammability rating of V0. This means the material will burn for no more than 10 seconds and won't give off flaming drips. Terminal blocks of this kind are commonly used in the transport, machine-building and plant engineering sectors.

• Current rating of 28 A
• 1 level
• Voltage rating of 800 V
• Wire size of 26 to 12 AWG (American wire gauge) and 26 to 14 AWG
• Cable size of 0.14 to 2.5 mm², 0.14 to 4 mm²
• Rated surge voltage of 8 kV

Note

The PTV series of terminal blocks feature vertical cable insertion. This lateral cable orientation also prevents the cable from bending.
