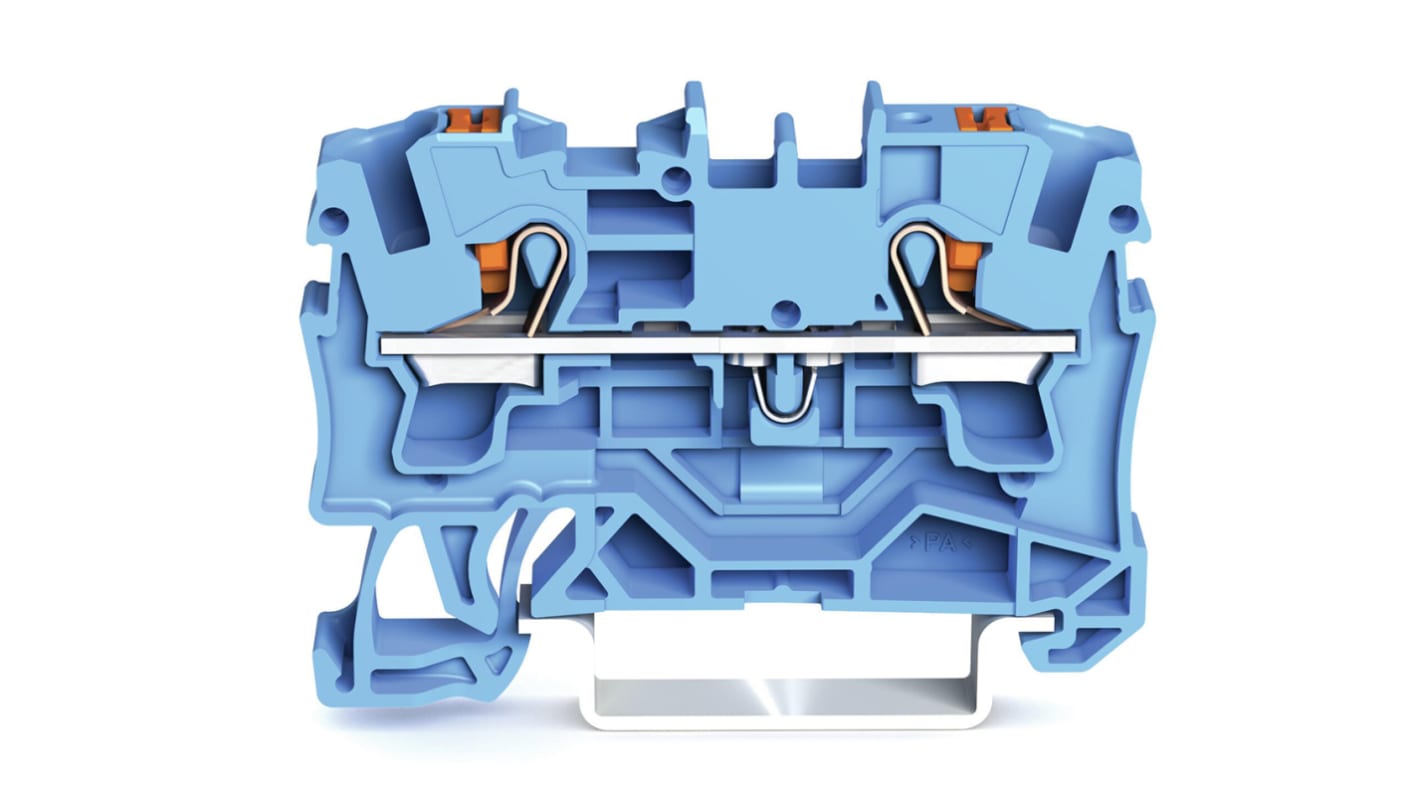

WAGO 2204-1204 TOPJOB S, 2204 Series Blue, 4mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 184-9820
- Mfr. Part No.:
- 2204-1204
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£48.00
(exc. VAT)
£57.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £48.00 | £0.96 |
*price indicative
- RS Stock No.:
- 184-9820
- Mfr. Part No.:
- 2204-1204
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Blue | |
| Number of Levels | Single | |
| American Wire Gauge | 20 → 10AWG | |
| Series | TOPJOB S, 2204 | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 4mm² | |
| Fused | No | |
| Voltage Rating | 800 V | |
| Current Rating | 32A | |
| Pitch | 6.2mm | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +105°C | |
| Hazardous Area Certification | ATEX, IECEx | |
| Standards Met | CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Blue | ||
Number of Levels Single | ||
American Wire Gauge 20 → 10AWG | ||
Series TOPJOB S, 2204 | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 4mm² | ||
Fused No | ||
Voltage Rating 800 V | ||
Current Rating 32A | ||
Pitch 6.2mm | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +105°C | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards Met CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR | ||
- COO (Country of Origin):
- DE
2-Conductor through terminal block, with push-button, 4 mm², with test port, suitable for Ex i applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 4,00 mm², blue
