WAGO 2202-1404 TOPJOB S, 2202 Series Blue, 2.5mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx
- RS Stock No.:
- 184-9817
- Mfr. Part No.:
- 2202-1404
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£131.30
(exc. VAT)
£157.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £131.30 | £1.313 |
*price indicative
- RS Stock No.:
- 184-9817
- Mfr. Part No.:
- 2202-1404
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Blue | |
| Number of Levels | Single | |
| Voltage Rating | 800 V | |
| American Wire Gauge | 22 → 12AWG | |
| Series | TOPJOB S, 2202 | |
| Termination Method | Push-In Cage Clamp | |
| Cable CSA | 2.5mm² | |
| Fused | No | |
| Current Rating | 24A | |
| Pitch | 5.2mm | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +105°C | |
| Hazardous Area Certification | ATEX, IECEx | |
| Standards Met | CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Blue | ||
Number of Levels Single | ||
Voltage Rating 800 V | ||
American Wire Gauge 22 → 12AWG | ||
Series TOPJOB S, 2202 | ||
Termination Method Push-In Cage Clamp | ||
Cable CSA 2.5mm² | ||
Fused No | ||
Current Rating 24A | ||
Pitch 5.2mm | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +105°C | ||
Hazardous Area Certification ATEX, IECEx | ||
Standards Met CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR | ||
- COO (Country of Origin):
- DE

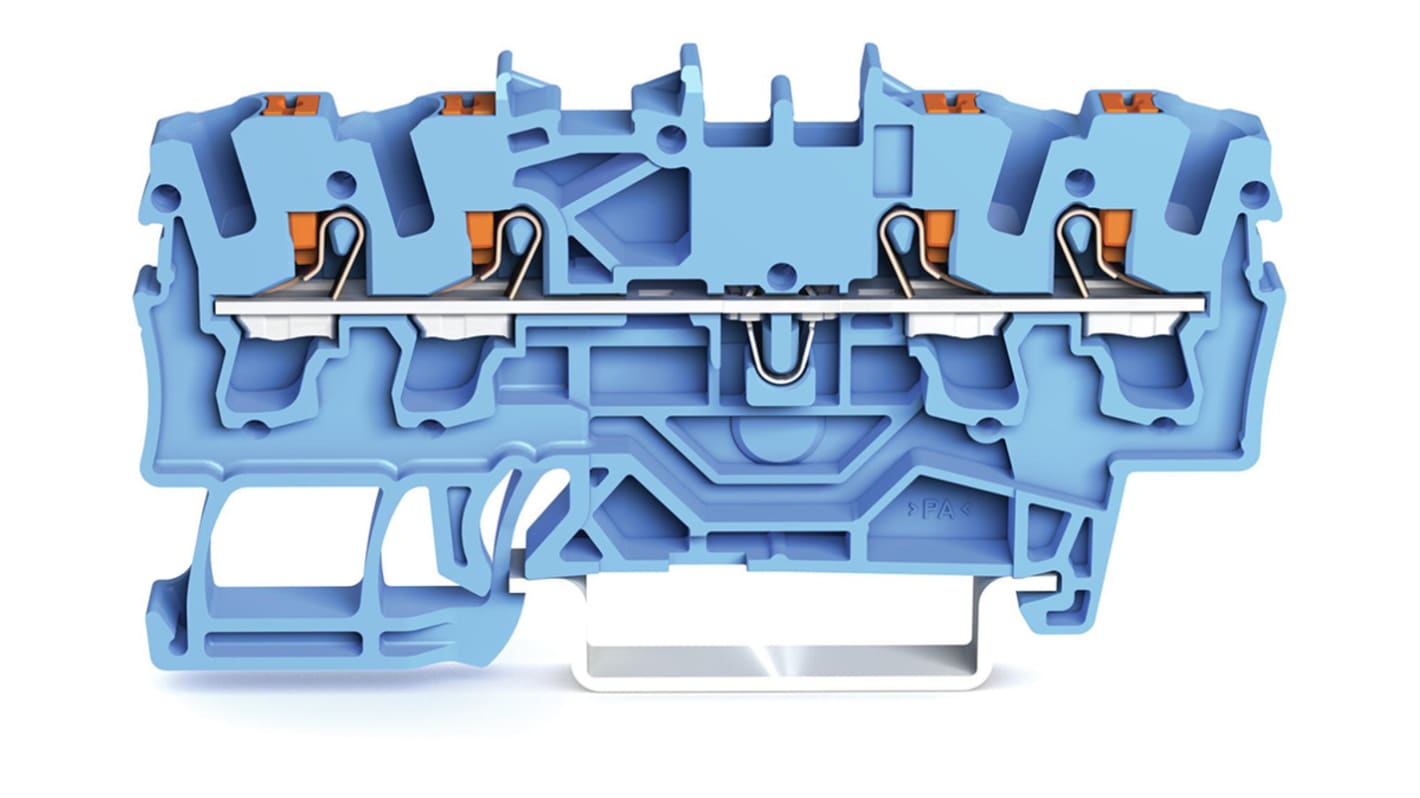

4-Conductor through terminal block, with push-button, 2.5 mm², with test port, suitable for Ex i applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2,50 mm², blue
